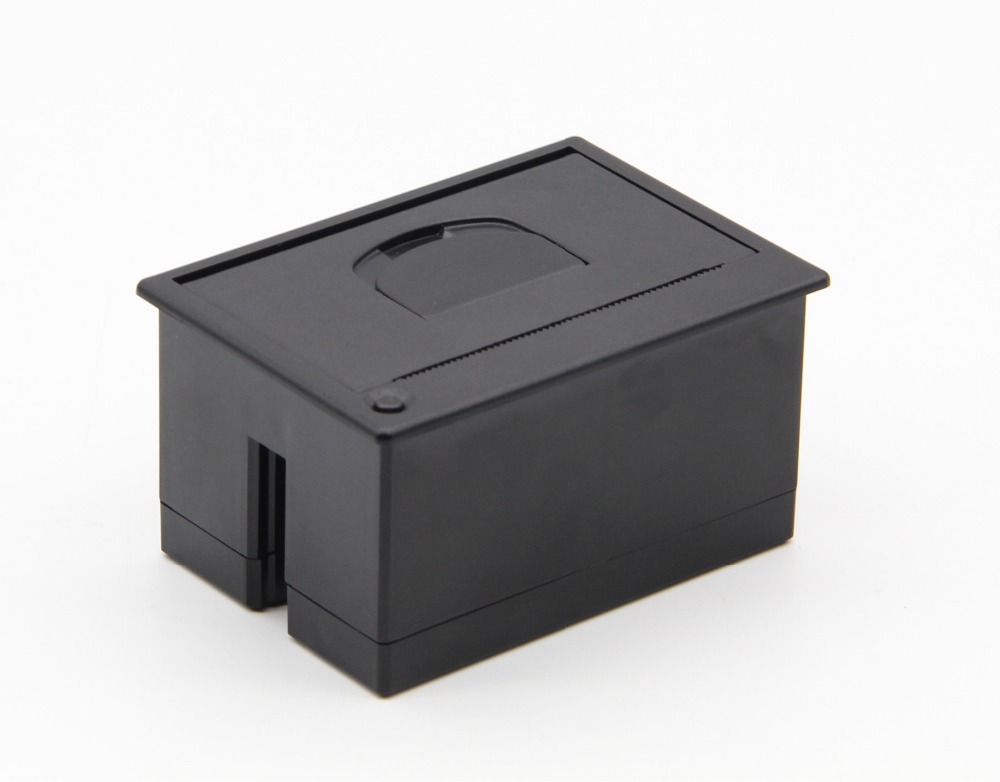

JP QR204 58mm Micro Embedded Receipt Thermal Printer RS232 / TTL + USB Panel (Black)
Please sign in so that we can notify you about a reply
Main Features:
● Beautiful appearance with mini shape, practical and convenient
● Easy paper structure and replace the paper body from front panel, easy for operation
● Low noise thermal printing, do not brother the others, creating quiet environment
● Optional different interface
● Easily embedded in a variety of different instruments
● Supports ESC / POS print instruction set
Specifications:
● Printing method: Thermal
● Resolution: 8 dots / mm , 384 dots / line
● Effective print width: 48mm
● Character set: ASCII, GB2312-80 ( Chinese )
● Print fonts: ANK: 5 x 7, Chinese: 12 x 24, 24 x 24
● Paper type: Thermal paper
● Paper width: 57.5 +/- 0.5mm
● Roll diameter: 30mm ( max )
● Reliability: Mean Cycle Between Failure ( MCBF ) 500 million lines
● Interface: Serial ( RS-232, TTL ), parallel
● Embed depth: 43mm
● Power supply ( Adapter ): DC 5V - 9V
● Installation port size: 77 x 53mm
● Operating temperature: 5 Deg.C - 50 Deg.C
● Humidity: 10 percent to 80 percent
● Storage temperature: -20 Deg.C - 60 Deg.C
● Storage humidity: 10 percent to 90 percent
● Easy paper structure and replace the paper body from front panel, easy for operation
● Low noise thermal printing, do not brother the others, creating quiet environment
● Optional different interface
● Easily embedded in a variety of different instruments
● Supports ESC / POS print instruction set
Specifications:
● Printing method: Thermal
● Resolution: 8 dots / mm , 384 dots / line
● Effective print width: 48mm
● Character set: ASCII, GB2312-80 ( Chinese )
● Print fonts: ANK: 5 x 7, Chinese: 12 x 24, 24 x 24
● Paper type: Thermal paper
● Paper width: 57.5 +/- 0.5mm
● Roll diameter: 30mm ( max )
● Reliability: Mean Cycle Between Failure ( MCBF ) 500 million lines
● Interface: Serial ( RS-232, TTL ), parallel
● Embed depth: 43mm
● Power supply ( Adapter ): DC 5V - 9V
● Installation port size: 77 x 53mm
● Operating temperature: 5 Deg.C - 50 Deg.C
● Humidity: 10 percent to 80 percent
● Storage temperature: -20 Deg.C - 60 Deg.C
● Storage humidity: 10 percent to 90 percent
Print speed: 50 - 85mm / s
Package weight: 0.179 kg
Product size: 8.20 x 5.80 x 4.40 cm / 3.23 x 2.28 x 1.73 inches
Package size: 9.00 x 6.50 x 5.00 cm / 3.54 x 2.56 x 1.97 inches
Product size: 8.20 x 5.80 x 4.40 cm / 3.23 x 2.28 x 1.73 inches
Package size: 9.00 x 6.50 x 5.00 cm / 3.54 x 2.56 x 1.97 inches
Packing Contents: 1 x 58mm Micro Embedded Receipt Thermal Printer, 1 x Bag of Installtion Accessory
