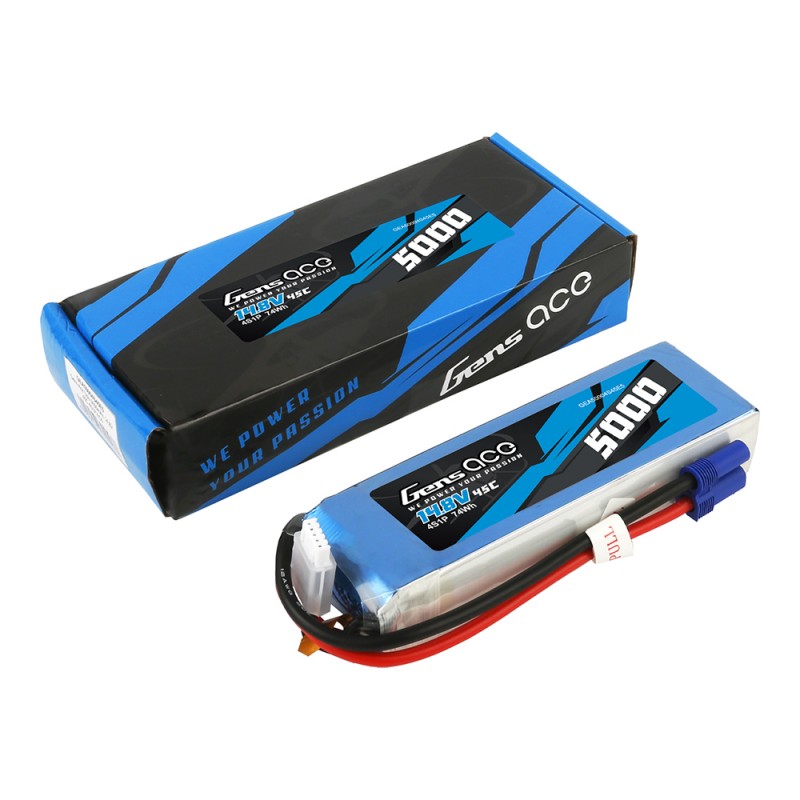

Gens ace5000mAh 14.8V 45C 4S1P Lipo Battery Pack
Gens ace lipo 5000mAh 4S1P 45C lipo battery pack has Remarkable stacking technology which enables single cell capacities of 5000mAh. With High discharge performance and high energy density, GensAce batteries provide high quality, reliable power for MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV etc.
Gens ace5000mAh 14.8V 45C 4S1P Lipo Battery Pack Specs:
- Capacity:5000mAh
- Voltage: 14.8V (4s)
- Max Continuous Discharge: 45C
- Max Burst Discharge: 90C
- Weight: 550g
- Dimensions: 160*45*34mm
- Charge Rate: 1-3C Recommended, 5C Max
Gens ace5000mAh 14.8V 45C 4S1P Lipo Battery Pack Usage:
Gens ace lipo 5000mAh 4S1P 45C lipo battery pack suited for MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV etc.
SKU | B-45C-5000-4S1P |
---|---|
Net Weight (g) | 550 |
Brand | Gens ace |
Capacity | 5000 mAh |
Discharge Rate (C) | 45 |
Max Cont Current (A) | 225 |
Max Burst Current (A) | 450 |
Max Burst discharge Rate (C) | 90 |
Parallel (P) | 1 |
Voltage | 4S (14.8V) |
Length (mm) | 160 |
Width (mm) | 45 |
Thickness(mm) | 34 |
Wire Gauge | 12# |
Wire Length (C/D) | 50mm / 100mm |
Connector Type | EC5 |
Balancer Connector Type | JST-XH |
