Gravity: DC Fan Module

INTRODUCTION

Make an air aerial propeller vessel, a cooling system, or spinning machine with this small fan module. It comes with a propeller, a 15,000 rpm motor and cable. Add flavor to your own interesting projects with this module.

This module is commonly used for STEM class.

SPECIFICATION

· Working Voltage：3~6V

· Working Temperature：-20~85℃

· Speed (no load)：15000 rpm

· Speed (6V)：8000 rpm

· Current (6V)：40mA

· Stall current (6V)：360mA

· Torque (6V):0.111kg/cm

· Size: 36*27*13 mm(1.42*1.06*0.51")

· Weight: 22g

DOCUMENTS

· Wiki Doc

· Schematic

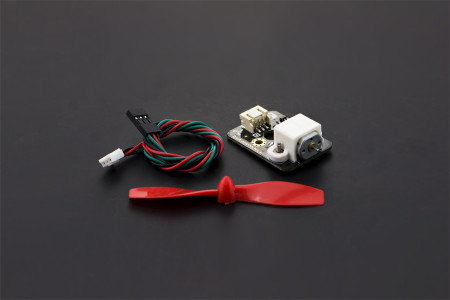

SHIPPING LIST

· Fan module x1

· Airscrew x1

· Digital cable x1
