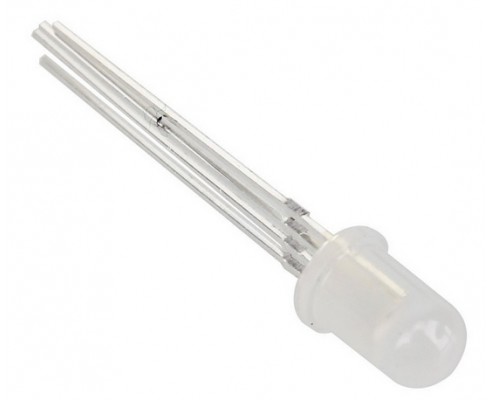

RGB Diffused Common Cathode 5mm LED
Ultra-Bright 5mm 4 PIN Diffused Common Cathode RGB Red/Green/Blue LED
6000-8000 mcd
Size: 5mm
Emitted Colour : Red / Green / Blue
Pins sequence: RED/Common Cathode/Green/Blue
Lens Color : Diffused
Luminous Intensity: 4000/8000/5000mcd
Forward Voltage (V) : 2.1~3.4
View Angle: About 25 degree.
Forward | Dominant | LuMen(LM) | Reverse | Power | ||||
If=20mA | If=20mA | If=20mA | Vr=5V | |||||
Min | Typ | Min | Typ | Min | Typ | Max | ||
Red | 2.1 | 2.4 | 620 | 630 | 3000 | 4000 | 10 | 20-25 |
Green | 3.0 | 3.4 | 520 | 530 | 6000 | 8000 | 10 | 20-25 |
Blue | 3.0 | 3.4 | 460 | 465 | 4000 | 5000 | 10 | 20-25 |
Please test to add current limiting resistor, it will be very easy to
burn out the LED resistance of a few hundred to 1000ohm can
R: wavelength 630-640nm Brightness 1000-1200mcd Voltage 1.8-2.0V
G: wavelength 515-512nm Brightness 3000-5000mcd Voltage 3.2-3.4V
B: wavelength 465-475nm Brightness 2000-3000mcd Voltage 3.2-3.4V
