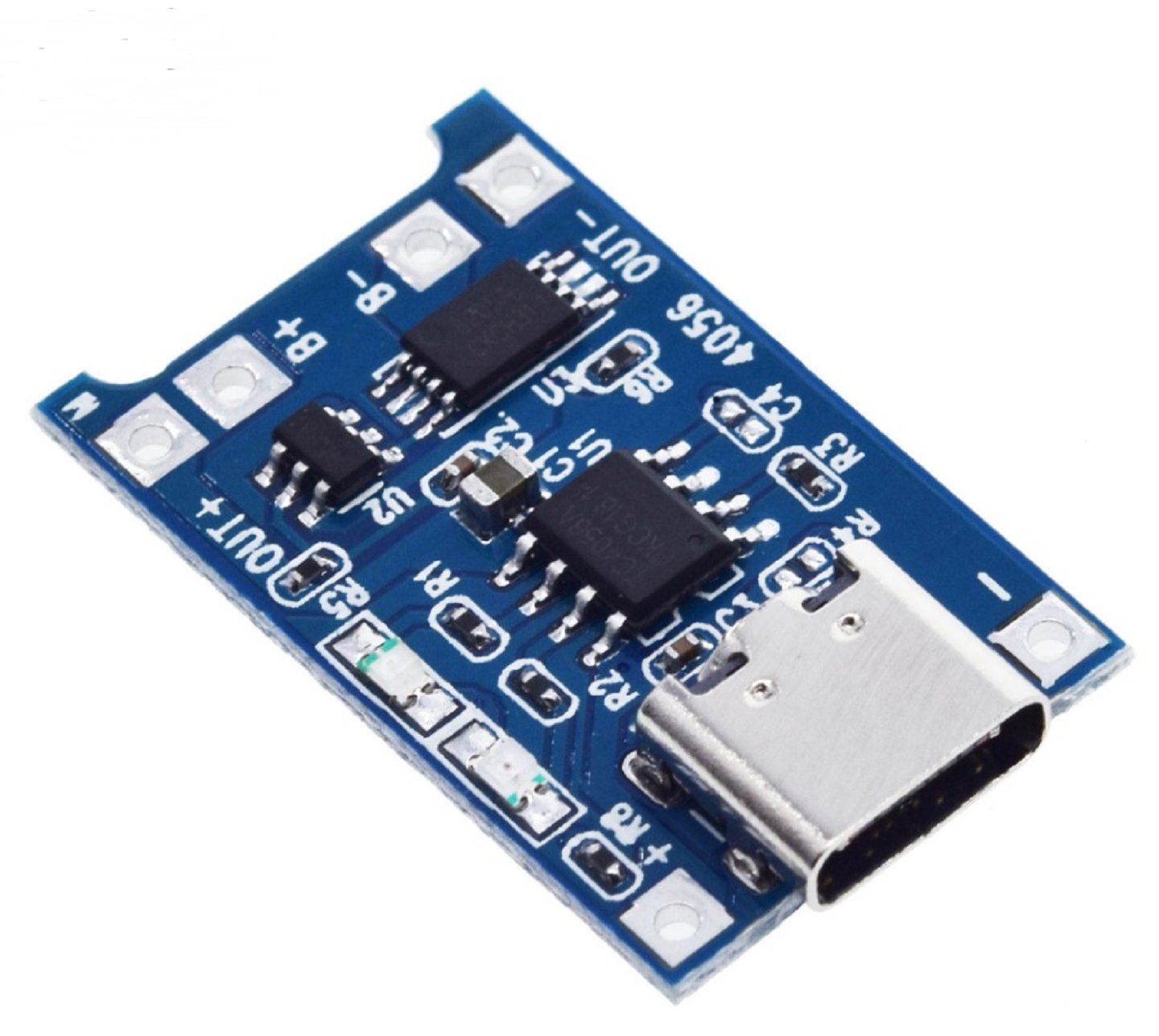

TP4056 1A Lithium Battery Charger Module Type C Interface

DESCRIPTION

• Material: Electrical Components
• Module name: lithium battery charging board
• Charging method: linear charge
• Charging current: 1A (adjustable)
• Charging accuracy: 1.5>#/li###
• Input voltage: 4.5V-5.5V
• Full charge voltage: 4.2V
• Charging indicator: red charging Green fully charged
• Input interface: TYPE C
• Operating temperature: -10 ℃ to + 85 ℃
• Can not reverse
• Product Features:
• This module uses very sophisticated charging chip TP4056, the peripheral circuit is simple, protect property, charge high accuracy.
• The module is fully automated processing machinery, SMD parts manufacturing, will be tested before each module shipping high reliability.
• The module current self-regulation, as long as the change in the circuit board fixed resistors can change the output caused 100mA-1000mA, very convenient
• Size:2.2*1.7cm
