Breadboard - Translucent Self-Adhesive (Clear) (PRT-09567)

4,83
(5,99 inc tax)
072.0088
Out of stock
Add to Wishlist

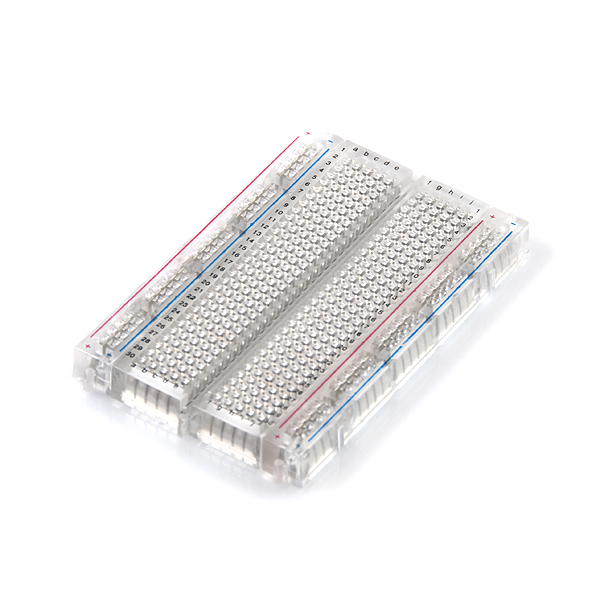

Ever wonder what goes on inside these things? Well this clear bread board might enlighten.

Beyond the clear plastic, this is really just a regular, solderless breadboard. It has 2 power buses, 30 columns, and 10 rows - a total of 400 tie in points. All pins are spaced by a standard 0.1". The two sets of five rows are separated by about 0.3", perfect for straddling a DIP package over. The board accepts wire sizes in the range of 29-20AWG.

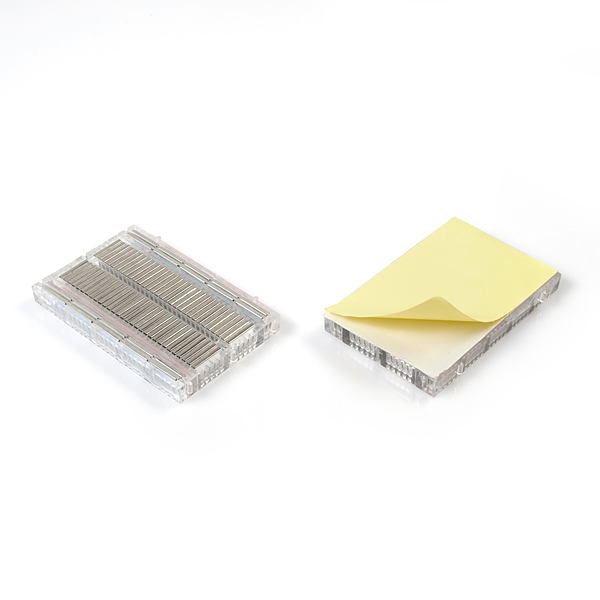

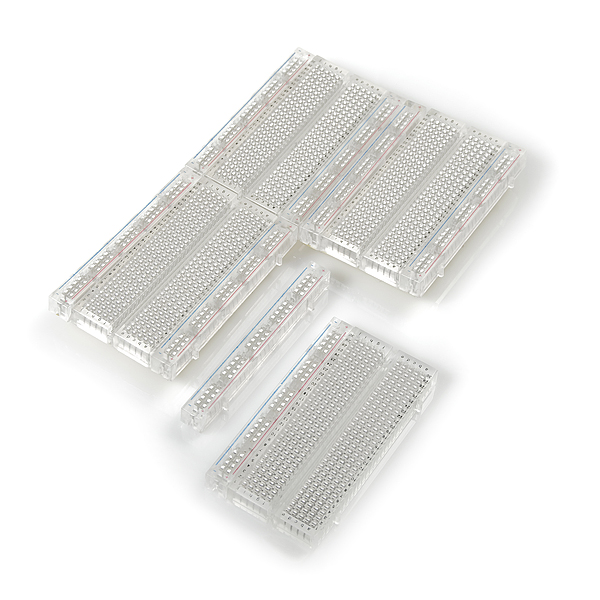

This board also has a self-adhesive on the back. The boards also have interlocking parts, so you can hook as many together as you’d like.

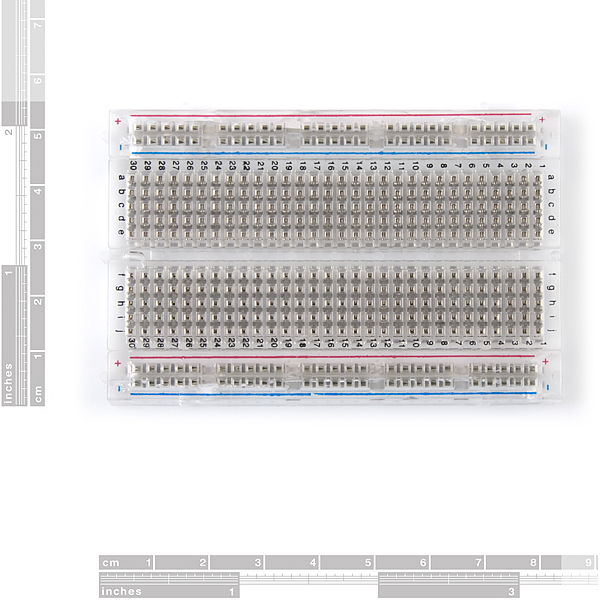

Dimensions: 3.29 x 2.15 x 0.33" (83.5 x 54.5 x 8.5mm)

MPN
:
PRT-09567
EAN
:
5212019506915
