12V 10W DC Micro Hydro Generator Tap Water Flow Hydraulic DIY (OEM)

12V 10W DC Micro Hydro Generator Tap Water Flow Hydraulic DIY

Micro hydro generator, the potential energy conversion of the water into electrical energy mechanical equipment.We provide you with three kinds of generators,Can be directly to the small battery charge,Can charge mobile phone,Can give 12V radio power, charging, power supply for LED lights, etc

Specification:

Output high voltage: 80V (1.2Mpa)

The maximum output : ≥220mA (12V)

Line resistance :10.5 + 0.5

Insulation resistance: 10M (DC100)

The outlet closed the maximum voltage: 0.6Mpa

The water outlet open the maximum voltage: 1.2Mpa

Start water pressure: 0.05Mpa

Size:8.8x5.8x3.9cm(L X W X H)

Axial gap 0.2 - 1.0mm

The mechanical noise :≤55dB

Generator single volume: 90g

The life of generator:≥ 3000h

Appearance: generator surface cleaning, no corrosion, the structure is strong.

Output characteristics: the output voltage with no voltage regulator is proportional to the water pressure.

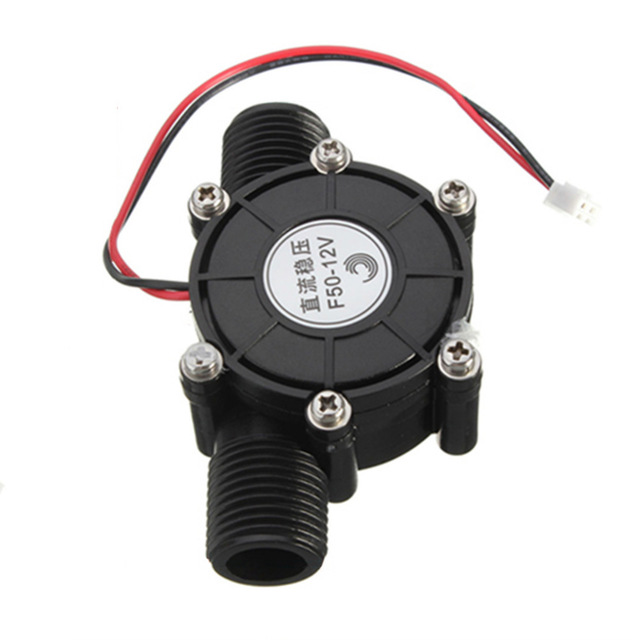

F50-12V:

DC 12V voltage regulator output, you can give the 12V radio power, charging, power supply to the LED.

Package include:

1 x Micro Hydro Generator(12v)
