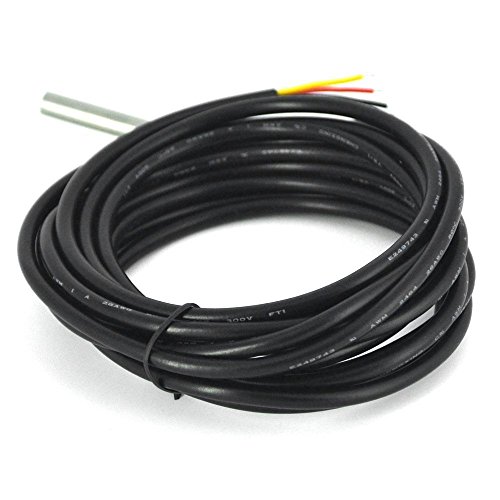

This product is a DS18B20 chip, 3 wires temperature sensor.
Used in many thermometers, thermostats and other regulations.
High quality stainless steel tube encapsulation waterproof moisture proof prevent rust.
- Sensor diameter: 6mm
- Stainless Steel tube length: 50mm
- Cable Diameter: 3.5mm
- Cable Length: 10M
- Output lead: Red(VCC), Yellow(DATA), Black(GND)
- Power supply range: 3.0V to 5.5V
- Operating temperature range: -55°C to +125°C (-67°F to +257°F)
- Storage temperature range: -55°C to to 125°C (-67°F to +257°F)
- Accuracy over the range of -10°C to +85°C: ±0.5°C.
- No other components, unique single bus interface.
