INTRODUCTION
DFRduino GPS Shield for Arduino has now been updated to
ublox LEA-6H.
The LEA-6H is a high performance stand-alone GPS and GALILEO receiver module
designed to allow easy, straightforward migration from its LEA-4 predecessors.
It features u-blox' KickStart weak signal acquisition technology, as well as
flexible connectivity options. The LEA-6H comes with built-in Flash memory that
enables firmware updates and the storage of specific configuration settings in
a non-volatile RAM. The built-in antenna supervisor supports external and
active antennas, such as u-blox' ANN high performance GPS antenna.
u-blox KickStart provides accelerated startup at weak signals, and our featured
SuperSense® Indoor GPS is capable of tracking and acquiring even extremely weak
signals. This makes the LEA-6H suitable for solutions using small or covert
antennas.
Suggestion: Customers can buy TEL0042
Built-in GPS Antenna to equip this GPS shield and maximize its
power.
SPECIFICATION
·
Power supply: 2.7 V–3.6 V
·
Power consumption: 117 mW @ 3.0 V
(continuous)
·
33 mW @ 3.0 V Power Save Mode (1 Hz)
·
Backup power: 1.4 V – 3.6 V, 22 μA
·
u-blox 6 position engine
·
Navigate down to –162 dBm and –148
dBm coldstart
·
Faster acquisition with AssistNow
Autonomous
·
Configurable power management
·
Hybrid GPS/SBAS engine (WAAS, EGNOS,
MSAS)
·
Anti-jamming technology
·
A-GPS: AssistNow Online and
AssistNow Offline services, OMA SUPL compliant
·
Supports GLONASS, Galileo ready
(LEA-6H)
·
Backward compatible (hardware and
firmware); easy migration from LEA-5 or LEA-4 families
·
Based on GNSS chips qualified
according to AEC-Q100
·
Manufactured in ISO/TS 16949
certified sites
·
LCC package for reliable and cost
effective manufacturing
·
Operating temperature range: –40°C
to 85°C
·
1 UART, 1 USB and 1 DDC (I2C compliant)
interface
·
Navigation update rate up to 5 Hz
(ROM version), 2 Hz (Flash)
·
Accuracy
·
Position: 2.5 m CEP
·
SBAS: 2.0 m CEP
DOCUMENTS
·
Wiki Doc (Sample code is in wiki page)
SHIPPING
LIST
·

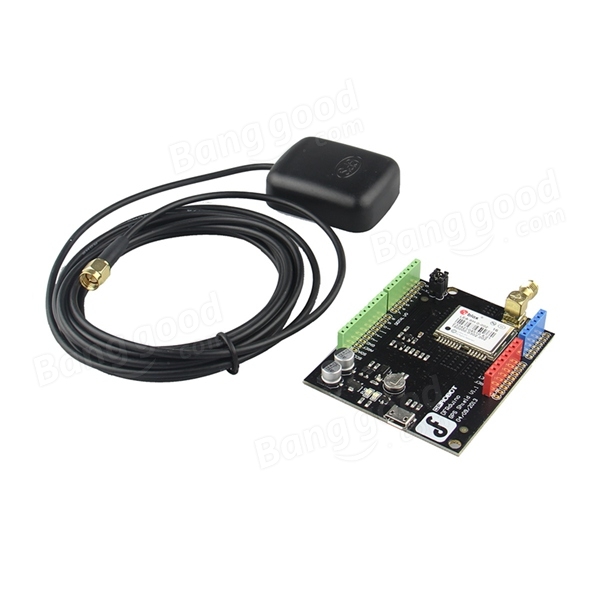

GPS Shield x1
· Passive Attena x1
