Product information "ToolkitRC M9 LiPo 1-8S 20A Charger DC 7-35V"
With a lot of performance, an incomparable design and numerous customization options, the M9 charger unveals itself. And the foldable color display provides the necessary comfort and clear view even in bright sunshine. And charging 2-8S LiPo batteries and up to 20S NiMH batteries can be a piece of cake. Even mobile devices such as smartphones, MP3 players, etc. can be connected via the USB Outputs Type-A and Type-C to recharge the batteries with 65W. But the M9 is not only suitable for charging but also has some additional programs that are intended to make everyday RC life easier. Balancer charger, watt measurement, signal source and DC output are combined here in one handy device.
Features:
- 600W DC charging power and maximum 20A charging current
- Compact design - ideal for traveling
- High-contrast LCD color display that can be angled up to 80°
- Free customization of the start screen and the voice prompts possible
- Serves as a signal source and tester (PWM, PPM, SBUS)
Technical Specifications:
Input Voltage: | DC 7.0-35.0V, max. 25A |
Charge Current: | 600W, 0.1-20A |
Discharge Current: | 20W, 3A (Normal mode) 600W, max. 20A (Recycle mode) |
Balance Current: | 1000mA, 4.2V |
USB: | 65W, 5.0-20.0V oder Upgrade über USB-A |
Cells: LiPo/LiHV/LiFe/Lion/LTO: | 1-8S |
Cells: NiMH: | 1-20S |
Pb Battery Voltage: | 1-10S |
Display: | LCD, IPS 2.4'' 320x240px |
Dimensions: | 108x71x36mm |
Weight: | 235g |
Measurement & Output:
Measurement | PWM | 880us-2200us, 20-400hz |
PPM | 880us-2200us x8 CH, 20-50hz | |
SBUS | 880us-2200us x16 CH, 20-100hz | |
Output | PWM | 500us-2500us, 20-1000hz |
PPM | 880us-2200us x8 CH, 20-50Hz | |
SBUS | 880us-2200us x16 CH, 20-100Hz | |
Strom | 1.0-35A, 1-20A, Modus: CC+CV |

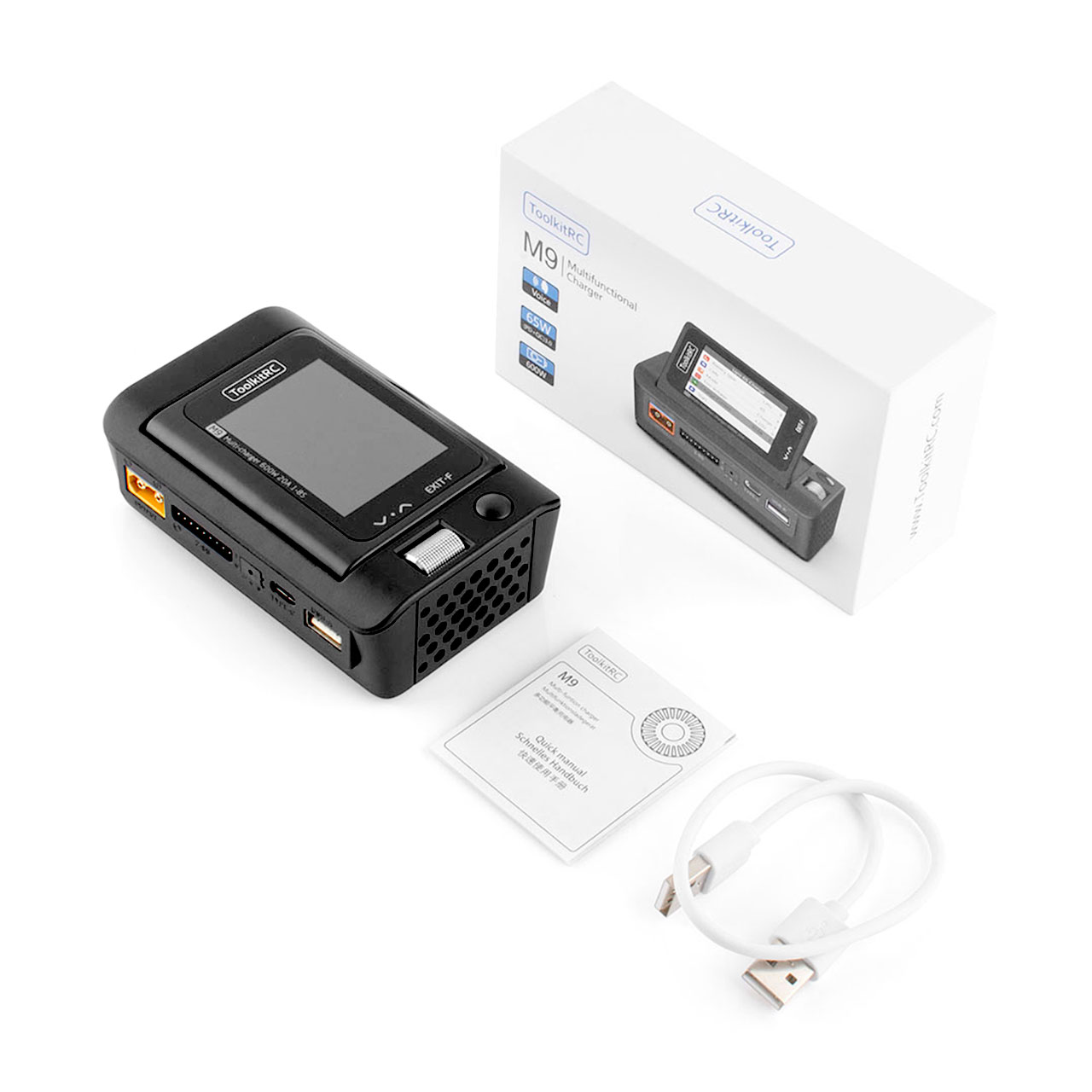

Delivery:
1x M9 Charger
1x USB Cable
1x Manual
