Description

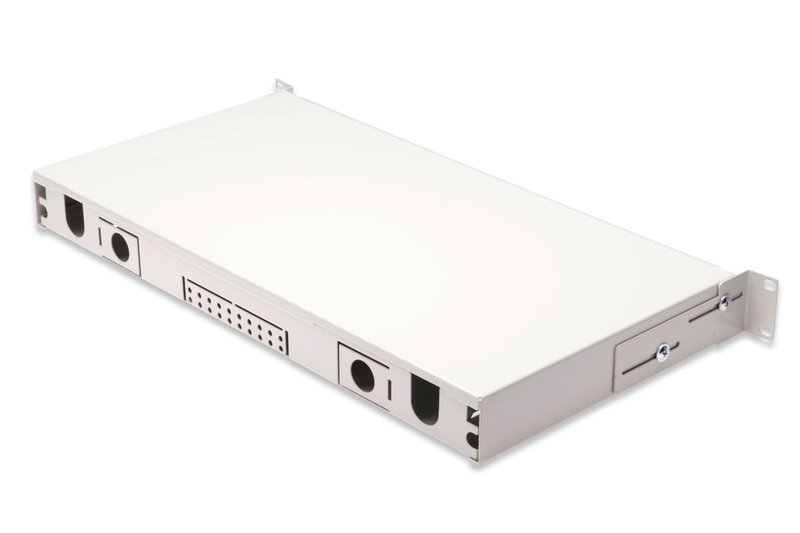

Fiber Splice Optic Sliding Splice Box, 1U 483 mm (19") incl. M20/M25 screws, w/o front panel color grey (RAL 7035)

The robust basic housing is the basic for the assembling of your individual splice boxes. Next of the already existing Splice Boxes from DIGITUS®, you have the possibility to assemble the components by yourself. Additionally we offer an extensive assortment of front panels, couplers and pigtails, which you need to complete your splice boxes. Our products have an continuous quality control and are according to the valued international standards and norms in the fiber optic cabling. With it we guarantee the best performance and quality for your network.

Technical Details

• Unassembled, without front panel
• Carrier housing made of 1.0 mm sheet steel, varnished
• Color: Grey (RAL 7035)
• Width 483 mm, depth 220 mm, pull-out depth 210 mm, depth is adjustable
• Inner dimension approx (HxWxD): 44x428x240 mm
• Holder for splice cassettes
• Punched out ground to fix pigtails
• 4 PG entries and 2 cable entries
• M20/M25 screws and mounting material included in delivery
• Suitable for front panel DN-96201, DN-96202, DN-96204, DN-96205, DN-96206, DN-96207
• Dimensions (HxWxD): 44 mm, 483 mm, 280 mm

Related Documents:

Datasheet
