Modular & Flexible

The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

• 500/700Mbps Max PTMP/PTP IP Throughput
• 8–25dBi Gain
• 4.9–6.4GHz Extended Frequency

Integrated Radio with Modular Antenna Options

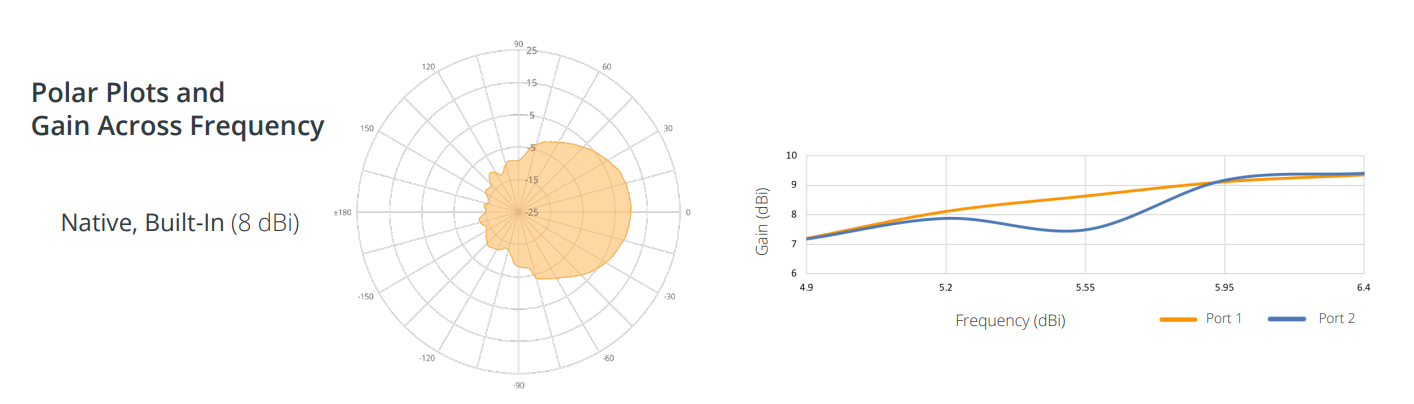

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

APPLICATIONS

• Broadband Service Provider
• Public Safety Networks
• Enterprise & Campus Connectivity
• Multipoint Distribution for Security
• Smart Cities & WiFi

Ultimate Flexibility

Out of the box, the entry level C5x can be used in PTMP mode with speeds of up to 500 Mbps, or PTP mode with speeds of up to 700 Mbps.

Incredible RF Performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Extended Frequency

To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

Ultra Rugged

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.

Specs:

• Max Throughput: 500 Mbps IP PTMP , 700 Mbps IP PTP
• Frequency: 4900-6400 MHz
• Weight: 0.37 kg (0.82 lbs)
• Power Consumption: 12.9 W max
• Gain: 8 dBi (native) 12–25 dBi (with antennas)
• IP Rating: IP55
• Build Material: Die-cast aluminum
• Max Out Power: 27 dBm
