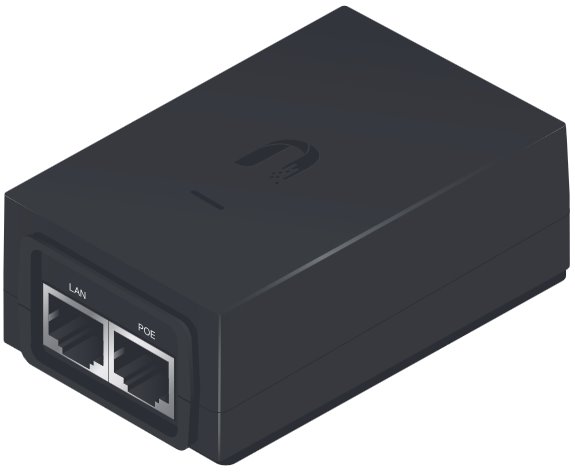

UBNT-POE-24-24W-G
UBNT-POE-24-24W-G is a gigabit PoE adapter designed to supply equipment powered by 24V up to1A (RouterBoard, Alix, WispStation, Bullet and others). Ideal for powering client stations CPE and base stations. The adapter has LED indicating power supply.
Technical Specification
Output Voltage |
24VDC @1.0A |
Input Voltage |
90-260VAC @47-63Hz |
Input Current |
0.3A @120VAC, 0.2A @230VAC |
Inrush Current |
<15A peak @120VAC, <30A peak |
Efficiency |
70+% |
Output Ripple |
1% Max |
Switching Frequency |
200kHz |
Line Regulation |
+/- 0.5% |
Load Regulation |
+/- 1% |
Operating Temperature |
-10C to +60 deg C |
Storage Temperature |
-20 to +85 deg C |
Operating Humidity |
-10C to +60 deg C |
Size (LXWXH) |
85 x 55 x 33 (mm) |
Weight |
4 oz |
AC Connector |
IEC-320 C6 |
Data IN / POE |
RJ45 Shielded Socket |
80% Current Indicator |
Power LED will change color |
Surge Protection |
Common Mode |
Clamping Protection |
11V Data, 77.5V Power |
Max Surge Discharge |
1200A (8/20uS) Power |
Peak Pulse Current |
36A (10/1000uS Data) |
Shunt Capacitance |
<5pF data |
Response Time |
<1nS |
Compliance |
UL, EN55022 (CISPR22) class B, Meets CE |
