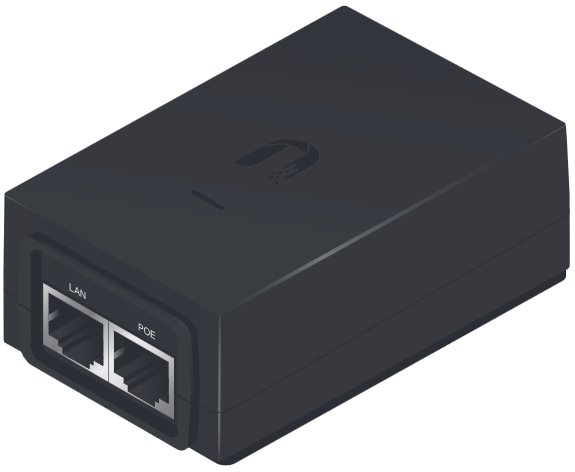

Ubiquiti POE-48-24W (48V, 0.5A, 24W)

Output Voltage

48VDC @ 0.5A

Input Voltage

90-260VAC @ 47-63Hz

Input Current

0.3A @ 120VAC, 0.2A @230VAC

Inrush Current

<15A peak @120VAC, <30A peak @230VAC

Efficiency

70+%

Output Ripple

1% Max

Switching Frequency

200kHz

Line Regulation

+/- 0.5%

Load Regulation

+/- 1%

Operating Temperature

-10C to +60 deg C

Storage Temperature

-20 to +85 deg C

Operating Humidity

-10C to +60 deg C

Size (LXWXH)

85x43x30 mm

Weight

4 oz

AC Connector

IEC-320 C6

Data IN / POE

RJ45 Shielded Socket

80% Current Indicator

Power LED will change color

Surge Protection

Common Mode

Clamping Protection

11V Data, 77.5V Power

Max Surge Discharge

1200A (8/20uS) Power

Peak Pulse Current

36A (10/1000uS Data)

Shunt Capacitance

<5pF data

Response Time

<1nS

Compliance

UL, EN55022 (CISPR22) class B, Meets CE
