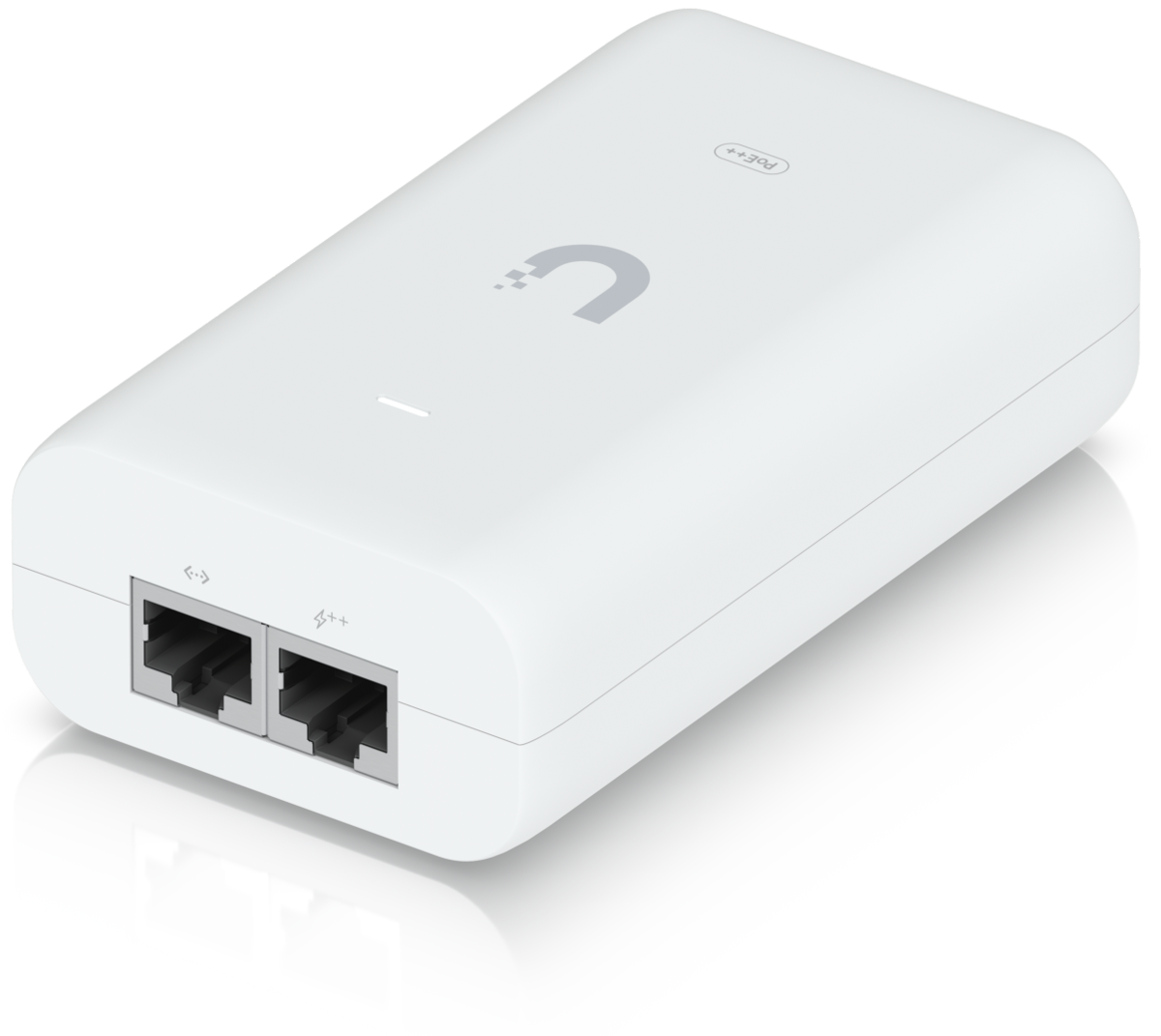

Ubiquiti U-PoE++, Gigabit PoE Injector (48V, 1.25A, 60W)

Product description

U-POE++ from Ubiquiti Networks is a high-quality Gigabit PoE injector with one PoE output port for powering devices with voltage level of 48V with a maximum output power of 60W, which is sufficient for the energy-intensive devices. The power supply is conducted on all the wires 1,2,4.5 (+) and 3,6,7.8 (-). Of course, the source also includes protection against electrical overvoltage. A 3-pin power cord is included.

Technical parameters

Connectors and Interfaces

Ethernet speed [Mb/s]:10/100/1000
Gigabit LAN:Yes

Power

The input voltage [V]:230V AC
Output Power [W]:60
Pin powering:1,2,4,5 (+), 3,6,7,8 (-)
PoE Out ports:1
Output Voltage [V]:48
Output Current [A]:1,25
Efficiency [%]:85+

Physical characteristics

Shielding:Yes
LED indication:Yes
Operating temperature [°C]:0 up to 40
Width [mm]:63
Height [mm]:34
Depth [mm]:106
