MikroTik RB4011iGS+5HacQ2HnD-IN, 3dBi, 29dBm, 2x2 @ 2.4GHz, 3dBi, 33dBm, 4x4 @ 5GHz, 4x1.4GHz, 1GB, 10xGigabit, 1xSFP+, PoE out, L5

€237,90
(€295,00 με ΦΠΑ)
033.1262
Άμεση
+ −
Προσθήκη στα αγαπημένα

Εγγύηση:

  • 1 έτος

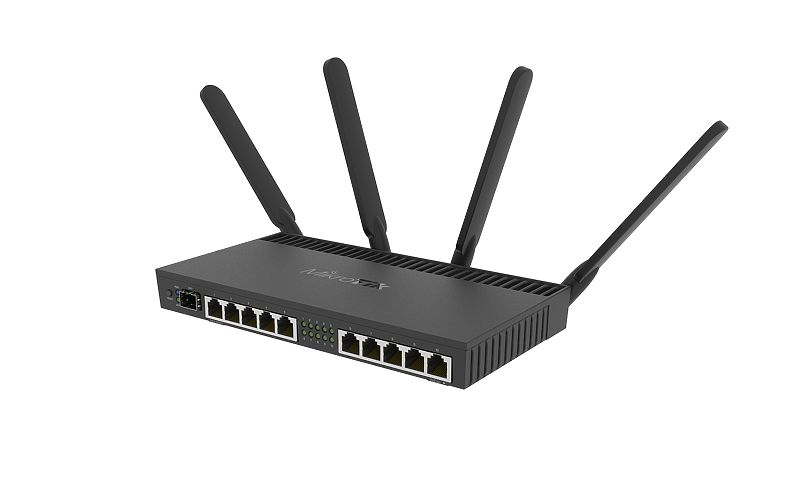

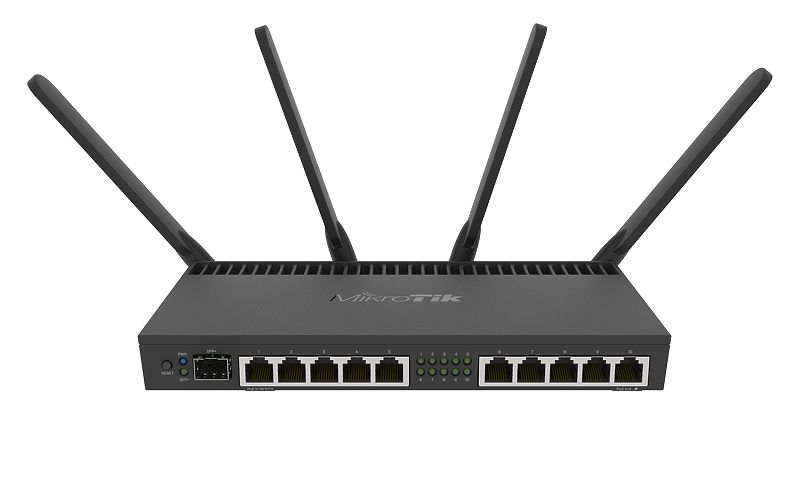

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

We have two versions available.

RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product codeRB4011iGS+5HacQ2HnD-IN
ArchitectureARM 32bit
CPUAL21400
CPU core count4
CPU nominal frequency1.4 GHz
Dimensions228 x 120 x 30 mm
License level5
Operating SystemRouterOS
Size of RAM1 GB
Storage size512 MB
Storage typeNAND
Tested ambient temperature-40°C .. +45°


Powering

Details
PoE inPassive PoE
PoE outPassive PoE up to 57V
PoE in input Voltage18-57 V
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max out per port output (input > 30 V)420 mA
Max out per port output (input < 30 V)600 mA
Max total out (A)600 mA
Max power consumption55
Max power consumption without attachments26W

Wireless

Details
Wireless 5 GHz number of chains4
Wireless 5 GHz standards802.11ac
Antenna gain dBi for 5 GHz3
Wireless 5 GHz chip modelQCA-9984
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz3
Wireless 2.4 GHz chip modelR11e-2HnD

Ethernet

Details
10/100/1000 Ethernet ports10

Fiber

Details
SFP+ ports1

Peripherals

Details
MiniPCI-e slots1
Serial portRJ45

Other

Details
PCB temperature monitorYes
Voltage MonitorYes

Wireless specifications

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s33-96
54MBit/s29-81
MCS033-96
MCS728-77
MCS926-72
2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s28-100
11MBit/s28-94
6MBit/s29-96
54MBit/s25-80
MCS026-96
MCS724-79

Included parts



Test results

Ethernet test results

RB4011iGS+5HacQ2HnD-INAL21400 1G/S+ all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)806,49,792.92312,99,473.65509,72,821.0
Bridging25 bridge filter rules806,49,792.91037,44,249.21153,2590.4
Routingnone (fast path)806,49,792.91923,37,877.85092,32,607.3
Routing25 simple queues806,49,792.91046,64,286.9960,3491.7
Routing25 ip filter rules593,77,209.9625,22,560.8564,6289.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB4011iGS+5HacQ2HnD-INAL21400 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA1140.81577.0141.2578.4139.971.6
256 tunnelsAES-128-CBC + SHA1192.72158.2200.5821.2203.4104.1
256 tunnelsAES-128-CBC + SHA256192.42154.9200.5821.2203.4104.1
256 tunnelsAES-256-CBC + SHA1180.02016.0188.2770.9190.397.4
256 tunnelsAES-256-CBC + SHA256180.02016.0188.2770.9190.397.4
256 tunnelsAES-128-GCM192.72158.2202.2828.2203.4104.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
