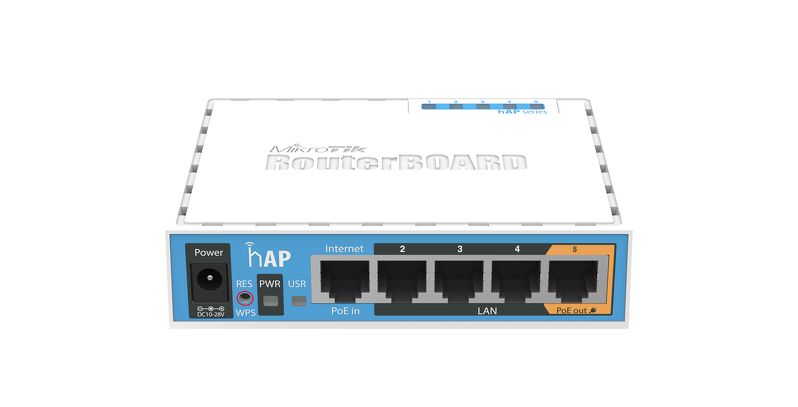

MikroTik RB951Ui-2nD, hAP, 1.5dBi, 22dBm, 650MHz, 64MB, 2.4GHz, 5xEthernet, PoE out, USB, L4
Εγγύηση:
- 1 έτος
hAP
This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
Product specifications
|
Details |
|
|
Product code |
RB951Ui-2nD |
|
CPU nominal frequency |
650 MHz |
|
CPU core count |
1 |
|
Size of RAM |
64 MB |
|
10/100 Ethernet ports |
5 |
|
10/100/1000 Ethernet ports |
None |
|
MiniPCI slots |
0 |
|
MiniPCI-e slots |
0 |
|
Wireless chip model |
QCA9531-BL3A-R |
|
Wireless standards |
802.11b/g/n |
|
Number of USB ports |
1 |
|
Power Jack |
1 |
|
PoE in |
Yes |
|
PoE out |
Yes |
|
Supported input voltage |
6 V - 30 V |
|
Voltage Monitor |
No |
|
PCB temperature monitor |
No |
|
CPU temperature monitor |
No |
|
Dimensions |
113 x 89 x 28mm |
|
Operating System |
RouterOS |
|
Operating temperature range |
-30 + 70 C |
|
Antenna gain DBI |
1.5 |
|
Current Monitor |
No |
|
CPU |
QCA9531-BL3A-R |
|
Max Power consumption |
5W |
|
SFP ports |
0 |
|
SFP+ ports |
0 |
|
USB slot type |
USB type A |
|
Number of chains |
2 |
|
Serial port |
None |
Wireless specifications
|
2.4 GHz |
||
|
TX |
RX |
|
|
1MBit/s |
22 |
-96 |
|
11MBit/s |
22 |
-89 |
|
6MBit/s |
20 |
-93 |
|
54MBit/s |
18 |
-74 |
|
MCS0 |
20 |
-93 |
|
MCS7 |
16 |
-71 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Included parts
Performance test results
|
RB951Ui-2nD |
QCA9531 (650Mhz) 100M all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
40.6 |
493.0 |
117.4 |
480.9 |
217.0 |
111.1 |
|
Bridging |
25 bridge filter rules |
40.6 |
493.0 |
70.1 |
287.1 |
70.9 |
36.3 |
|
Routing |
none (fast path) |
40.6 |
493.0 |
117.4 |
480.9 |
200.8 |
102.8 |
|
Routing |
25 simple queues |
40.6 |
493.0 |
79.6 |
326.0 |
90.8 |
46.5 |
|
Routing |
25 ip filter rules |
40.6 |
493.0 |
42.2 |
172.8 |
43.2 |
22.1 |
1.All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2.Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3.Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
4.Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
