Description

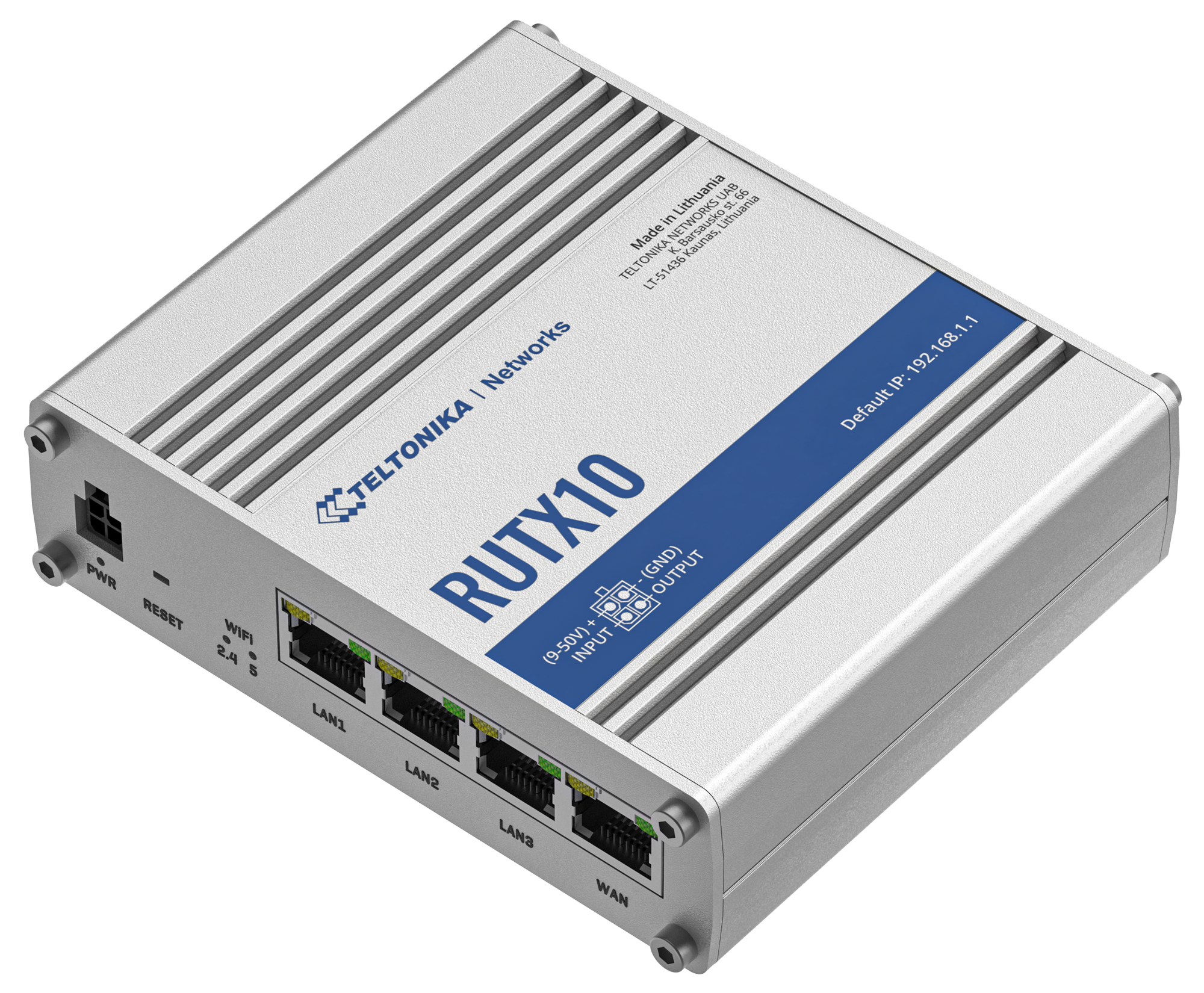

PROFESSIONAL ETHERNET ROUTER
This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications

FEATURES

ETHERNET

• WAN

  1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• LAN

  3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

WIRELESS

• Wireless mode

  802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

• Wi-Fi security

  WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

• SSID/ESSID

  ESSID stealth mode

• Wi-Fi users

  up to 150 simultaneous connections

• Wireless Hotspot

  Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), Relayd

BLUETOOTH

• Bluetooth 4.0

  Bluetooth low energy (LE) for short range communication

NETWORK

• Routing

  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules

• DHCP

  Static and dynamic IP allocation, DHCP Relay

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >25 service providers, others can be configured manually

• Network backup

  Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

  Balance Internet traffic over multiple WAN connections

• SSHFS

  Possibility to mount remote file system via SSH protocol

SECURITY

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

• Firewall

  Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN

  Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

  BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

  IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

  GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

  Method of building scalable IPsec VPNs

• SSTP

  SSTP client instance support

• ZeroTier

  ZeroTier VPN client support

• WireGuard

  WireGuard VPN client and server support

• Tinc

  Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

• ID range

  Respond to one ID in range [1;255] or any

• Allow Remote Access

  Allow access through WAN

• Custom registers

  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

• Supported functions

  01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

DATA TO SERVER

• Protocol

  HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY

• MQTT Gateway

  Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

• Supported modes

  TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

• WEB UI

  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

• FOTA

  Firmware update from server, automatic notification

• SSH

  SSH (v1, v2)

• TR-069

  OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT

  MQTT Broker, MQTT publisher

• SNMP

  SNMP (v1, v2, v3), SNMP Trap

• JSON-RPC

  Management API over HTTP/HTTPS

• MODBUS

  MODBUS TCP status/control

• RMS

  Teltonika Remote Management System (RMS)

IOT PLATFORMS

• Cloud of Things

  Allows monitoring of: Device data, Mobile data, Network info, Availability

• ThingWorx

  Allows monitoring of: WAN Type, WAN IP

• Cumulocity

  Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP

• Azure IoT Hub

  Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS

• CPU

  Quad-core ARM Cortex A7, 717 MHz

• RAM

  256 MB, DDR3

• FLASH storage

  256 MB, SPI Flash


FIRMWARE / CONFIGURATION

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system

  RutOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++, and Python, Java in Package manager

• Development tools

  SDK package with build environment provided

USB

• Data rate

  USB 2.0

• Applications

  Samba share, USB-to-serial

• External devices

  Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

• Storage formats

  FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT / OUTPUT

• Input

  1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

• Output

  1 x Digital Output, Open collector output, max output 30 V, 300 mA

• Events

  Email, RMS

• I/O juggler

  Allows to set certain I/O conditions to initiate event

POWER

• Connector

  4-pin industrial DC power socket

• Input voltage range

  9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

• PoE (passive)

  Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

• Power consumption

  9 W Max

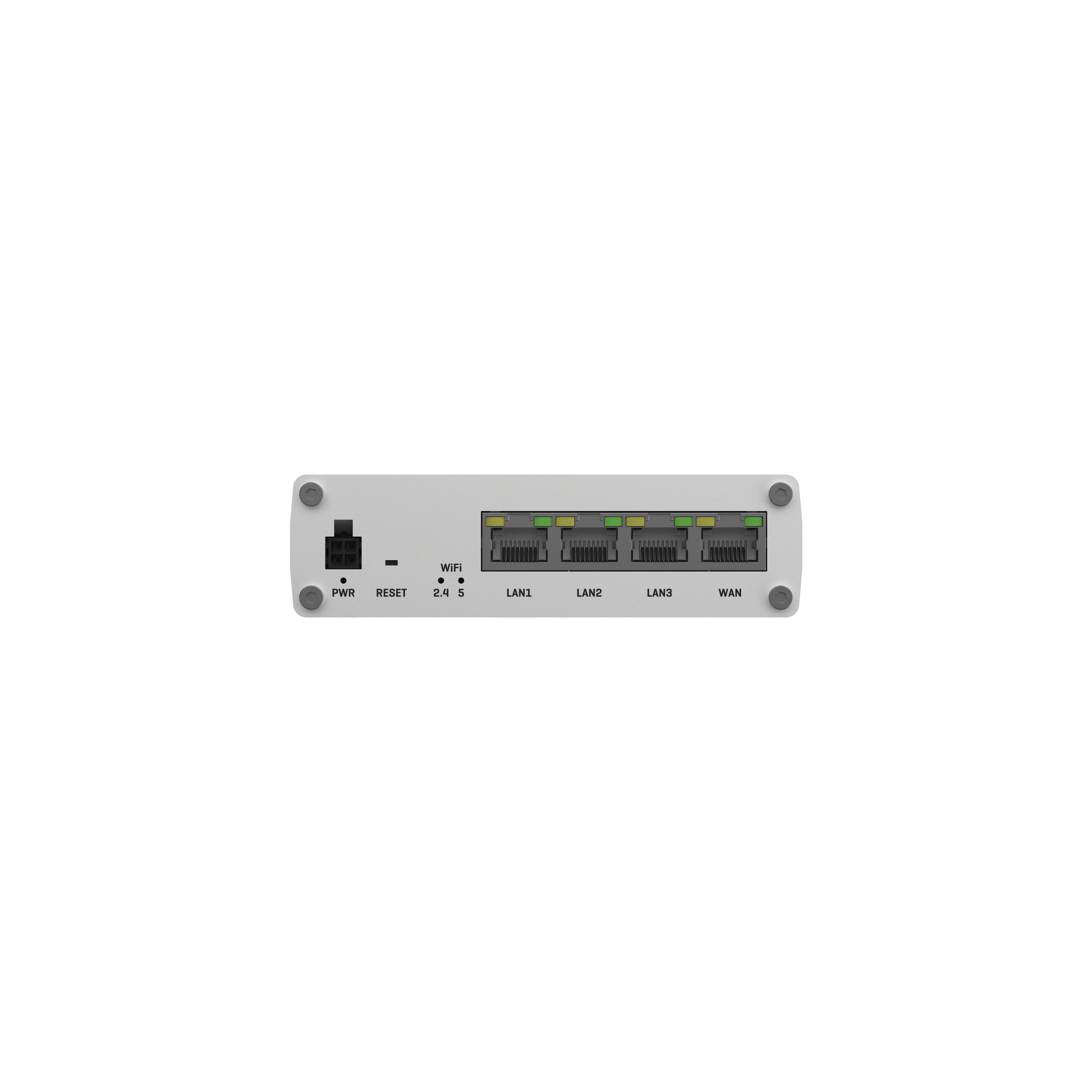

PHYSICAL INTERFACES

• Ethernet


  4 x RJ45 ports, 10/100/1000 Mbps

• I/O’s

  1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs

  8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

• Power

  1 x 4-pin power connector

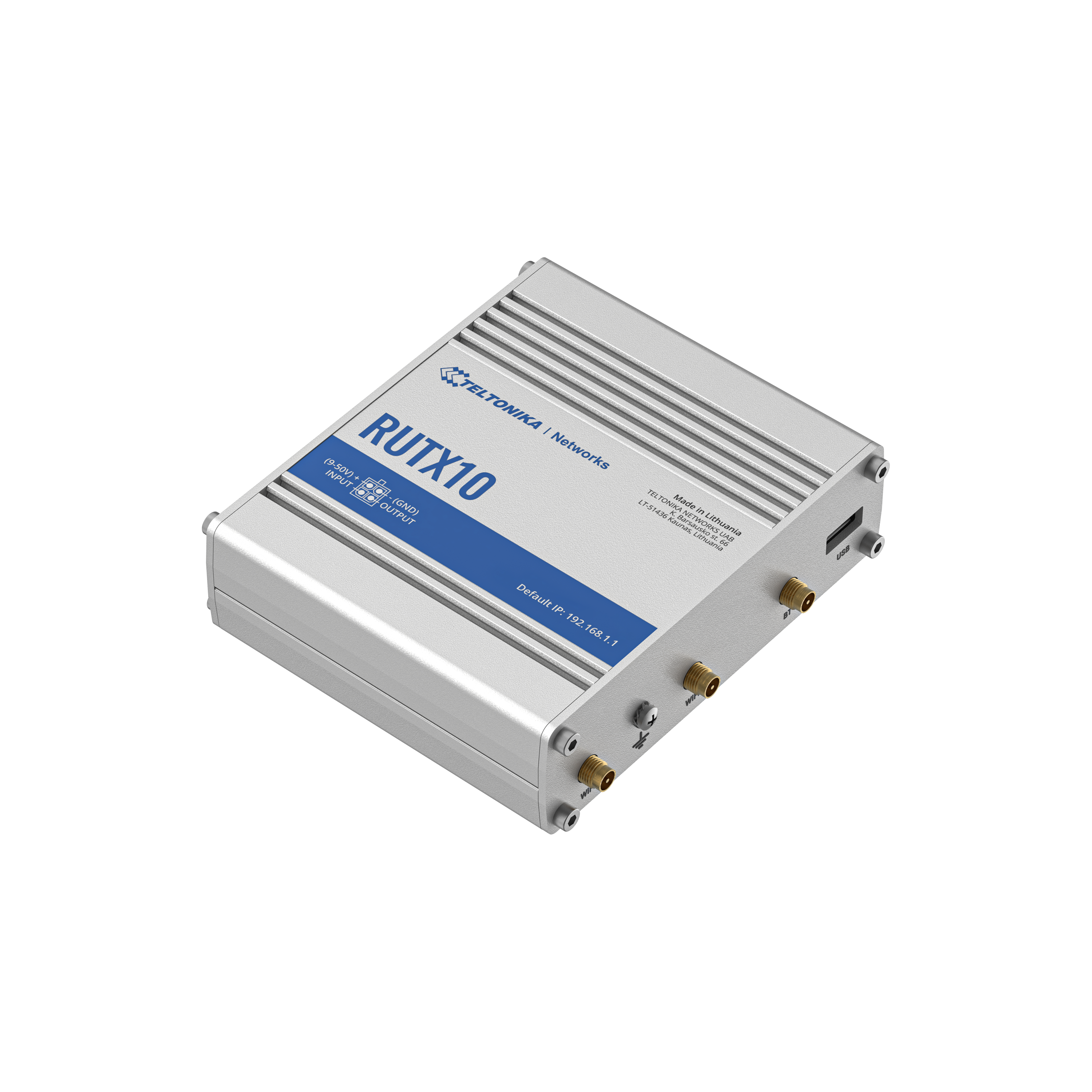

• Antennas

  2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth

• USB

  1 x USB A port for external devices

• Reset

  Reboot/User default reset/Factory reset button

• Other


  1 x Grounding screw


PHYSICAL SPECIFICATION

• Casing material

  Aluminum housing

• Dimensions (W x H x D)

  115 x 32.2 x 95.2 mm

• Weight

  355 g

• Mounting options


  DIN rail, flat surface placement


OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

PACKAGE CONTAINS

• Router RUTX10
• 18 W PSU
• 2 x WiFi antennas (swivel, RP-SMA male)
• 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
