DIGITUS CAT 5e Keystone Jack, unshielded RJ45 to LSA, tool free connection

Best performance and link quality for your network.

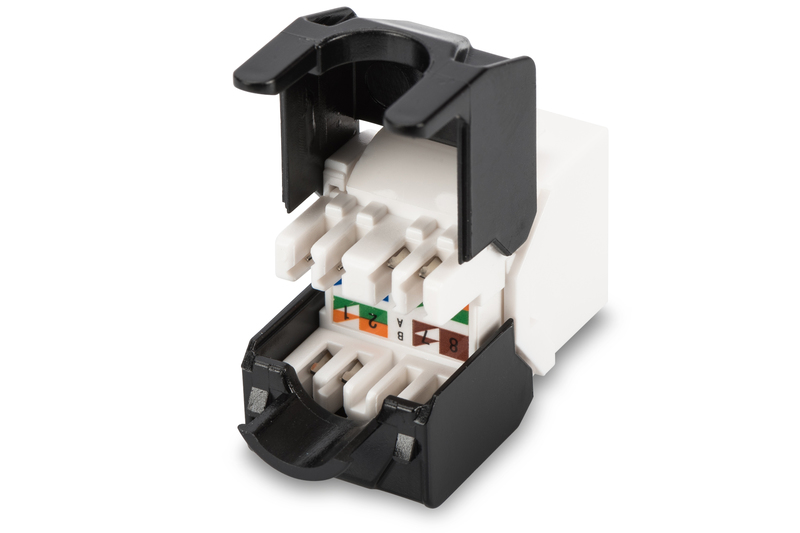

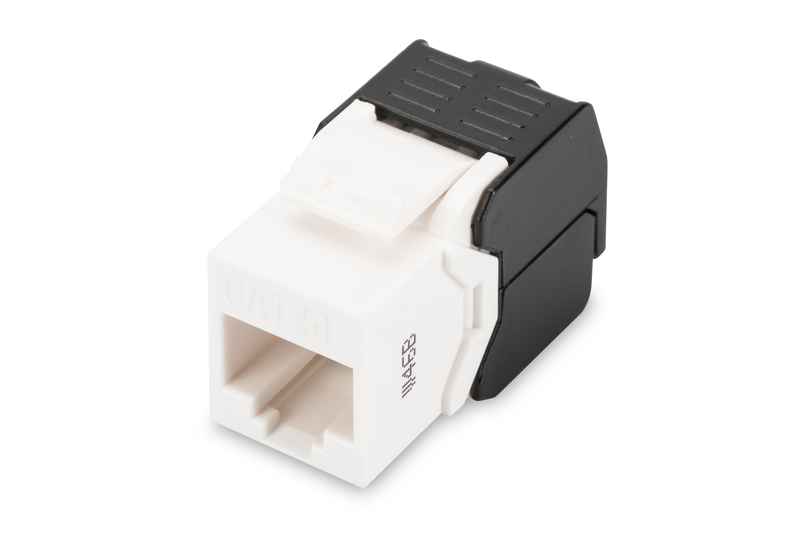

The "DN-93502" from DIGITUS® is an unshielded CAT 5e Keystone Module with tool free installation which provides best performance and link quality for your network. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B.

Technical Details

• Transmission properties: Category 5e
• Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for 483 mm (19") cabinet mounting
• RJ45 female, 8P8C
• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• Cable fixing with cable tie
• Tool-free installation
• Technical properties:
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
• Model: Bus (jack)
• Type of connector: RJ45 8(8)
• Screened: no
• Category: 5E
• Connection type: LSA
• Special tool necessary: no
• Suitable for round cable: yes
• Suitable for flat cable: yes
• Suitable for litz wire conductor: yes
• Suitable for solid core: yes
• Colour: White
• AWG-range: 26 … 22
