Description

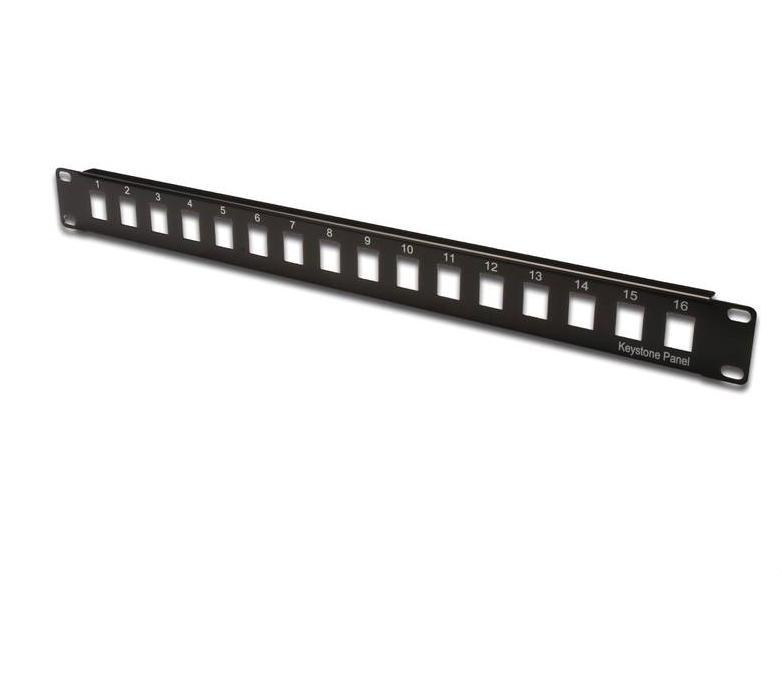

DIGITUS Modular Patch Panel, unshielded 16-port, blank, 1U, rack mount, color black RAL 9005

The Modular Patch Panel from DIGITUS® is available as 16- or 24-port version. The 1.5 mm cold rolled c-steel provides the best storage of your Keystone Modules.

Technical Details

• Layout Keystone Entry: Double-row
• Area of application: 483 mm (19") cabinet
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for 483 mm (19") cabinet mounting
• Suitable for unshielded Digitus® Keystone Modules and Couplers
• Technical properties:
• Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
• Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
• Physical properties:
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Number of buses/couplings: 16
• Suitable for number of connectors: 16
• Type of connector: RJ45 8(8)
• Screened: no
• Category: Other
• Connection type: Other
• Number of height units: 1
• Colour: Black
• RAL-number: 9005
• Mounting method: 482.6 mm (19 inch) mounting
• Height: 44 mm
• Width: 483 mm
• Depth: 15 mm
