MikroTik CRS317-1G-16S+RM, Dual Core 800MHz, 1GB, 1xGigabit, 16xSFP+, Dual PSU, L6

10Gbps, 16, 100-240VAC, Rackmount, Indoor, Dual PSU
439,52
(545,00 με ΦΠΑ)
033.1132
Άμεση
+
Προσθήκη στα αγαπημένα

Εγγύηση:

  • 1 έτος

CRS317-1G-16S+RM

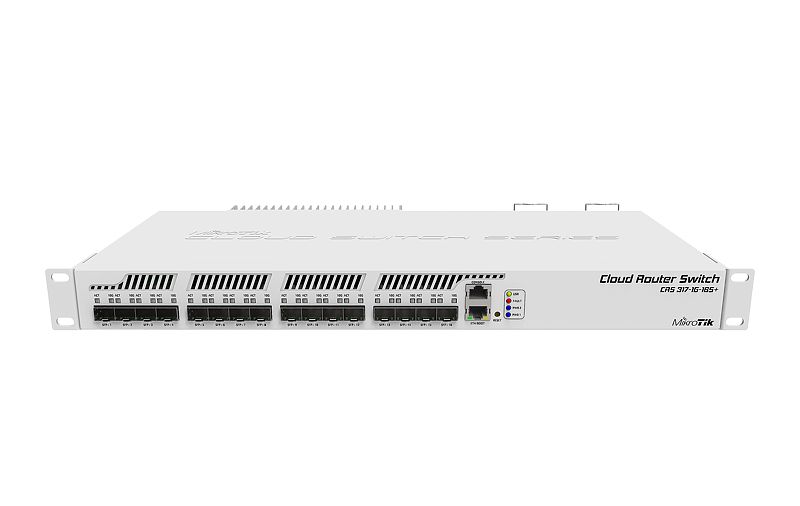

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

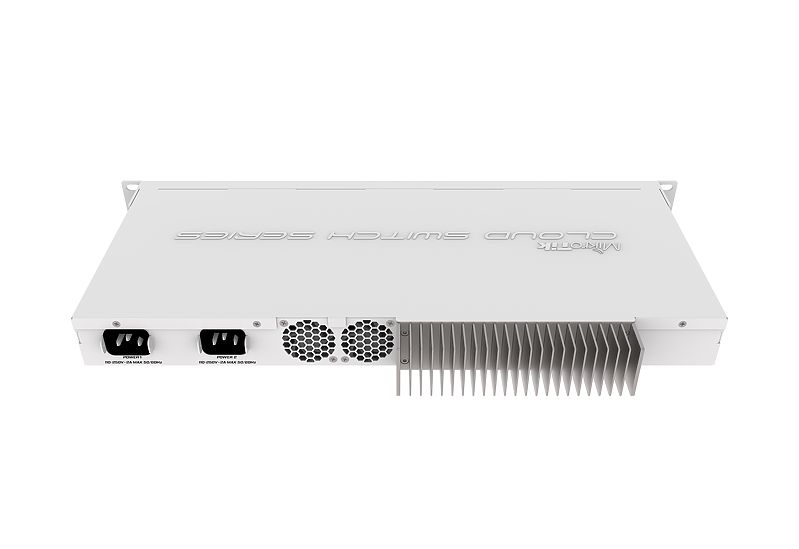

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

Product specifications

Details
Product code CRS317-1G-16S+RM
10/100/1000 Ethernet ports 1
CPU 98DX8216B0-BRR4C000
CPU Threads count 2
CPU core count 2
CPU nominal frequency 800 MHz
CPU temperature monitor Yes
Dimensions 443 x 224 x 44 mm
License level 6
Max Power consumption 42W
Operating System RouterOS or SwitchOS
SFP+ ports 16
Serial port RJ45
Size of RAM 1 GB
Storage size 16 MB
Storage type FLASH
Supported input voltage 24 V - 24 V
Tested ambient temperature -20 to 60° C

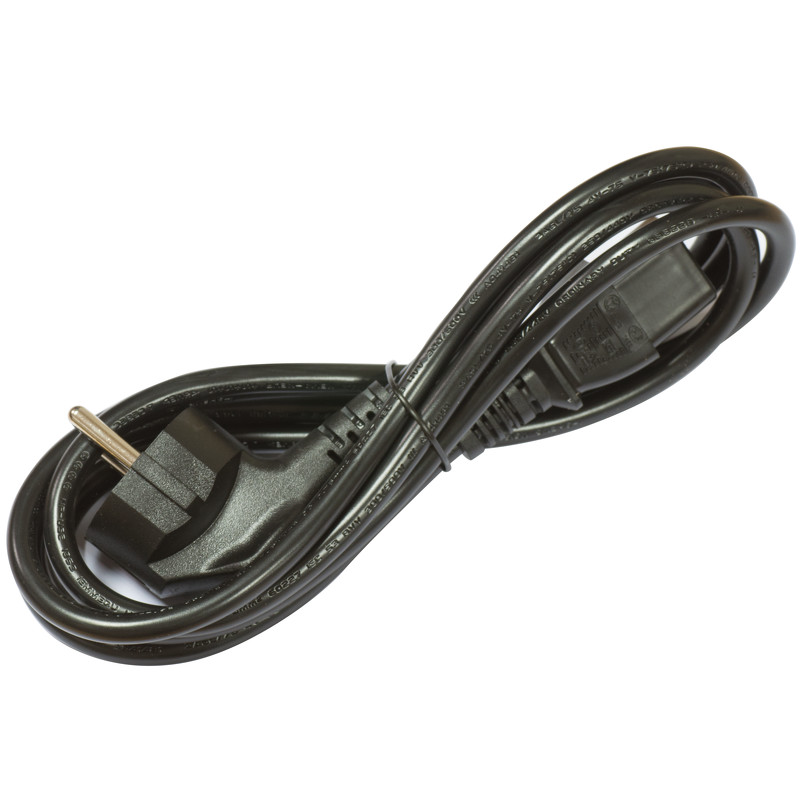

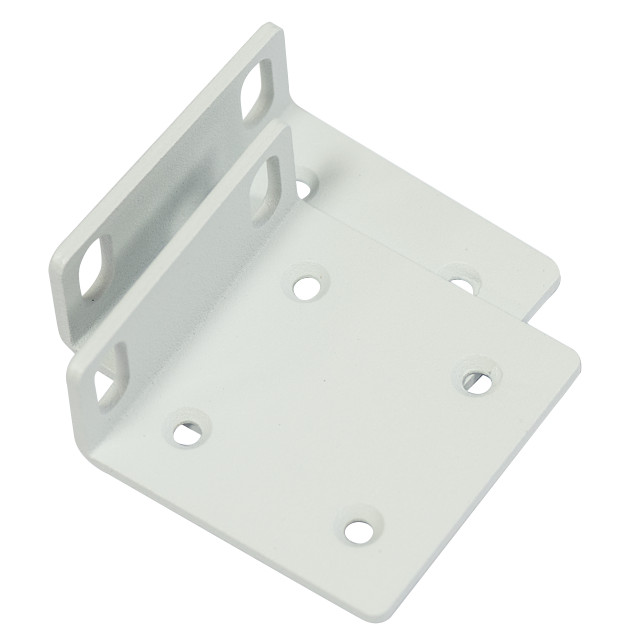

Included parts

Switching results

CRS317-1G-16S+RM
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 239,583.3 122,666.7 37,828.9 154,947.4 13,085.2 158,906.4
Switching Non blocking Layer 2 capacity 239,583.3 245,333.3 37,828.9 309,894.7 13,085.2 317,812.7
Switching Non blocking Layer 1 throughput 239,583.3 161,000.0 37,828.9 161,000.0 13,085.2 161,000.0
Switching Non blocking Layer 1 capacity 239,583.3 322,000.0 37,828.9 322,000.0 13,085.2 322,000.0

Ethernet test results

CRS317-1G-16S+RM 98DX8216B0 all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 268.3 3258.2 361.2 1479.5 355.2 181.9
Bridging 25 bridge filter rules 98.4 1195.0 98.6 403.9 98 50.2
Routing none (fast path) 254.4 3089.4 309.8 1268.9 315.4 161.5
Routing 25 simple queues 104.6 1270.3 104.4 427.6 104.6 53.6
Routing 25 ip filter rules 104.6 1270.3 103.4 423.5 103.9 53.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

More info

MPN
:
CRS317-1G-16S+RM
EAN
:
4752224002167
Ταχύτητα Θυρών:
  • 10Gbps
Θύρες SFP+ (10G):
16
Input Voltage:
  • 100-240VAC
Rackmount:
Indoor/Outdoor:
Indoor
PoE In:
Dual PSU:
