MikroTik CRS354-48G-4S+2Q+RM, 650MHz, 64MB, 48xGigabit, 4xSFP+, 2xQSFP+, Dual PSU, L5
Εγγύηση:
- 1 έτος

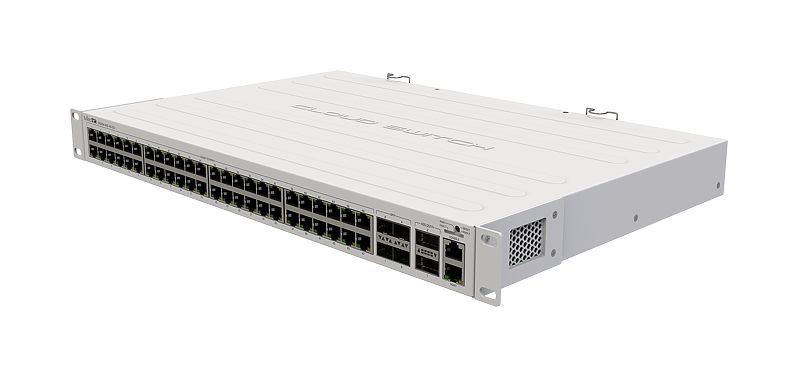

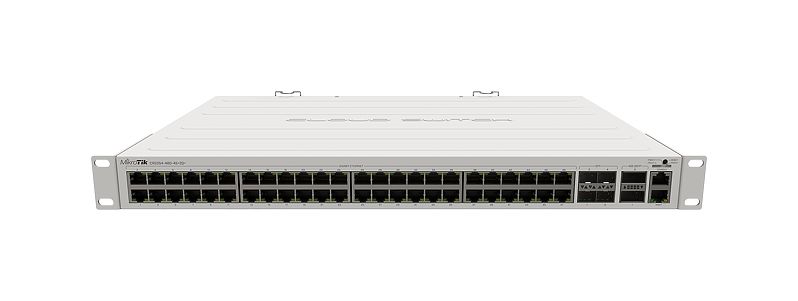

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less!
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specifications
| Details | |
|---|---|
| Product code | CRS354-48G-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 297 x 443 x 44 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
| Max power consumption without attachments | 50 W |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE/RED, EAC, ROHS |
Included parts
2x IEC cords
Screw and feet kit (K10)
Cable managment brackets
Rackmount ears (CRS354)Test Results:
Switching results
| CRS354-48G-4S+2Q+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13,662.2 | 165,914.0 | 39,497.2 | 161,780.5 | 250,148.8 | 128,076.2 |
| Switching | Non blocking Layer 2 capacity | 13,662.2 | 331,828.1 | 39,497.2 | 323,560.9 | 250,148.8 | 256,152.4 |
| Switching | Non blocking Layer 1 throughput | 13,662.2 | 168,100.0 | 39,497.2 | 168,100.0 | 250,148.8 | 168,100.0 |
| Switching | Non blocking Layer 1 capacity | 13,662.2 | 336,200.0 | 39,497.2 | 336,200.0 | 250,148.8 | 336,200.0 |
Ethernet test results
| CRS354-48G-4S+2Q+RM | QCA9531 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 37,4 | 454.2 | 82,8 | 339.1 | 162,5 | 83.2 |
| Bridging | 25 bridge filter rules | 33,8 | 410.5 | 47,8 | 195.8 | 75,6 | 38.7 |
| Routing | none (fast path) | 37,2 | 451.8 | 73,3 | 300.2 | 144,9 | 74.2 |
| Routing | 25 simple queues | 36,4 | 442.0 | 52,4 | 214.6 | 54,4 | 27.9 |
| Routing | 25 ip filter rules | 33,8 | 410.5 | 41,4 | 169.6 | 41,7 | 21.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Support & Downloads
- 1Gbps
- 10Gbps
- 40Gbps
- 100-240VAC
