MikroTik CSS326-24G-2S+RM, 24xGigabit, 2xSFP+, SwOS
1Gbps, 10Gbps,
24,
2,
10-30VDC,
Rackmount,
Indoor
Please sign in so that we can notify you about a reply
Εγγύηση:
- 1 έτος
CSS326-24G-2S+RM

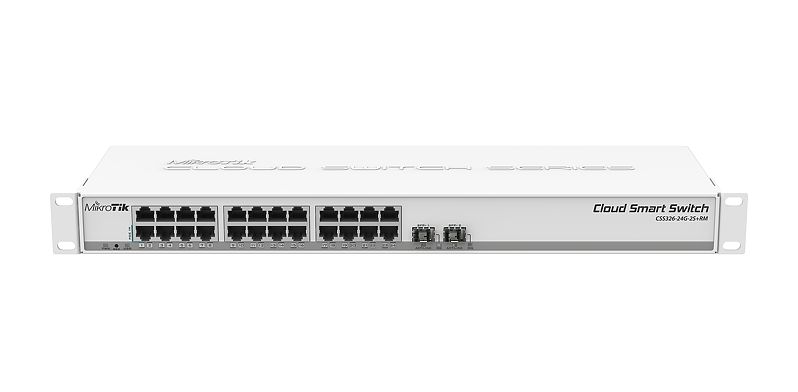

Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Product specifications
| Details | |
|---|---|
| Product code | CSS326-24G-2S+RM |
| 10/100/1000 Ethernet ports | 24 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 10 V - 30 V |
| Dimensions | 440 x 144 x 44 mm |
| Operating System | SwOS |
| Tested ambient temperature | -40°C .. +70°C |
| Max Power consumption | 19W |
| SFP+ ports | 2 |
| Serial port | RJ45 |
| Storage type | FLASH |
| Storage size | 2 MB |
Switching results
| CSS326-24G-2S+RM | |||||||
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 65,476.2 | 33,523.8 | 10,338.3 | 42,345.9 | 3,576.1 | 43,427.8 |
| Switching | Non blocking Layer 2 capacity | 65,476.2 | 67,047.6 | 10,338.3 | 84,691.7 | 3,576.1 | 86,855.7 |
| Switching | Non blocking Layer 1 throughput | 65,476.2 | 44,000.0 | 10,338.3 | 44,000.0 | 3,576.1 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 65,476.2 | 88,000.0 | 10,338.3 | 88,000.0 | 3,576.1 | 88,000.0 |
Support & Downloads:
Ταχύτητα Θυρών:
- 1Gbps
- 10Gbps
Θύρες Ethernet:
24
Θύρες SFP+ (10G):
2
Input Voltage:
- 10-30VDC
Rackmount:
Indoor/Outdoor:
Indoor
PoE In:
Dual PSU:
