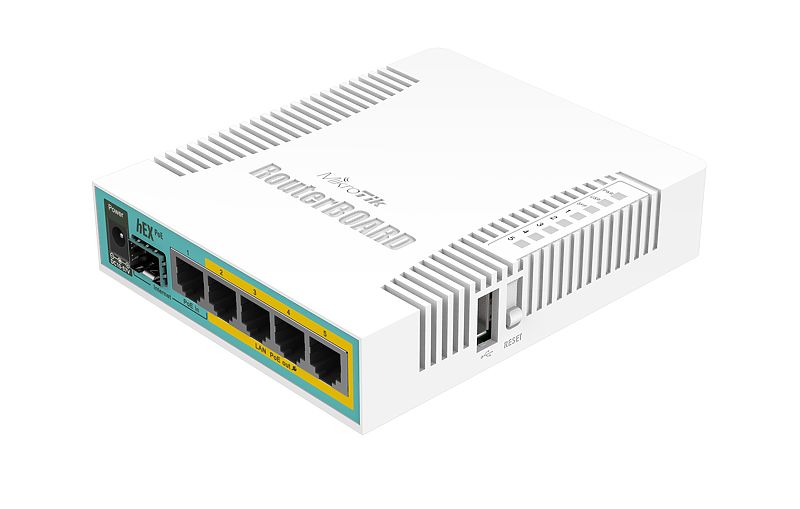

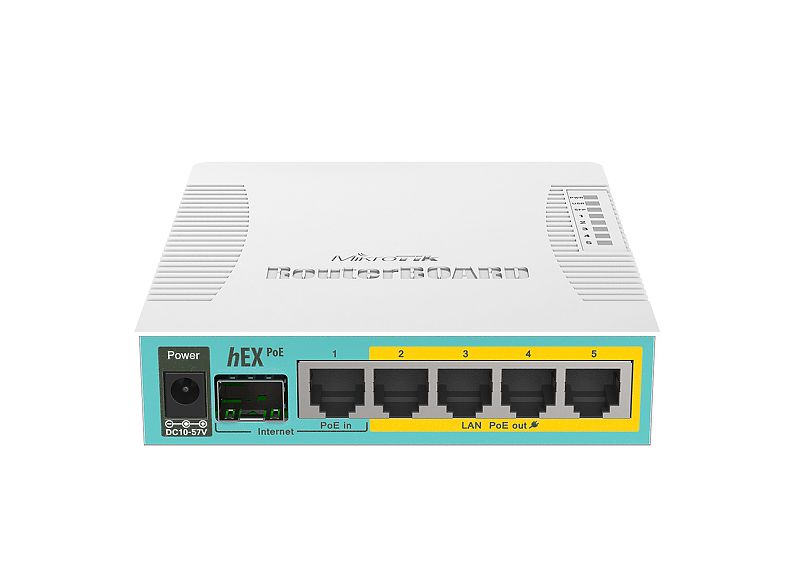

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Specifications
Details | |
---|---|
Product code | RB960PGS |
Architecture | MIPSBE |
CPU | QCA9557 |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
License level | 4 |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40 + 70 C |
Powering
Details | |
---|---|
Max Power consumption | 9W |
PoE in | Passive PoE |
PoE out | 802.3af/at |
PoE in input Voltage | 12-57 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Fiber
Details | |
---|---|
SFP ports | 1 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Included parts
Ethernet test results
RB960PGS | QCA9557 (800Mhz) 1G all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 161.9 | 1,966.1 | 401.5 | 1,644.5 | 542.3 | 277.7 |
Bridging | 25 bridge filter rules | 143.2 | 1,739.0 | 145.5 | 596.0 | 146.2 | 74.9 |
Routing | none (fast path) | 161.9 | 1,966.1 | 396.3 | 1,623.2 | 521.7 | 267.1 |
Routing | 25 simple queues | 161.9 | 1,966.1 | 217.2 | 889.7 | 216.0 | 110.6 |
Routing | 25 ip filter rules | 74.6 | 905.9 | 78.0 | 319.5 | 76.5 | 39.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Support & Downloads
- 1Gbps
- IEEE 802.3at/af - PoE+ (48V)
- 24V Passive PoE
- 10-57VDC
