Product description

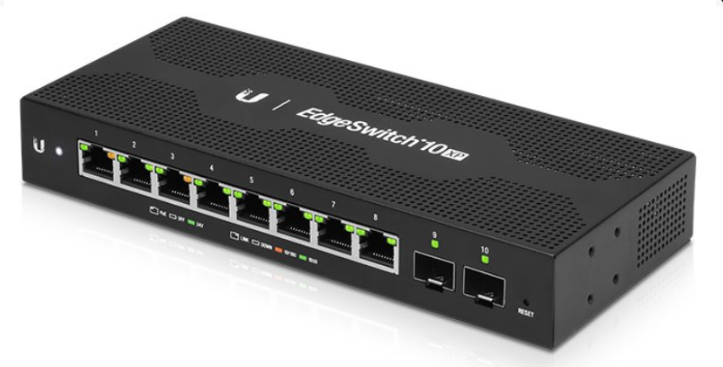

The EdgeSwitch 10XP is the ideal WISP device for which it is the best affordable solution in the SFP managed POE switch category. The device is equipped with 8 Gigabit Ethernet ports. On all ports, the switch offers POE Out function. Thanks to the two SFP ports, there is no problem with optical connectivity. The redesigned web interface offers intuitive control. Device management is possible managed also over Ubiquiti Network Management System (UNMS).

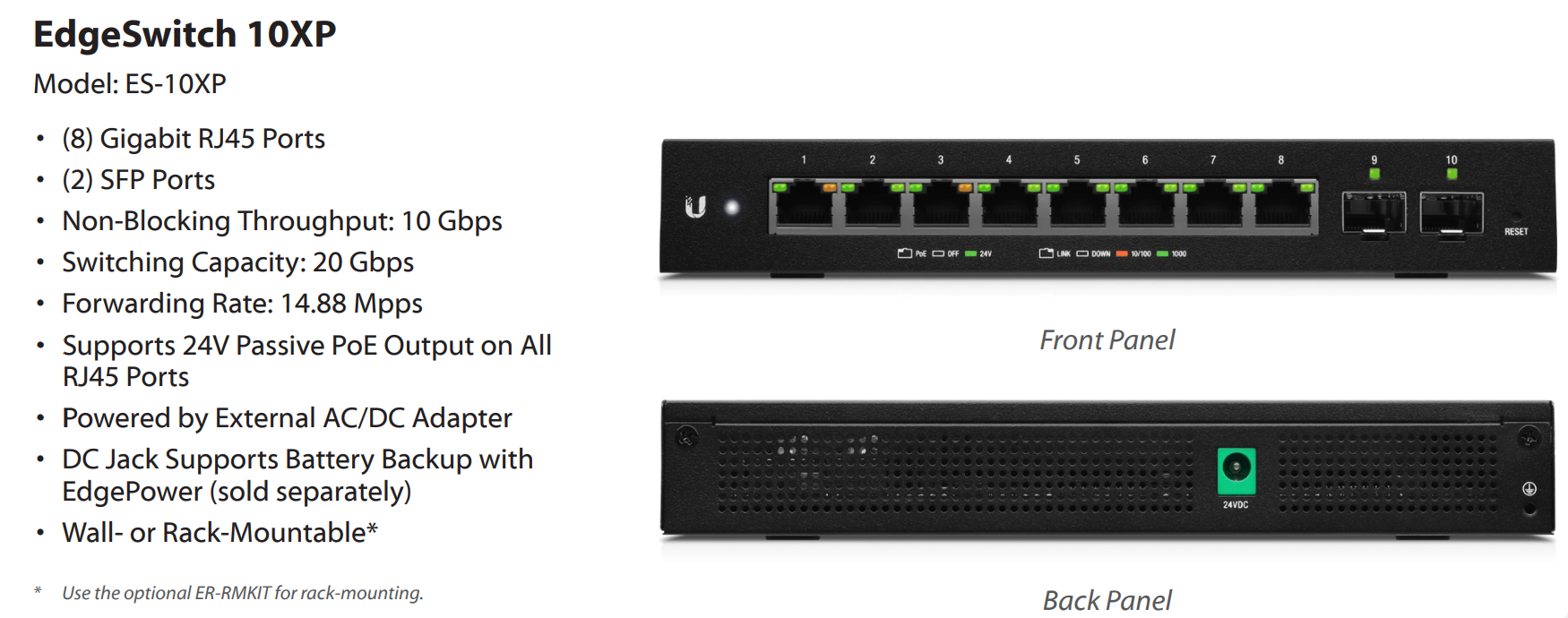

Device properties
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
- (8) POE Out ports
- Powering over external DC adapter
- Wall or Rack mountable (for rack mountig use optional ER-ERMKIT)
Package contains
- Device
- Power adapter 24V / 2.5A
- Power cord
- Screws
Technical parameters
Connectors and Interfaces | |
LAN speed: | (8) 10/100/1000Mbps |
Gigabit LAN: | Yes |
SFP/SFP+ speed: | (2) 1000Mbps |
General | |
Packet forwarding rate [Mpps]: | 14,9 |
Switchning capacity [Gbps]: | 20 |
Physical characteristics | |
Design: | Desktop |
Fans: | Without fan |
Chassis design: | Metal |
Buttons: | Reset |
Operating temperature [°C]: | -10 up to 50 |
Weight [g]: | 500 |
Depth [mm]: | 90 |
Width [mm]: | 207 |
Height [mm]: | 31 |
Power | |
Max. power consumption [W]: | 8 |
Power type: | DC connector |
PoE type: | Output |
PoE standards: | Passive 24V |
PoE Out ports: | 8 |
PoE budget [W]: | 60 |
Power via connector/terminal: | 9 .. 30V DC |
Software | |
Web management: | Yes |
Features: | VLAN, QoS |
Default IP address: | 192.168.1.20 |
Default login and password: | ubnt / ubnt |
Σχετικά Αρχεία:
Ταχύτητα Θυρών:
- 1Gbps
Θύρες Ethernet:
8
Θύρες SFP:
2
Θύρες PoE:
8
Τύπος PoE:
- 24V Passive PoE
Max PoE Power per Port:
15W
Max Total PoE Power:
51-60W
Input Voltage:
- 24VDC
- 10-30VDC
Rackmount:
Indoor/Outdoor:
Indoor
PoE In:
Dual PSU:
