1Gbps,
4,
3,
24V Passive PoE,
24W,
1-50W,
24VDC,
Outdoor,
PoE In
Please sign in so that we can notify you about a reply
Εγγύηση:
- 2 χρόνια
Product description

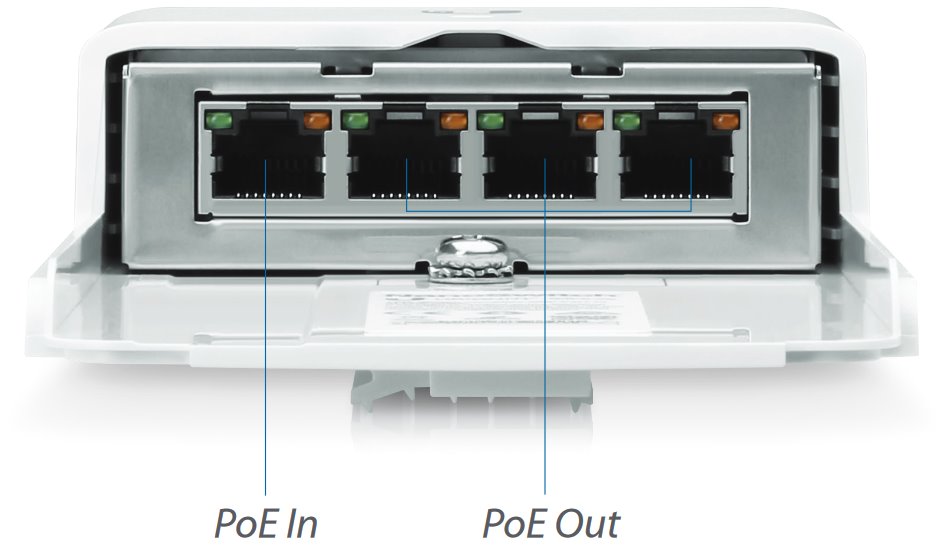

PoE Passthrough
PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.

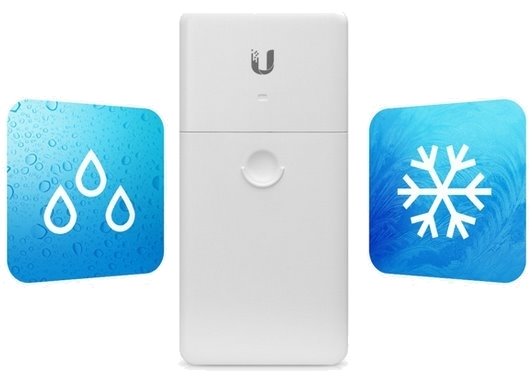

Designed for Outdoor Durability
The NanoSwitch features an outdoor weatherproof form factor. Operating Temperature: -30 to 70° C (-22 to 158° F).
Package contains
- Device
- Screw
- (2) Metal ring
Technical parameters
Connectors and Interfaces | |
LAN speed: | (4) 10/100/1000Mbps |
General | |
Switchning capacity [Gbps]: | 4 |
Physical characteristics | |
Design: | Outdoor |
Fanless: | Yes |
Chassis design: | Plastic |
Operating temperature [°C]: | -30 up to 70 |
Depth [mm]: | 32 |
Width [mm]: | 94 |
Height [mm]: | 196 |
Power | |
Max. power consumption [W]: | 1,5 |
Power over Ethernet: | 21 .. 26V DC |
Power type: | PoE |
PoE standards: | Passive 24V |
PoE Out ports: | 3 |
PoE budget [W]: | 24 |
Σχετικά Αρχεία:
Ταχύτητα Θυρών:
- 1Gbps
Θύρες Ethernet:
4
Θύρες PoE:
3
Τύπος PoE:
- 24V Passive PoE
Max PoE Power per Port:
24W
Max Total PoE Power:
1-50W
Input Voltage:
- 24VDC
Rackmount:
Indoor/Outdoor:
Outdoor
PoE In:
Dual PSU:
