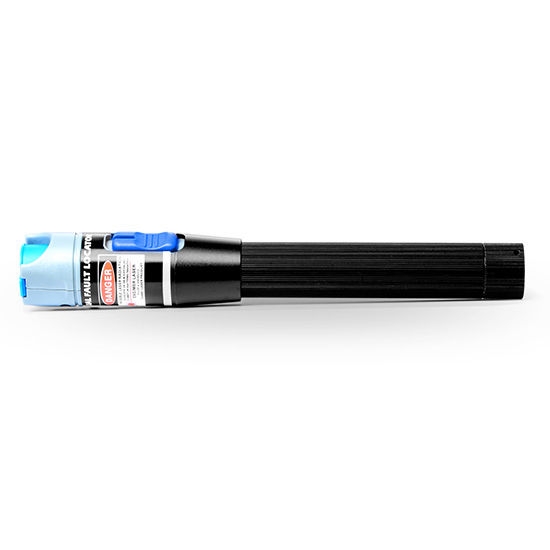

FVFL-204 Pen Shape Visual Fault Locator

FVFL-204 Pen Shape Visual Fault Locator is a compact but powerful fiber optical cable test tool, with an output power up to 1mW, which can be used to locate sharp bends & breaks in jacket or bare fiber within 5km. It can also be applied to identify the connectors in patch panels and identify the fibers during splicing operation. The choice of a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location.

Please note: Due to import restrictions on lasers, shipments will only be arranged for countries that allow imports.

Description

• Wavelength: 650nm ± 20nm
• Output Power: 1mW
• Dynamic Distance: <5km
• Housing Material: Metal
• Connector: 2.5mm Universal Connector
• Operation Mode: Pulsed (2Hz) and CW
• Laser Safety Rating: Class IIIa
• Emitter Type: Laser Diode
• Operation Temperature: 0°C to +60°C
• Storage Temperature: -20°C to +70°C
• Dimensions: 175x26x26mm
• Weight: 75g
• Battery Type: 2 x AA
• Battery Life: ≥ 18 hours
