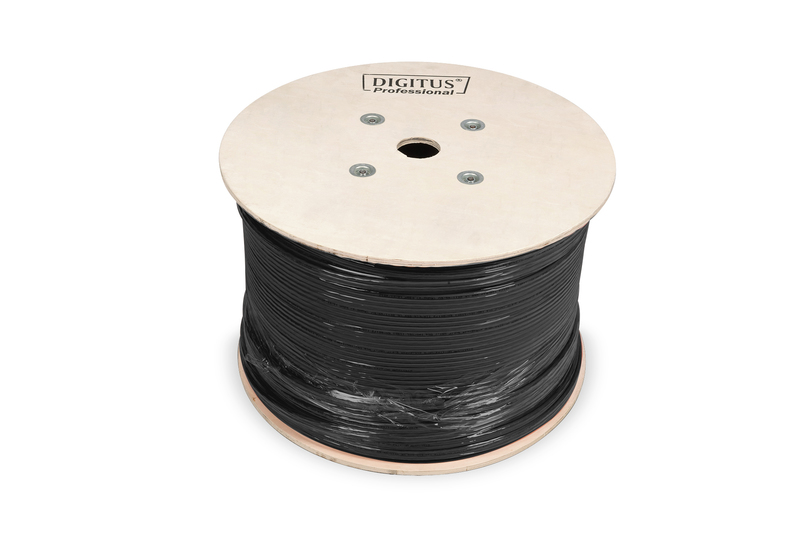

Digitus SFTP 1000m Cat7 outdoor/direct burial 1200Mhz - (DK-1741-VH-10-OD)

855,00
(1.060,20 με ΦΠΑ)
007.1189
Μη Διαθέσιμο

Description

CAT 7 S-FTP outdoor installation cable, 1200 MHz PE, inner Eca (LSZH), AWG 23/1,1000m, sx, bl&pu

Future-oriented standards and high-end quality for your network.

  • 10GBit Ethernet
  • 1200 MHz transmission frequency
  • Permanent link certified
  • PoE Power over Ethernet support
  • PE outer jacket, CPR class Eca inner jacket

The Digitus® Professional Cat.7 S/FTP burial installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The cable has a PE outer jacket and a halogen free inner jacket and is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for installations in dry or wet areas, outdoor or ground. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Technical Details

  • Physical properties:
  • Conductor: Bare annealed copper, solid AWG 23/1
  • Insulation: SFS-PE (Foam-Skin Polyethylene)
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Individual pair shielding: Aluminum foil, providing 100 % coverage
  • Overall shielding: Copper wire braid
  • Outer sheath: PE (Polyethylene); UV resistant
  • Outer sheath diameter (nominal): 0.50 mm nominal
  • Outer sheath color: Black (RAL 9005)
  • Mechanical properties:
  • Tensile loading: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Shipping- and storage temperature range: -20 °C up to +60 °C
  • Operating temperature range: -50 °C up to +60 °C
  • Installation temperature range: 0 °C up to +60 °C
  • Overall diameter Simplex (nominal): 8.5 mm nominal (Eca)
  • Weight (kg/km): 66.5 kg/km
  • Electrical properties:
  • Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-600 MHz
  • Capacitance: 45 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
  • DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
  • Voltage resistance: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Signal propagation delay: 450 nS/100 m max.
  • Delay difference: 10 nS/100 m max.
  • Separating class: “d” acc. to EN 50174-2
  • NVP: 79%
  • Assortment: Twisted Pair Installation Cables
  • Length: 1000 m
  • Category: CAT 7
  • Color: black
  • CPR: Eca
  • Jacket: PE
  • Shielding: S-FTP, pairs in metal foil and braid shielding
  • Structure: 4 x 2 AWG 23/1, solid twisted pair
MPN
:
DK-1741-VH-10-OD
EAN
:
4016032354130

Datasheet (DK-1741-VH-10-OD_datasheet_en_Datasheet_EN_20200115.pdf, 535 Kb) [Λήψη]
