Product description

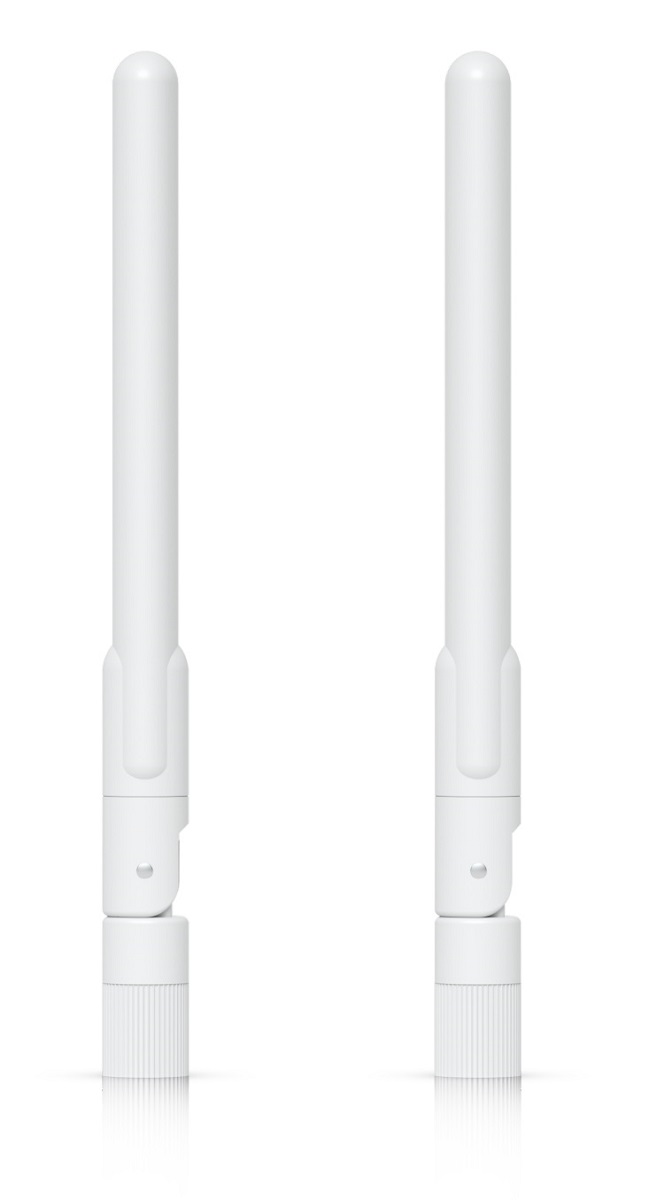

UK Ultra Omni Antennas are a specially designed dual-band omnidirectional antennas with 360° beamwidth and 3 dBi gain in the 2.4 GHz band and 4 dBi in the 5 GHz band. They are intended for installation in combination with a UniFi access point UK-Ultra (UniFi Swiss Knife Ultra). It is possible to install the antennas outside or inside. For inside use there is a stand available (included with the antennas) to use the UK-Ultra for example on the desk.

Technical parameters

Wireless features

MIMO, SISO:2 x 2
Wireless frequency:2.4 + 5 GHz (dual band)
Azimuth beam width (-6dB) [°]:360
Antenna gain [dBi]:3, 4

Connectors and Interfaces

RF connectors:(2) RSMA male

Physical characteristics

Material:Plastic
Weight [kg]:42
Width [mm]:15
Height [mm]:154
Depth [mm]:15
