Product description

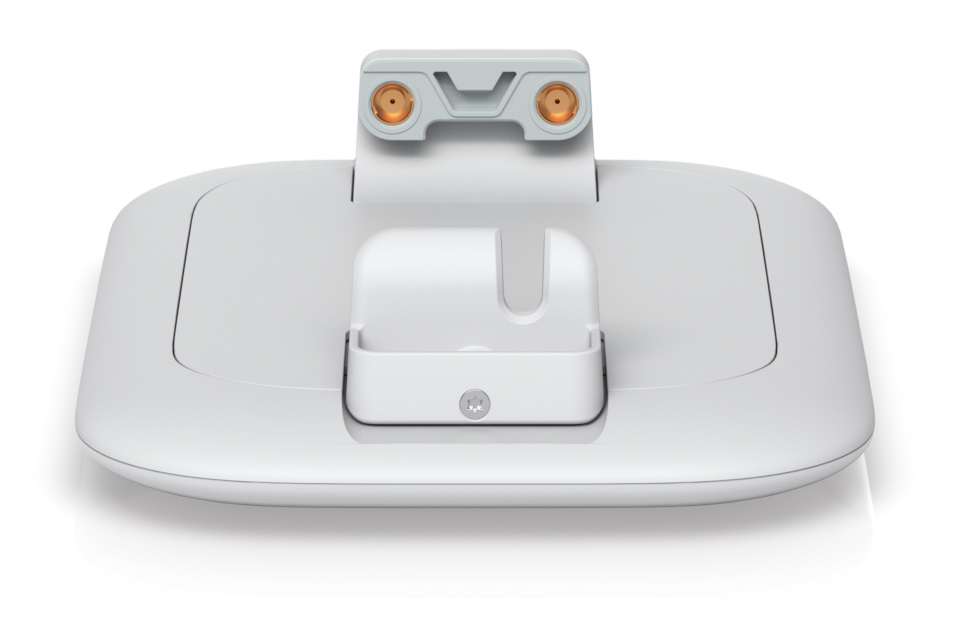

UK Ultra Panel Antenna is a specially designed dual-band sector antenna with 90° beamwidth and 10 dBi gain in the 2.4 GHz band and 15 dBi in the 5 GHz band. It is intended for installation in combination with a UniFi access point UK-Ultra (UniFi Swiss Knife Ultra). Thanks to the sophisticated design, it is simply slid onto the access point and secured. Due to the IPx6 certification and the use of UV stable polycarbonate, it is possible to install the antenna in outdoor areas and thus ensure the coverage of larger areas than the UK-Ultra alone when using integrated antennas.

Technical parameters

Wireless features

MIMO, SISO:2 x 2
Wireless frequency:2.4 + 5 GHz (dual band)
Azimuth beam width (-6dB) [°]:90
Antenna type:Sector
Antenna gain [dBi]:10, 15

Connectors and Interfaces

RF connectors:(2) RSMA male

Physical characteristics

Designed for mast diameter [mm]:25 up to 50
Wind load [km/h]:200
Protection class:IPX6
Purpose:Outdoor
Material:Aluminum, UV stabilized polycarbonate
Weight [kg]:0,45
Width [mm]:138
Height [mm]:207
Depth [mm]:43
