Ubiquiti AM-5G16-120, 16dBi 120deg 2x2 MIMO BaseStation Sector Antenna
Please sign in so that we can notify you about a reply

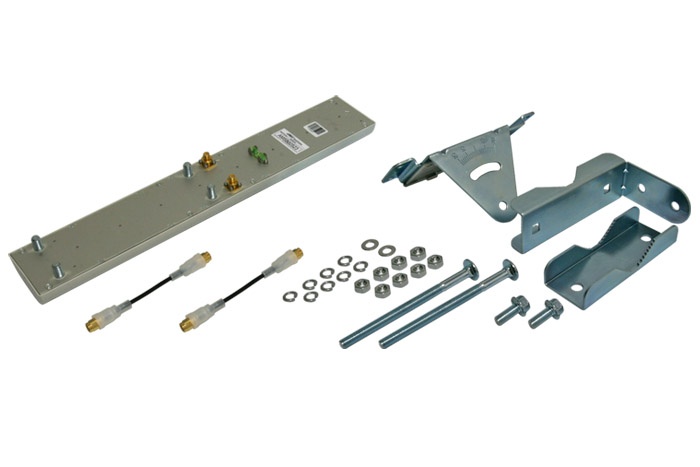

| World Class Antenna Designs Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included. |

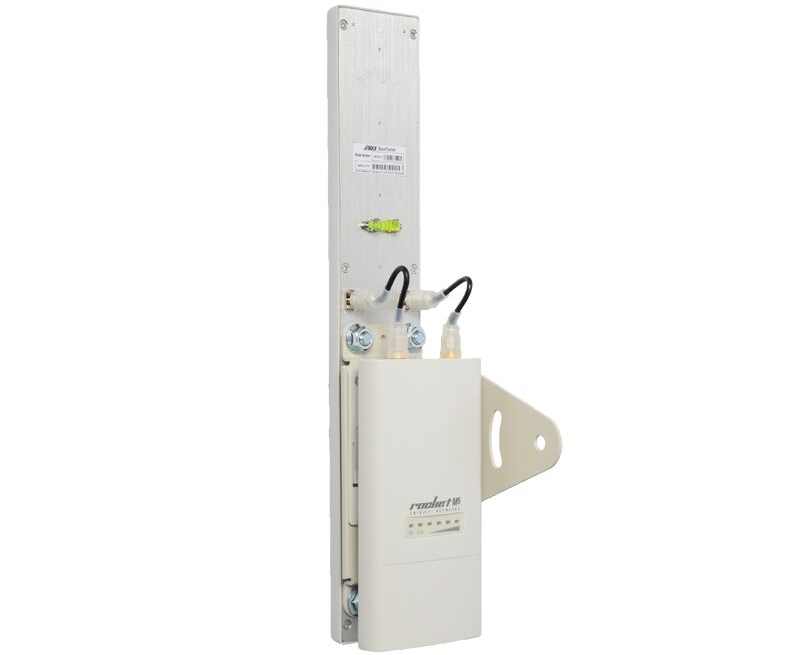

| Rocket M Seamlessly Integrates with AirMax BaseStation Sectors Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas. |
| Frequency range | 5150MHz - 5900MHz |
| Gain | 15.0 - 16.0 dBi |
| Polarization | Dual Linear |
| Cross-pol Isolation | 22dB min |
| Max VSWR | 1.5:1 |
| Hpol Beamwidth (6dB) | 137 deg. |
| Vpol beamwidth (6dB) | 118 deg. |
| Elevation Beamwidth | 8 deg. |
| Electrical Downtilt | 4 deg. |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 367mm x 63mm x41mm |
| Weight | 1.1 kg |
| Windloading | 120mph |
