Product description

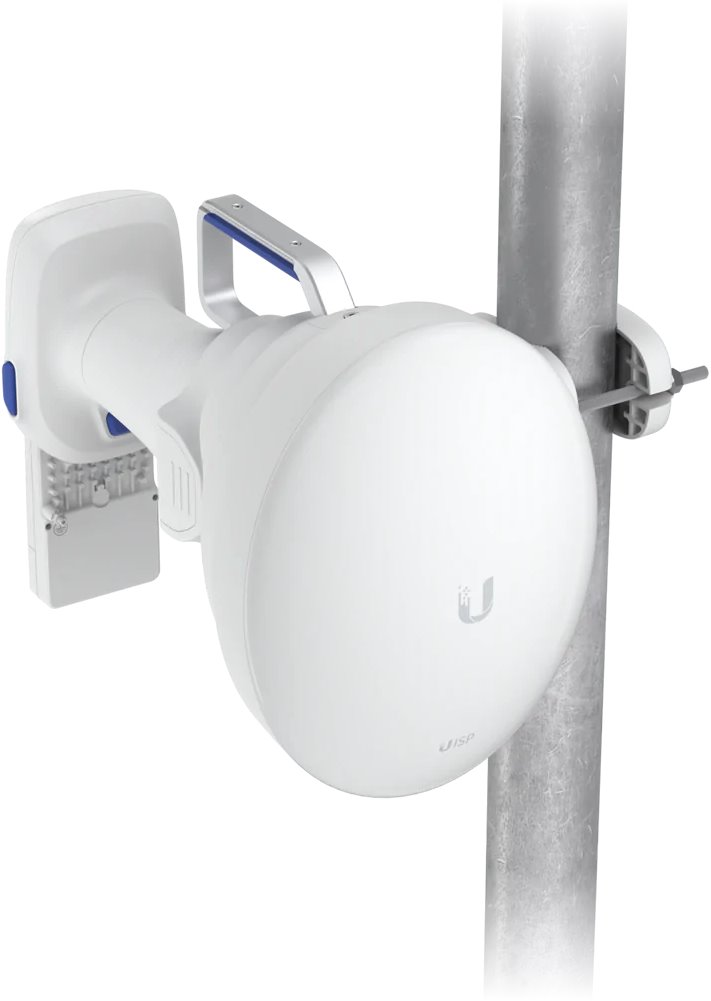

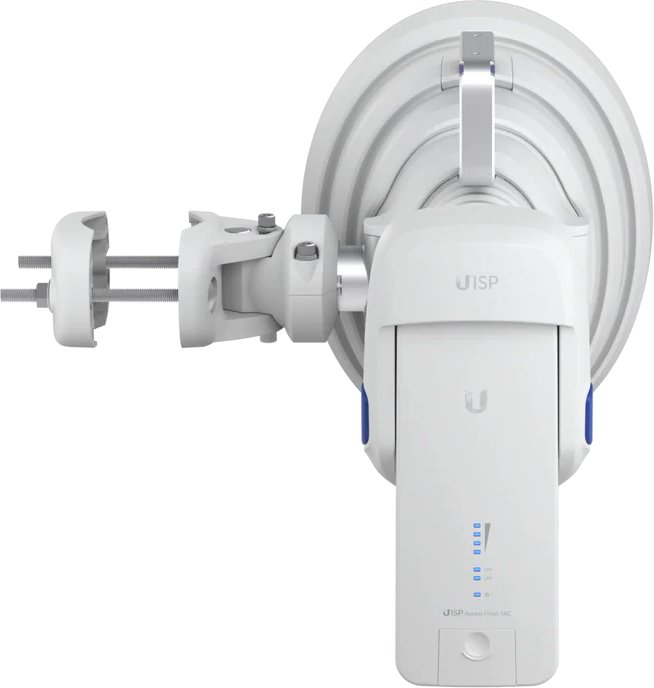

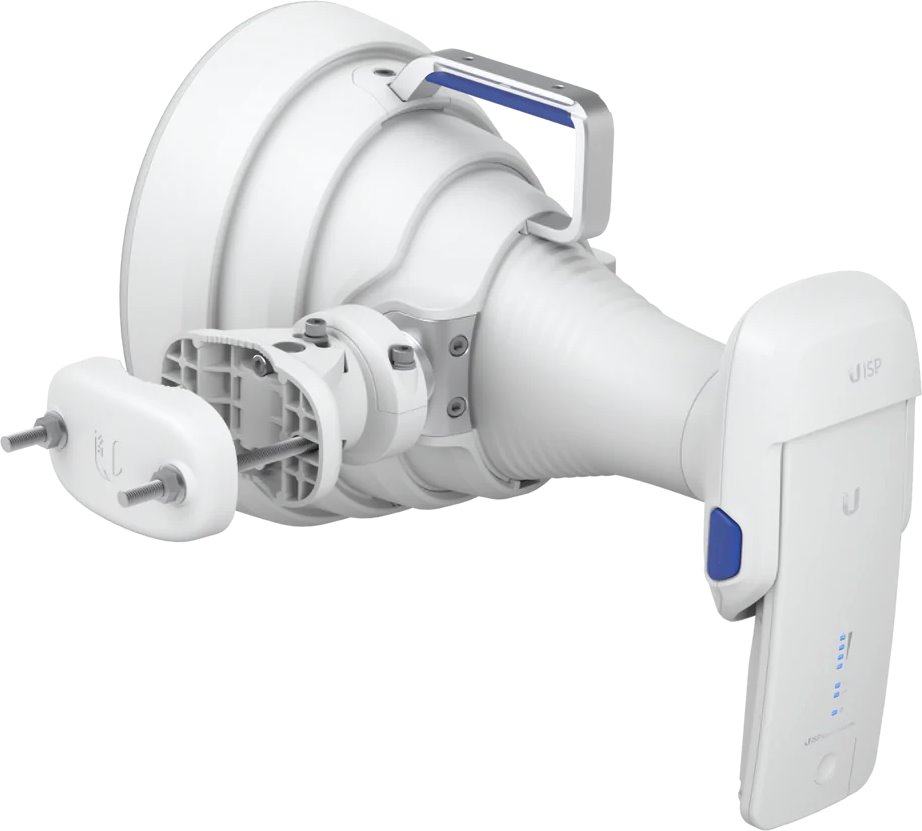

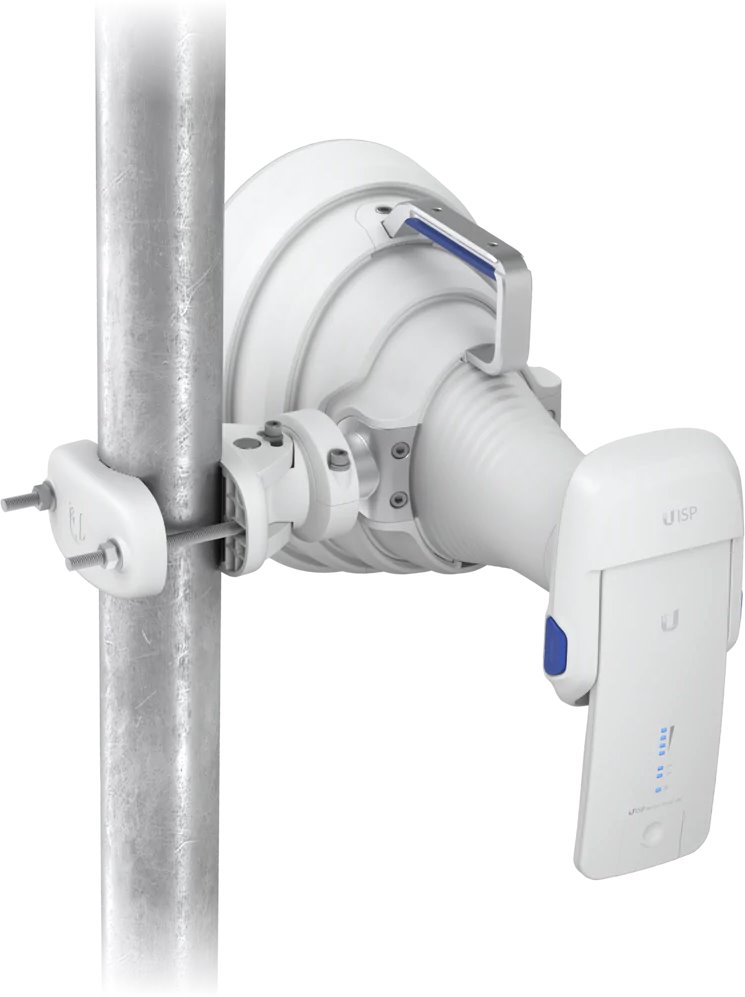

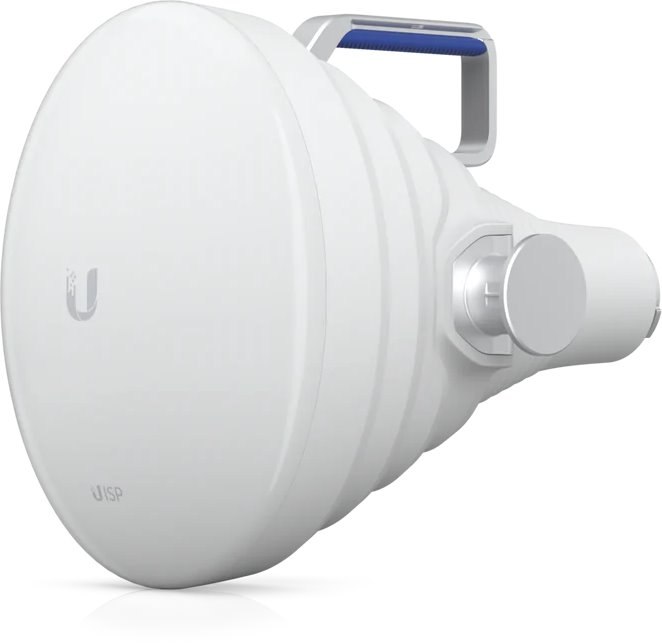

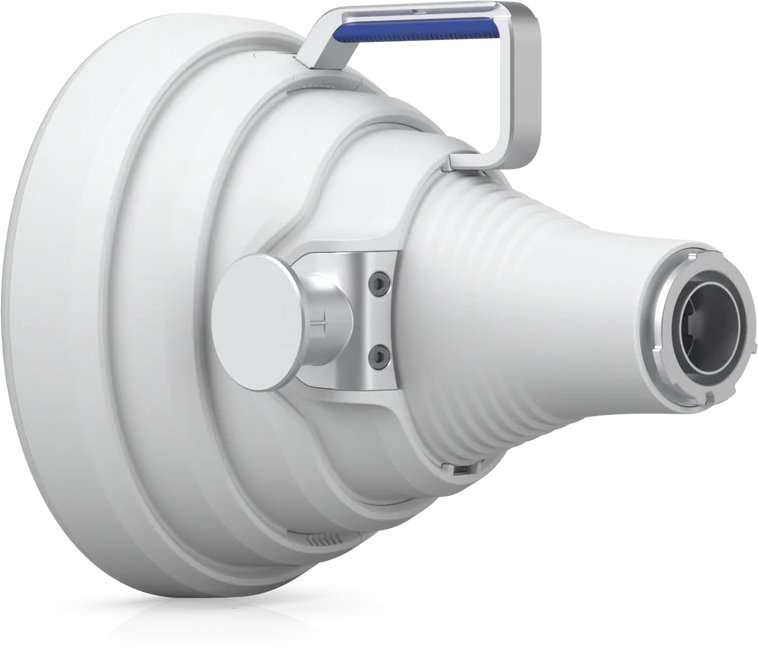

UISP-Horn is a 5 GHz sector horn antenna from Ubiquiti Networks with an asymmetric 30°/25° (H/V) radiation angle, gain 19.5 dBi , with a special connector including a WaveGuide adapter for selected transmitter units from Ubiquiti Networks (AF-5XHD, RP-5AC-Gen2, LTU-Rocket). This antenna offers the perfect combination of features and functions that address the main weaknesses of today's mainstream sector antennas. The UISP Horn also has a latch on each side to secure the radio unit.

Key Features

• Antenna gain 19.5 dBi
• Asymmetric beam angle 30°/25° (H/V)
• Wide frequency spectrum (5.150 - 6.875 GHz)
• PtMP connection range 15+ km
• Die cast polycarbonate housing UV stabilized for increased durability and weather resistance
• Convenient mast mounting
• Two side latches to secure the radio connection
• Compatibility: AF-5XHD, RP-5AC-Gen2, LTU-Rocket

Package contents

• Sector antenna
• Holder
• Bolts and Nuts
• Imbus
• Reduction to radio unit

Technical parameters

Wireless features

Polarization:VH
VSWR:< 2,0
F/B ratio [dB]:40
Cross-Pol Isolation [dB]:20
Wireless frequency:5 GHz
Elevation beam width (-6dB) [°]:25
Azimuth beam width (-6dB) [°]:30
Antenna type:Sector

Connectors and Interfaces

RF connectors:WaveGuide, (1) SMA male, (2) RSMA male

Physical characteristics

Designed for mast diameter [mm]:25 up to 70
Wind load [km/h]:200
Protection class:IPX6
Purpose:Outdoor
Material:Aluminum, UV stabilized polycarbonate
Weight [kg]:3,9
Width [mm]:224
Height [mm]:282
Depth [mm]:380
