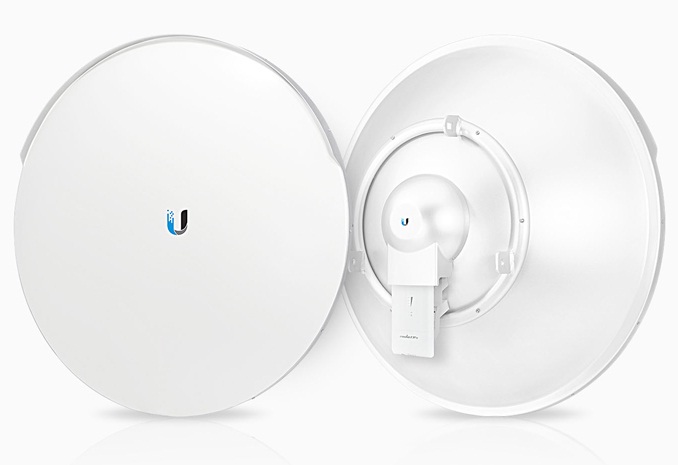

The RocketDish™ac Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios for Point‑to‑Point (PtP) bridging and backhauls. They are compatible with the RocketM5; however, optimal performance requires the Rocket5ac..
Technical specification:
Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in)* |
Weight | 7.6 kg (16.76 lb) (Mount Included)** |
Frequency Range | 5.1 - 5.8 GHz |
Gain | 31 dBi |
Max. VSWR | 1.4:1 |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
Polarization | Dual-Linear |
Cross-pol Isolation | 35 dB Min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
