Ubiquiti UDM, UniFi Dream Machine, Dual Band WiFi AP + USG + UniFi Controller, 5xGigabit, Quad-Core 1.7GHz, 2GB, 3dBi, 23dBm, 300Mbps, 2x2 @ 2.4GHz & 4.5dBi, 26dBm, 1733Mbps, 4x4 @ 5GHz, MU-MIMO

330,64
(409,99 με ΦΠΑ)
034.0766
Μη Διαθέσιμο

Εγγύηση:

  • 2 χρόνια

Product description

The UniFi Dream Machine from Ubiquiti Networks is a complex network solution for homes and small offices. It is a very powerful device with 4-core CPU, 2GB RAM and combines all the necessary functions into one elegant box that manages:

  • Dual Band WiFi AP supports 802.11a/b/g/n/ac/ac-wave2 (4x4), 1733 + 300Mbps
  • Manageable 4-ports Gigabit switch with VLAN support
  • UniFi Security Gateway - offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
  • UniFi Controller - The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic.

UBNT UDM - UniFi Dream Machine

All-in-One device

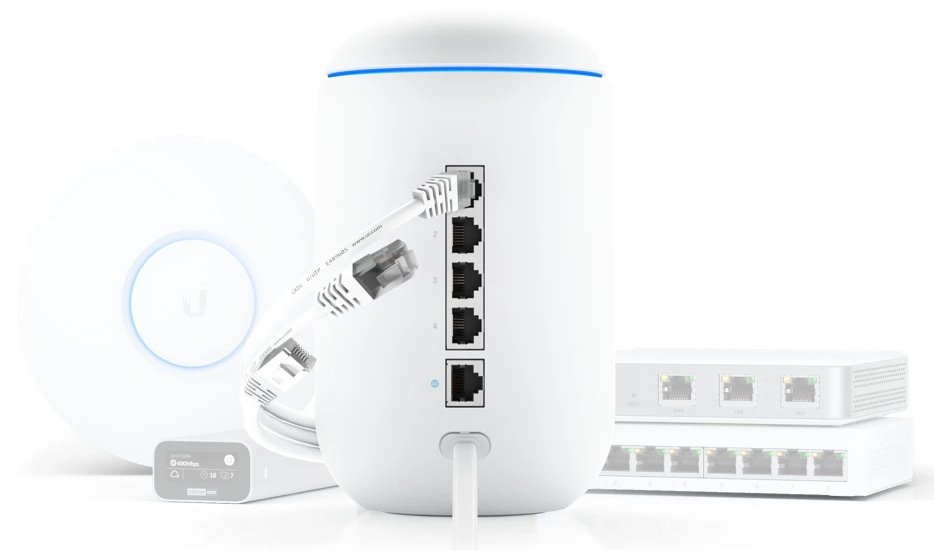

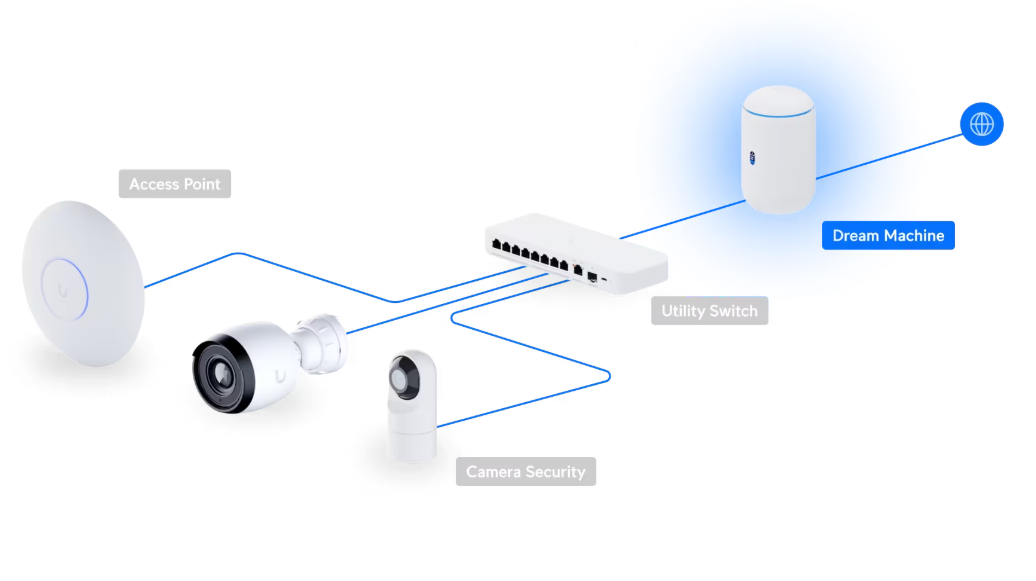

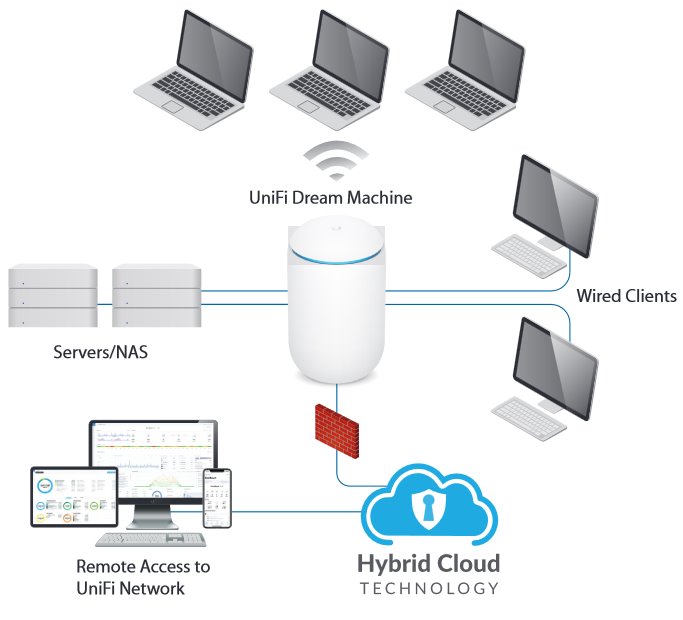

The UDM is the ideal first UniFi device. It’s easy to use and still offers all the benefits of UniFi for homes and businesses. Easily expand the UDM by adding more UniFi Switches or APs while managing the network with the integrated controller.

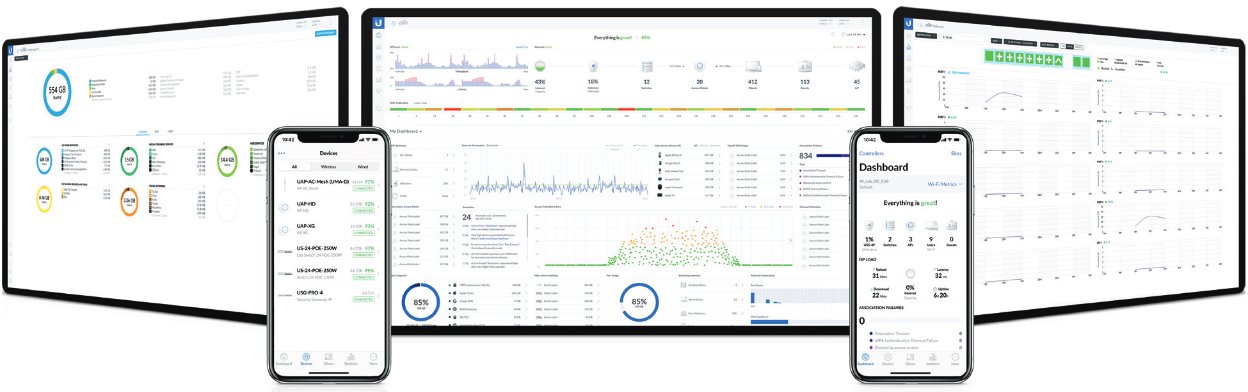

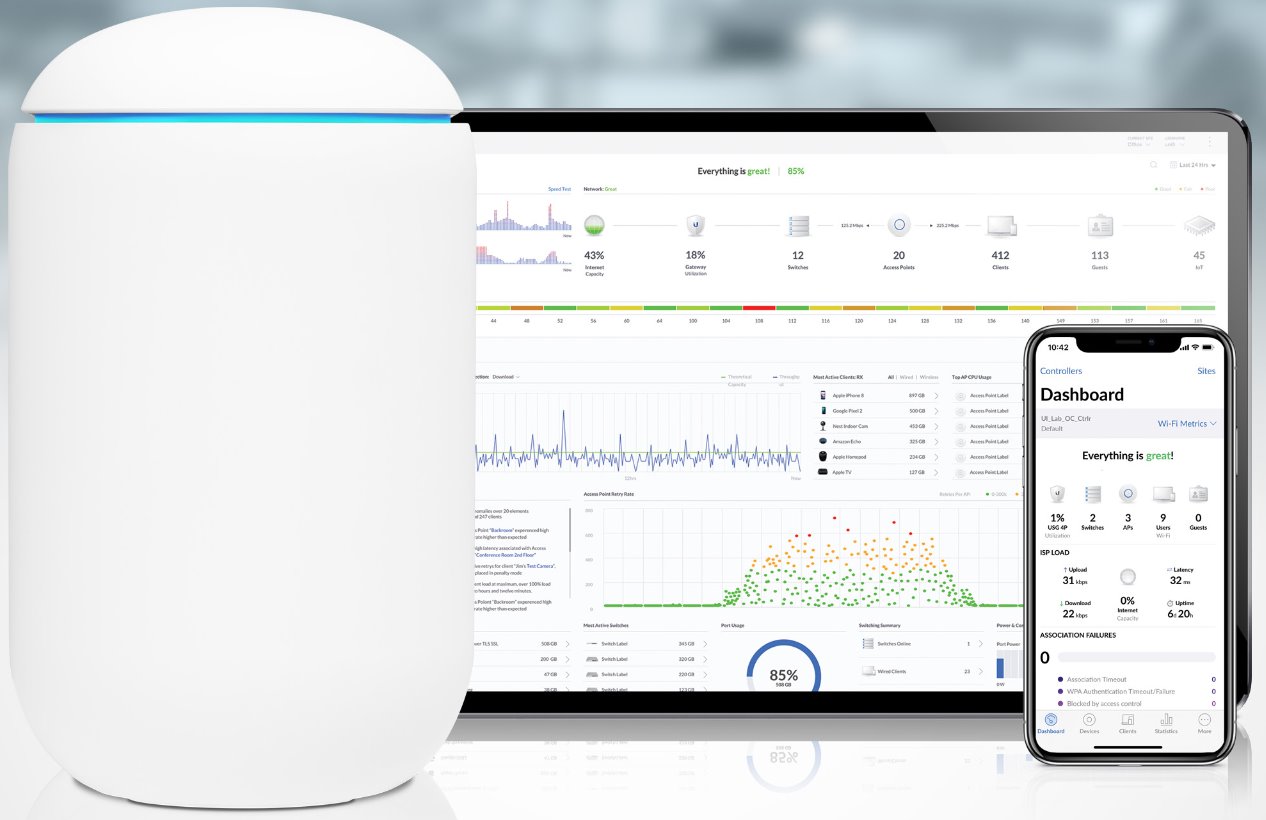

The UniFi Network app and UniFi cloud provide remote access to the controller from anywhere. The entire network can be kept updated and safe with automated software updates, which are free of charge.

UBNT UDM - UniFi Dream Machine

Benefits of UniFi solutions

  • Zero Handoff Roaming - uninterrupted transition between APs
  • Wireless uplink (fits where the data cable cannot be reached)
  • Up to 8 SSID
  • Detailed traffic statistics
  • Guest network
  • Load balance of clients
  • Speed limit for each SSID

UBNT UDM - UniFi Dream Machine

Package contains

  • Device
  • Power cord

Technical parameters

Connectors and Interfaces

WAN speed: (1) 10/100/1000Mbps
LAN speed: (4) 10/100/1000Mbps
Gigabit LAN: Yes

Hardware

RAM [MB]: 2048
CPU: Arm Cortex-A57
CPU frequency [MHz]: 1700

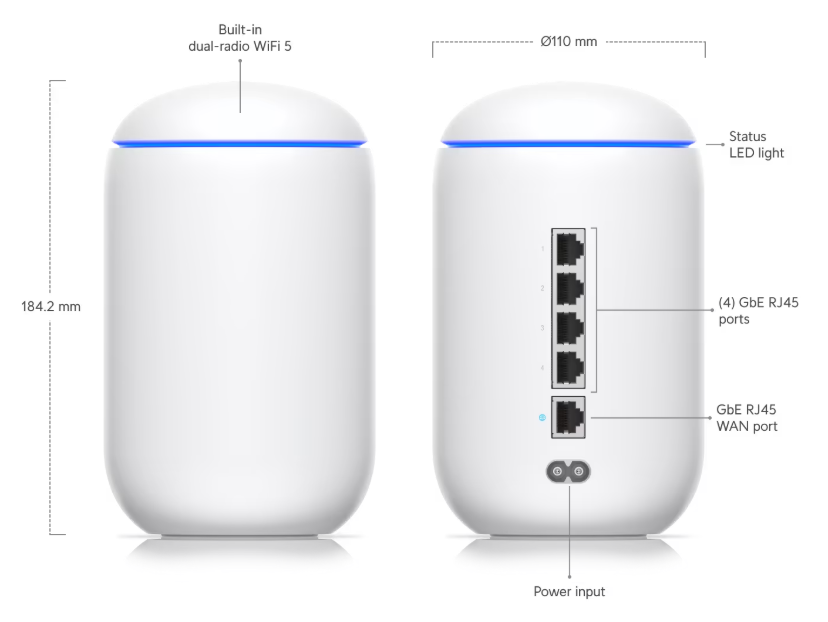

Physical characteristics

Design: Desktop
Purpose: Indoor
Fans: Without fan
Buttons: Reset
Operating temperature [°C]: -10 up to 45
Weight [g]: 1050
Depth [mm]: 110
Width [mm]: 110
Height [mm]: 184

Power

Max. power consumption [W]: 26
Power via connector/terminal: 230V AC

Software

Pre-installed controller: UniFi controller
Operating mode: AP Router
IPv6 support: Yes
Default IP address: 192.168.1.1
Default login and password: ubnt / ubnt

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO: Yes
Transmission speed - WiFi 2.4GHz [Mb/s]: 300
Transmission speed - WiFi 5GHz [Mb/s]: 1733
Tx power 2.4GHz [dBm]: 23
Tx power 5GHz [dBm]: 26
Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.1w/PMF
2.4GHz MIMO: 2 x 2
5GHz MIMO: 4 x 4
Type of antenna: Built-in
Internal antennas: 4
Roaming: Yes
Antenna gain [dBi]: 3, 4,5
MPN
:
UDM
EAN
:
0817882025966

Datasheet (udm_ds.pdf, 3,436 Kb) [Λήψη]
