Εγγύηση:

• 2 χρόνια

Description:

Wi-Fi 5 ACCESS POINT

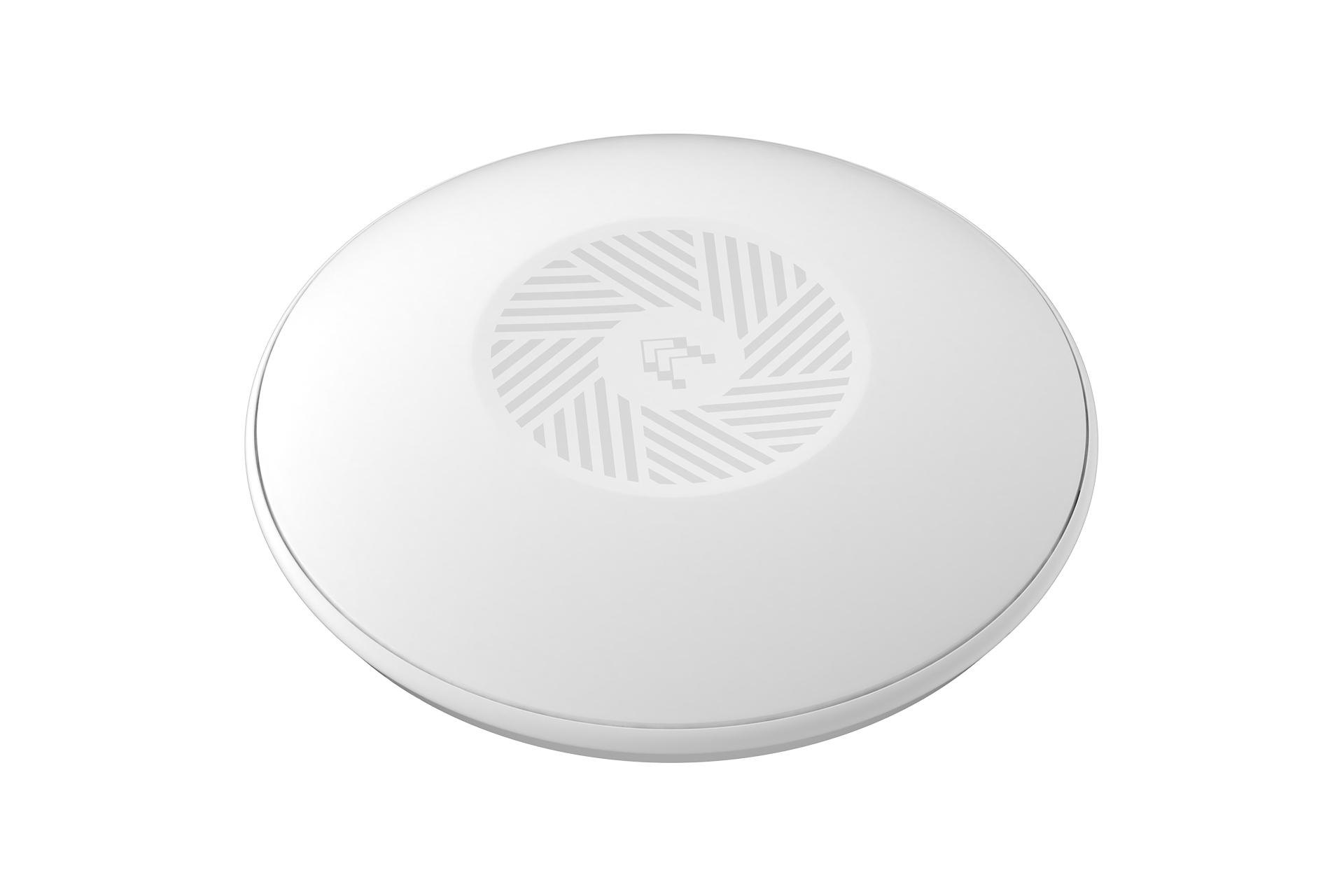

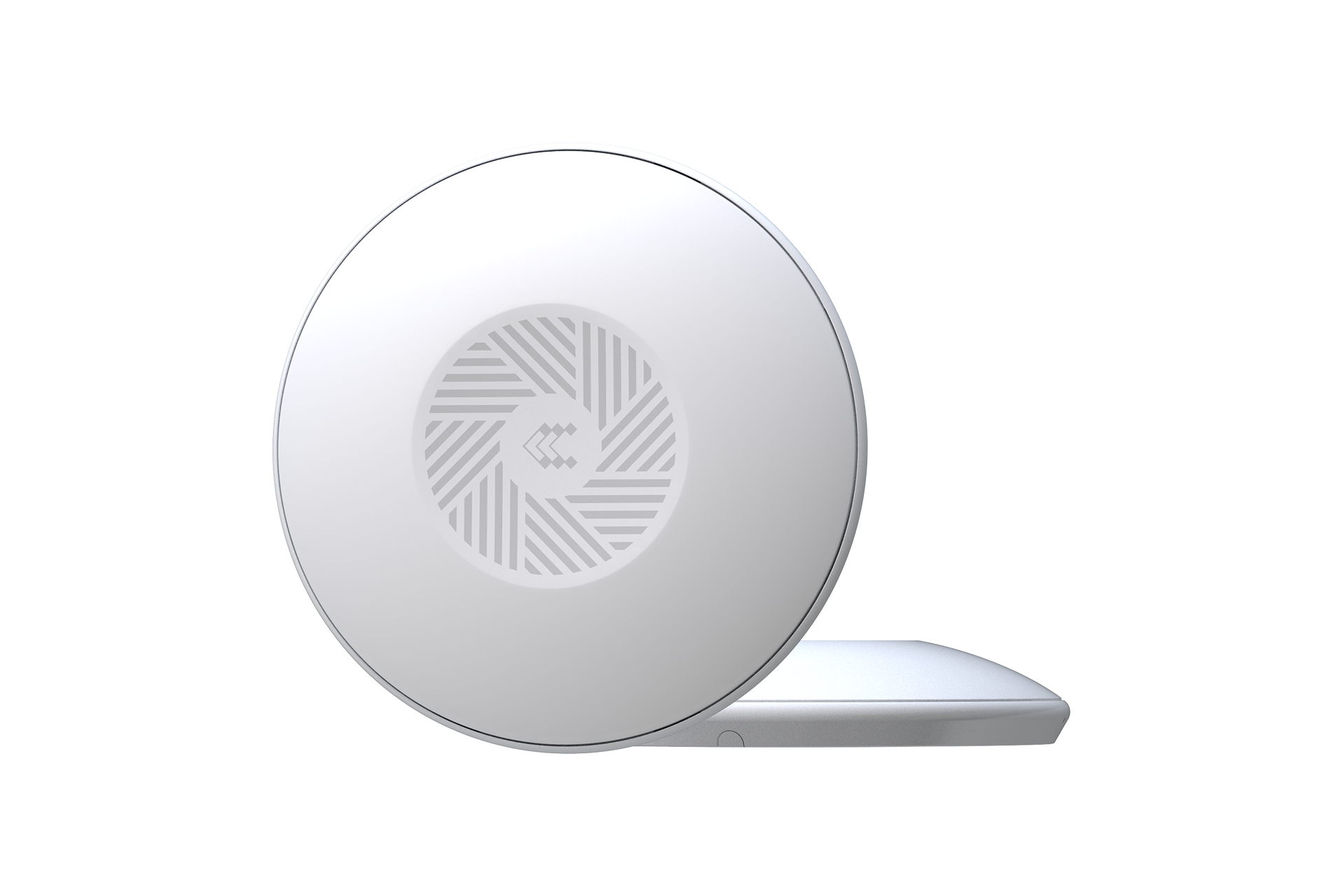

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

FEATURES:

WIRELESS

• Wireless mode

  802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)

• Wi-Fi security

  WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

• SSID/ESSID

  ESSID stealth mode (Hide SSID)

• Wi-Fi users

  Up to 100 simultaneous connections

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

  Whitelist, blacklist

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information.

ETHERNET

• Ethernet

  1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH

SECURITY

• Authentication

  SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator

• VLAN

  Tag-based VLAN separation

API

• Teltonika Networks Web API (beta) support

  Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

• WEB UI

  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log

• FOTA

  Firmware update from server, automatic notification

• SSH

  SSH (v1, v2)

• Email

  Receive email message status alerts of various services

• JSON-RPC

  Management API over HTTP/HTTPS

• RMS

  Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

• CPU

  MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc

• RAM

  256 MB, DDR3

• FLASH storage

  16MB, SPI NOR Flash

FIRMWARE / CONFIGURATION

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

• Factory settings reset

  A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating system

  RutOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

• GPL customization

  You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.

POWER

• Connector

  RJ45 Socket

• Input voltage range

  44.0 – 57.0 V

• PoE standards

  802.3af PoE Class 1

• Power consumption

  Idle: < 4 W / Max: < 5.5 W

PHYSICAL INTERFACES

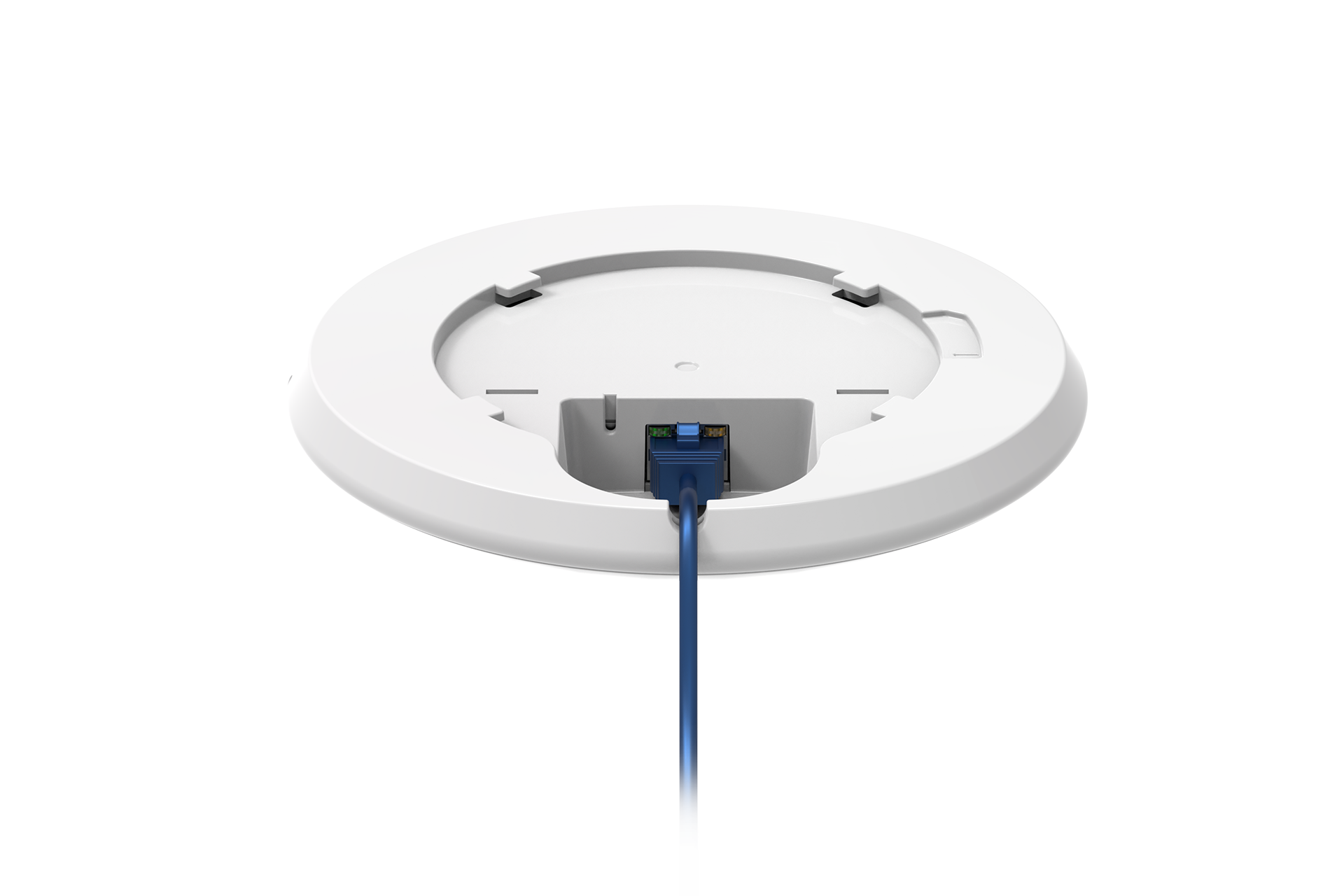

• Ethernet

  1 x RJ45 port, 10/100/1000 Mbps

• Status LEDs

  1 x Power LED (can be turned off from web-UI)

• Antennas

  2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi

• Antennas specifications

  2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional

  2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional

• Reset

  Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

• Casing material

  UV stabilized plastic

• Dimensions

  Ø 158 mm x 30 mm

• Weight

  190 g

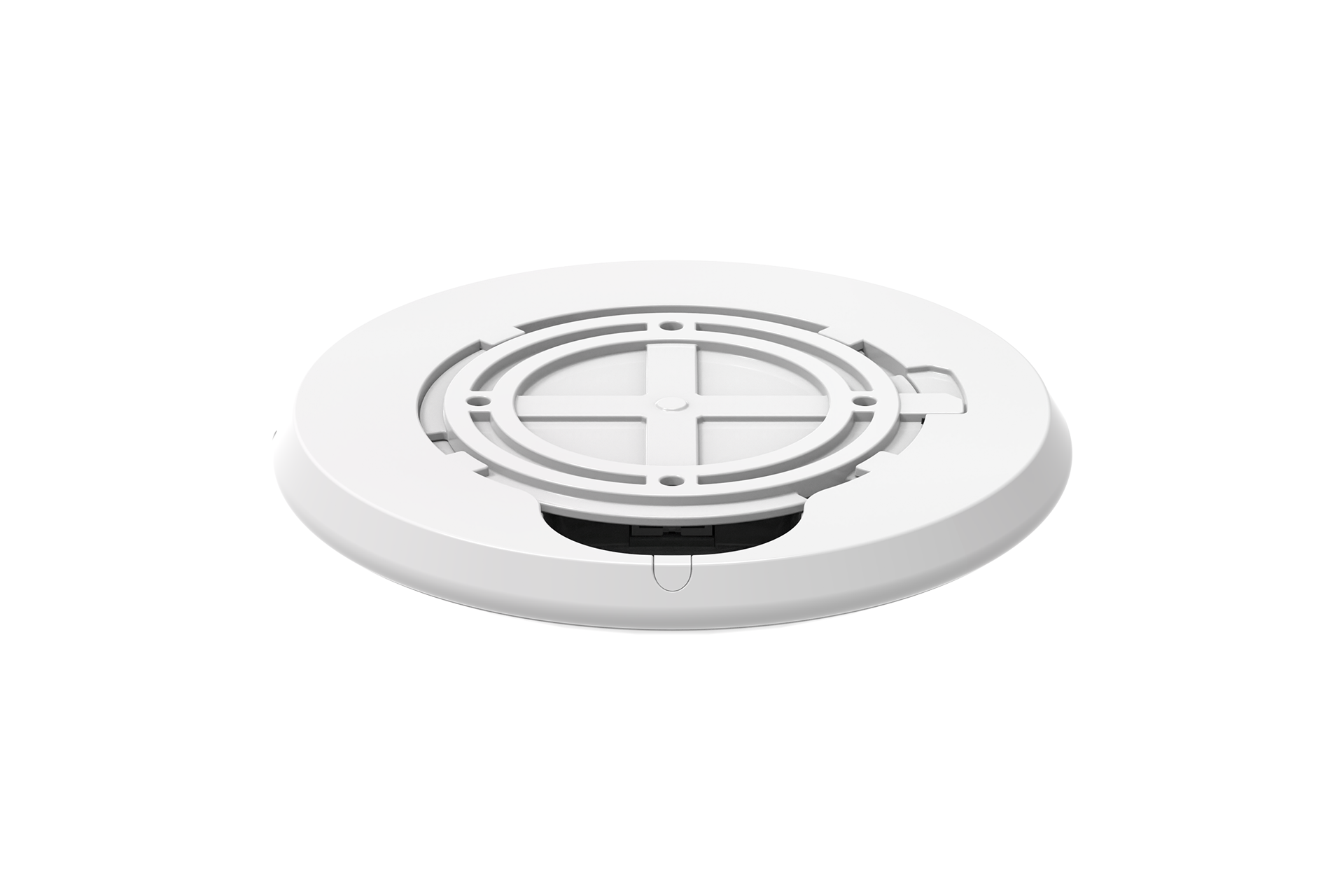

• Mounting options

  AP mounting bracket (for ceiling mount)

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

REGULATORY & TYPE APPROVALS

• Regulatory

  CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE

EMC EMISSIONS & IMMUNITY

• Standards

  EN 55032:2015+A11:2020

  EN 55035:2017+A11:2020

  EN 61000-3-3:2013+A1:2019+A2:2021

  EN IEC 61000-3-2:2019+A1:2021

  EN 301 489-1 V2.2.3

  EN 301 489-17 V3.2.4

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN IEC 61000-4-11:2020

RF

• Standards

  EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1

SAFETY

• Standards

  IEC 62368-1:2018

  EN IEC 62368-1:2020+A11:2020

  EN IEC 62311:2020

STANDARD PACKAGE*

• Access Point TAP200
• QSG (Quick Start Guide)
• Wi-Fi Information sticker
• Packaging box

*Standard package contents may differ based on standard order codes.
