Ubiquiti UAP-IW-HD, UniFi UAP In-wall HD, 1.8dBi, 23dBm, 300Mbps 2X2 @ 2.4GHz & 3.4dBi, 26dBm, 1733Mbps, 4x4 @ 5GHz, 5xGigabit, 100m

153,22
(189,99 με ΦΠΑ)
034.0754
Άμεση
+
Προσθήκη στα αγαπημένα

Εγγύηση:

  • 2 χρόνια

UAP-IW-HD

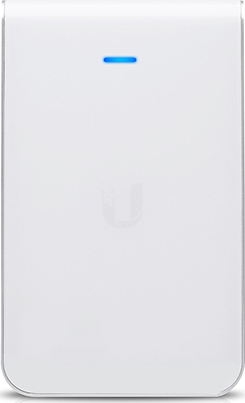

UAP-IW-HD is ideal for use in rooms/offices, in all places using the wall to install the device. The UniFi IW HD In-Wall AP transforms an Ethernet wall connection into a dual-band 802.11AC Wi-Fi Access Point. It features two Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. UAP-IW-HD have 2 radio modules, 2.4 GHz (2x2 MIMO, 300 Mb / s) and 5GHZ (4x4 MIMO, up to 1733 Mb / s) and work in standards 802.11 a / b / g / n / ac / ac -wave2.

Main features

  • Wall installation
  • 5x LAN
  • Power PoE 802.3af, 802.3at PoE +.
  • Radio standards 802.11 a/b/g/n/a/ac-wave2
  • 2.4GHz -23dBm and 5GHz - 26dBm

Technical Specifications

Dimensions139.7 x 86.7 x 25.75 mm
Weight200 g
Networking Interface(5) Port Ethernet 10/100/1000
ButtonsReset
Power Method802.3af PoE, 802.3at PoE+ (44 to 57VDC)
Power SupplyUniFi Switch (PoE)
Power SaveSupported
PoE Out48V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption11W with PoE Passthrough 23W
TX Power2.4 GHz: 23dBm 5 GHz: 26dBm
Dual-Band Antennas(2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each
Single-Band(2) Single-Port, Dual-Polarity, Single-Band Antennas,
MPN
:
UAP-IW-HD
EAN
:
817882025485

Datasheet (uap-iw-hd_ds.pdf, 6,828 Kb) [Λήψη]
