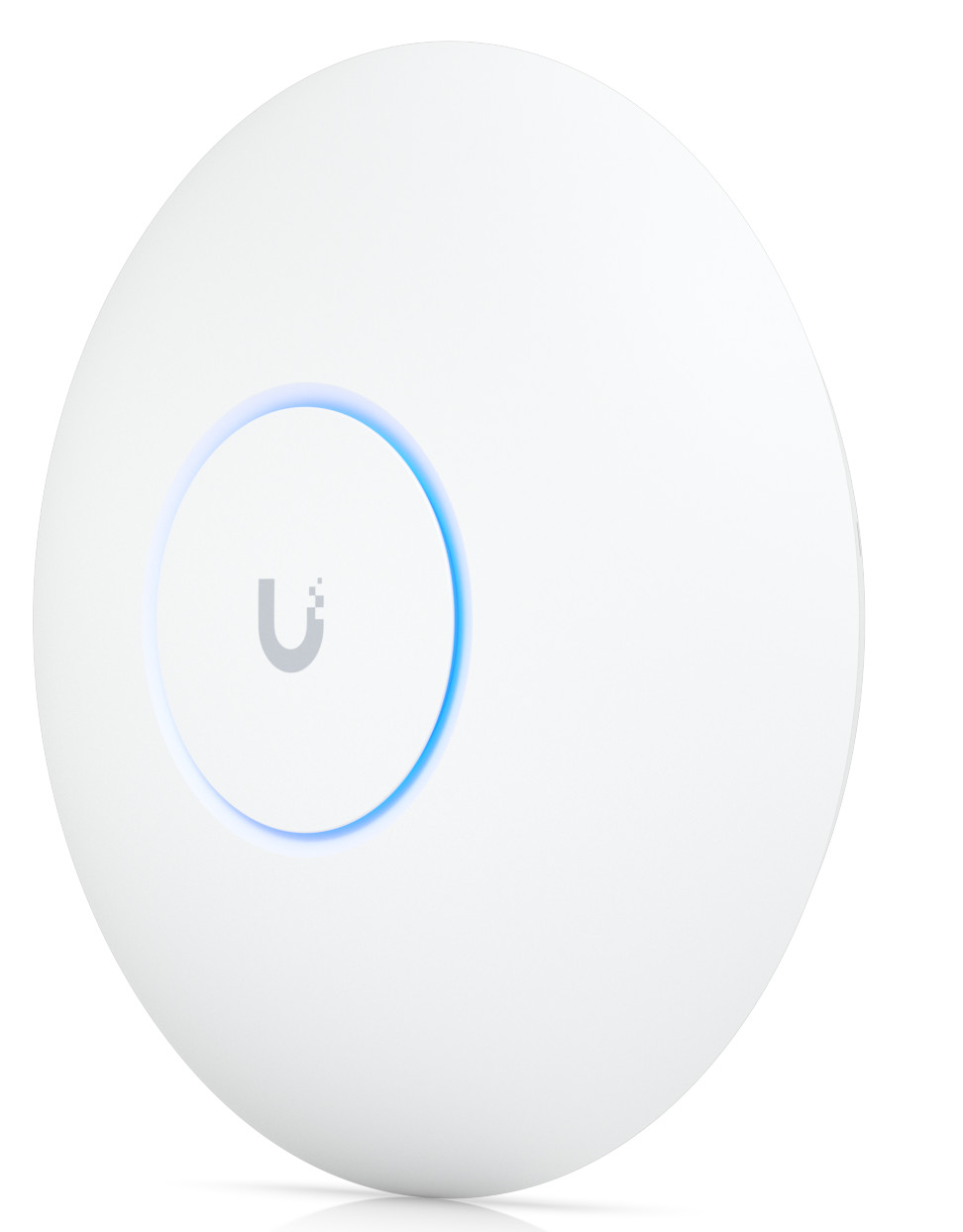

Ubiquiti U7-Pro-Max, UniFi WiFi 7 Pro Max, 4dBi, 23dBm, 688Mbps, 2x2 @ 2.4GHz & 6dBi, 29dBm, 8648Mbps, 4x4 @ 5GHz, & 5.9dBi, 23dBm, 5765Mbps, 2x2 @ 6GHz, 1x 2.5Gbps, 500+ Clients

Εγγύηση:

• 2 χρόνια

Product description

Ubiquiti U7 Pro Max is the most powerful unit in the U7 series, naturally supporting Wi-Fi 7. It operates in the 2.4 GHz band at a speed of 688 Mb/s, in the 5 GHz band at an incredible speed of 8.6 Gb/s, and in the 6 GHz band at 5.7 Gb/s. Thanks to the triple band, the unit ensures excellent connectivity and wide coverage. For network connection, a LAN port with a speed of up to 2.5 Gb/s is available. The access point is powered via PoE+.

Centralized Unit Management

To manage the device, it is necessary to download the original software called UniFi Network Controller from the official website, which allows you to control the entire network. The undeniable advantage of the UniFi Controller is that it is completely free without any restrictions! This centralized management allows uploading maps and setting basic parameters as well as advanced features, such as SSID, guest account, welcome page, traffic statistics, and a list and status of associated clients, always easily and quickly.

Package Contents

• Device
• Wall mounts
• Drilling template
• Cable tie
• Mounting kit

Technical parameters

Wireless features

Wireless frequency:2.4 + 5 + 6 GHz (triple band)
WiFi standards:802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO:Yes
Transmission speed - 5GHz [Mb/s]:8600
Transmission speed - 2.4GHz [Mb/s]:688
Transmission speed - 6GHz [Mb/s]:5700
Tx power 2.4GHz [dBm]:23
Tx power 5GHz [dBm]:29
Tx power 6GHz [dBm]:23
Security:WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
2.4GHz MIMO:2 x 2
5GHz MIMO:4 x 4
6GHz MIMO:2 x 2
Type of antenna:Built-in
Antenna gain [dBi]:5.8, 4, 6

Connectors and Interfaces

LAN speed:(1) 100/1000/2500Mbps
Gigabit LAN:Yes

Power

Power over Ethernet:Yes, 44 .. 57V DC
PoE type:PoE-In (only)
Max. power consumption [W]:25

Physical characteristics

Purpose:Indoor
Buttons:Reset
Operating temperature [°C]:-30 up to 60
Weight [g]:680
Width [mm]:206
Height [mm]:46
Depth [mm]:206

Software

Operating mode:Access Point
IPv6 support:Transparent (bridge mode)
Default login and password:ubnt / ubnt
