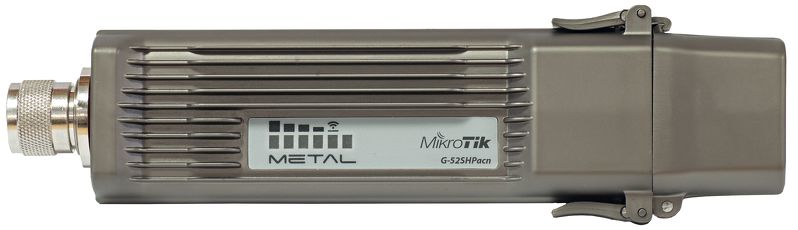

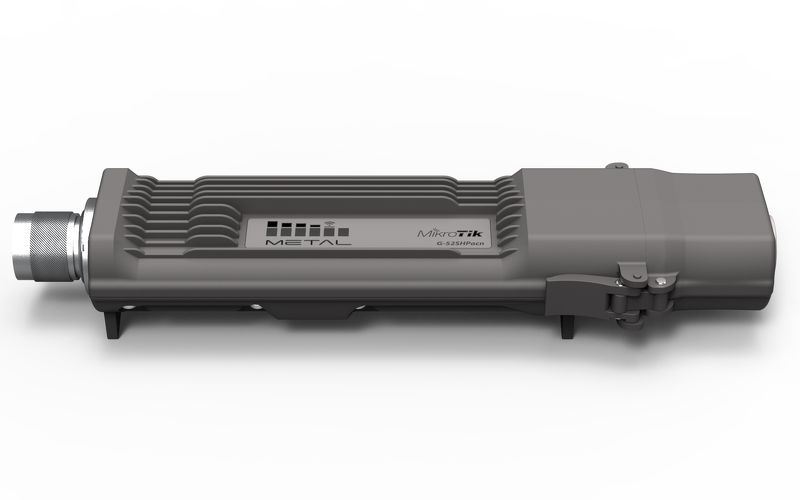

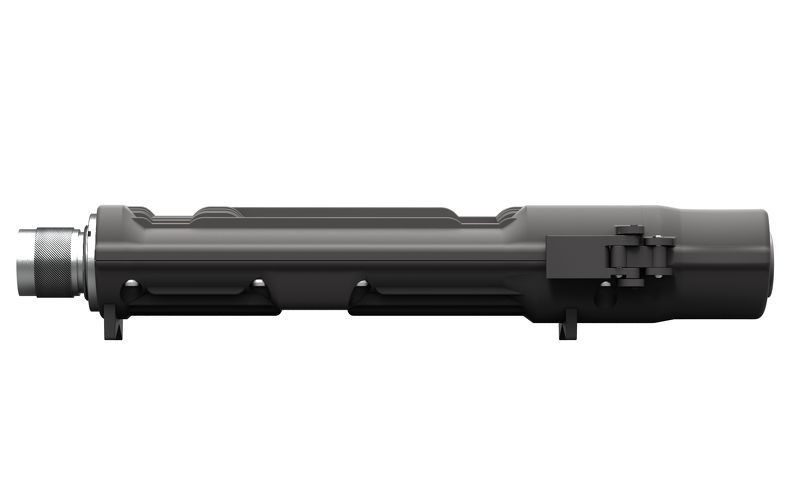

Metal 52 ac
Now with 802.11ac support, a Gigabit Ethernet port and a selectable
wireless band (2.4GHz or 5GHz, up 80 MHz wide channel). The new Gigabit port
will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as
well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).
We have two versions available.
- RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz,
5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBMetalG-52SHPacn (International) supports 2412-2484MHz and
5150MHz-5875MHz range.
Product specifications
Details |
|
Product
code |
RBMetalG-52SHPacn |
CPU
nominal frequency |
720 MHz |
CPU core
count |
1 |
Size of
RAM |
64 MB |
10/100/1000
Ethernet ports |
1 |
Wireless
standards |
802.11b/g/n |
Wireless
chip model |
QCA-9889 |
Supported
input voltage |
10 V - 30
V |
PoE in |
Yes |
Voltage
Monitor |
Yes |
PCB
temperature monitor |
Yes |
Dimensions |
215x60x38mm |
Operating
System |
RouterOS |
Operating
temperature range |
-40°C ..
+70°C tested |
License
level |
4 |
CPU |
QCA9556 |
Max Power
consumption |
11W |
Number of
chains |
1 |
Storage
type |
FLASH |
Storage
size |
16 MB |
Suggested
price |
$119 |
Wireless specifications
5 GHz |
||
TX |
RX |
|
6MBit/s |
31 |
-93 |
54MBit/s |
27 |
-78 |
MCS0 |
30 |
-93 |
MCS7 |
26 |
-74 |
MCS9 |
22 |
-69 |
2.4 GHz |
||
TX |
RX |
|
1MBit/s |
31 |
-97 |
11MBit/s |
31 |
-91 |
6MBit/s |
31 |
-93 |
54MBit/s |
28 |
-77 |
MCS0 |
31 |
-93 |
MCS7 |
27 |
-72 |
wireless parameters may be limited in software, depending on your local
regulatory limitations

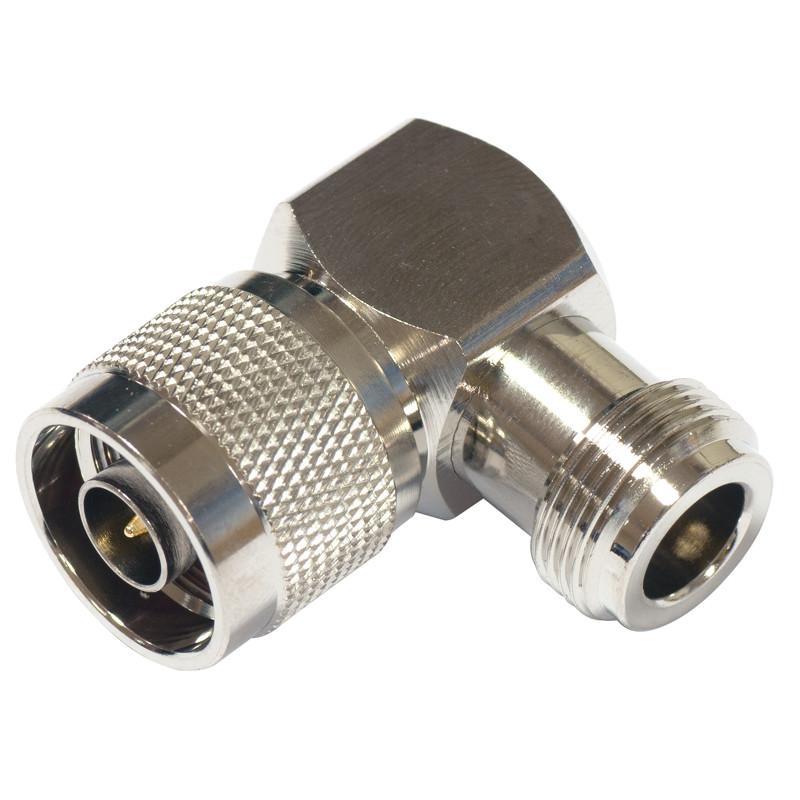

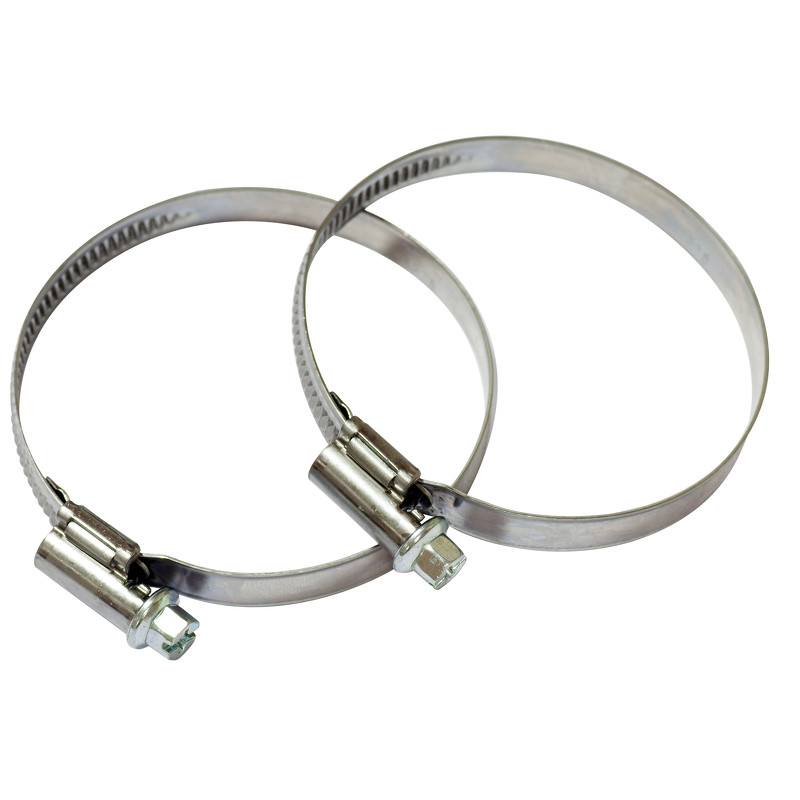

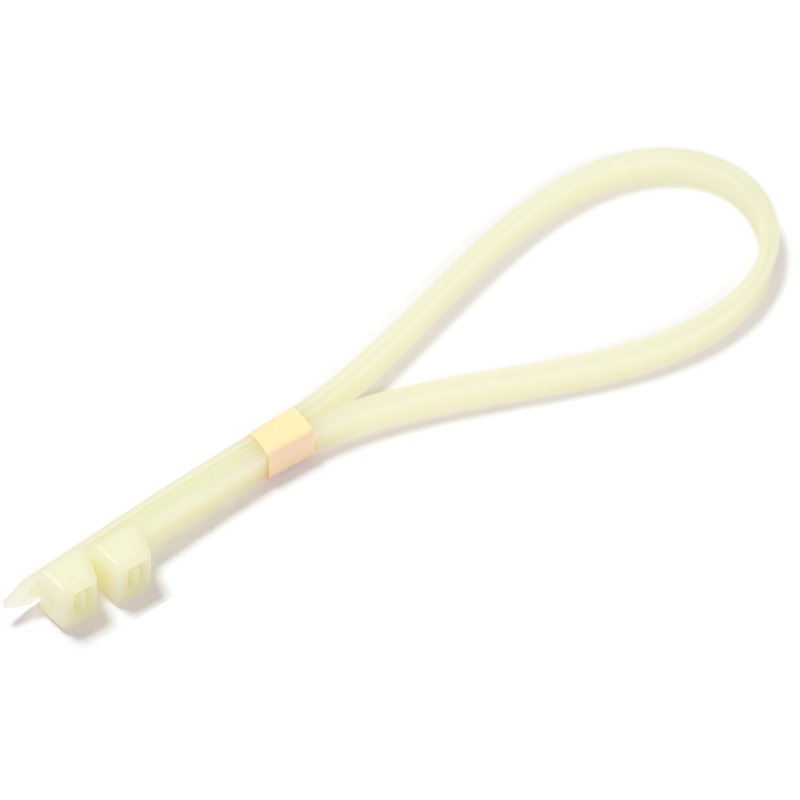

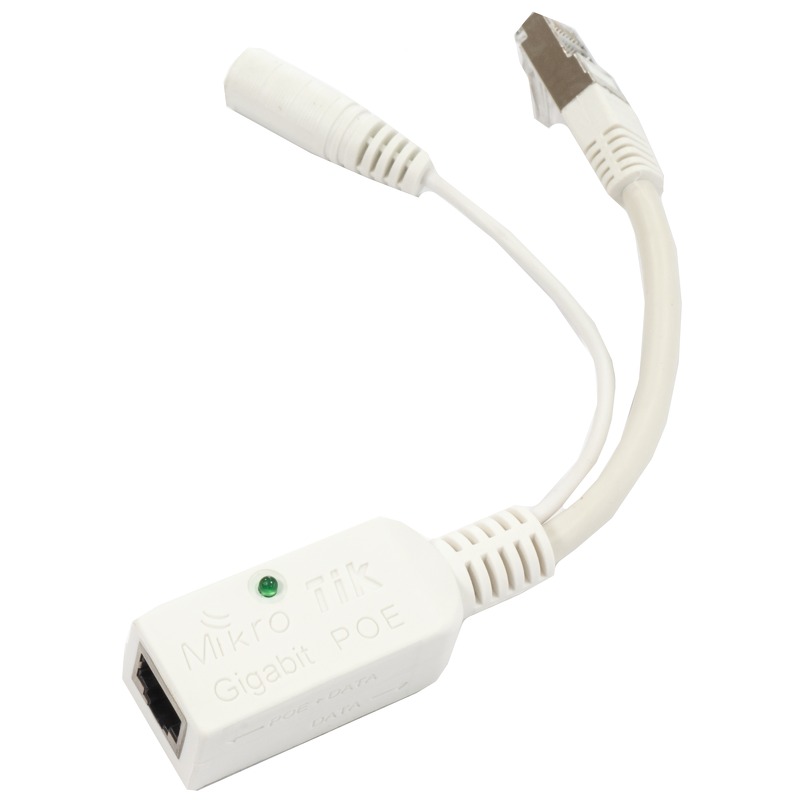

Included parts
Σχετικά Αρχεία:
- Brochure : metal_52_ac-160317151333.pdf
- Quick Guide : Metal-qg.pdf
- High-res image : [1][2][3]
- Purchase questions: email sales
- RouterOS software manual
