GrooveA 52 ac
Our smallest outdoor series model - a fully featured wireless RouterBOARD
powered by RouterOS.
Weatherproof, durable and ready to use. Now with 802.11ac support, a
Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80
MHz wide channel). The new Gigabit port will help you utilise the full benefit
of 802.11ac high speed wireless.
The Groove A (AP model) comes with Level 4 license and includes a Dual Band
2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the
unit right out of the box, or use your own antenna.
Product specifications
Details |
|
Product code |
RBGrooveGA-52HPacn |
CPU nominal frequency |
720 MHz |
Size of RAM |
64 MB |
10/100/1000 Ethernet ports |
1 |
Wireless chip model |
QCA-9889 |
Wireless standards |
802.11a/b/g/n/ac |
PoE in |
Yes |
Supported input voltage |
10 V - 30 V |
Voltage Monitor |
Yes |
PCB temperature monitor |
Yes |
Dimensions |
177 x 44 x 44 mm |
Operating System |
RouterOS |
Tested ambient temperature |
-40 +70 C |
License level |
4 |
CPU |
QCA9556 |
Max Power consumption |
5W |
Number of chains |
1 |
Storage type |
FLASH |
Storage size |
16 MB |
Suggested price |
$99 |
Wireless specifications
2.4 GHz |
||
TX |
RX |
|
1MBit/s |
24 |
-97 |
11MBit/s |
21 |
-91 |
6MBit/s |
24 |
-93 |
54MBit/s |
21 |
-77 |
MCS0 |
24 |
-93 |
MCS7 |
20 |
-72 |
5 GHz |
||
TX |
RX |
|
6MBit/s |
26 |
-93 |
54MBit/s |
21 |
-78 |
MCS0 |
26 |
-93 |
MCS7 |
21 |
-74 |
MCS9 |
19 |
-69 |
wireless parameters may be limited in software, depending on your local
regulatory limitations

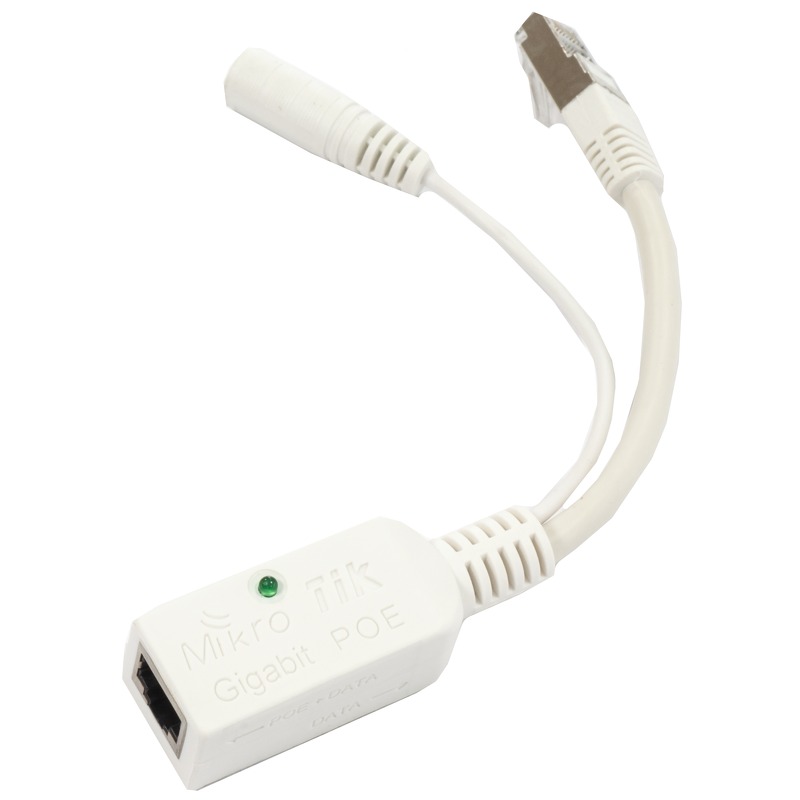

Included parts
Performance test results
RBGrooveGA-52HPacn |
QCA9556 1G one port test |
||||||
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Bridging |
none (fast path) |
81.2 |
986.1 |
233.1 |
954.8 |
576.7 |
295.3 |
Bridging |
25 bridge filter rules |
81.2 |
986.1 |
123.7 |
506.7 |
117.8 |
60.3 |
Routing |
none (fast path) |
81.2 |
986.1 |
233.1 |
954.8 |
454.8 |
232.9 |
Routing |
25 simple queues |
81.2 |
986.1 |
152.6 |
625.0 |
137.2 |
70.2 |
Routing |
25 ip filter rules |
69.4 |
842.8 |
66.3 |
271.6 |
68.7 |
35.2 |
1. All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according to
RFC2544 (Xena2544)
2. Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512,
1518 byte packet sizes
3. Values in Italic
indicate that max throughput was reached without maxing out CPU, but because
board interface configuration was maxed out
4. Test results show
device maximum performance, and are reached using mentioned hardware and
software configuration, different configurations most likely will result in
lower results
