BaseBox 5

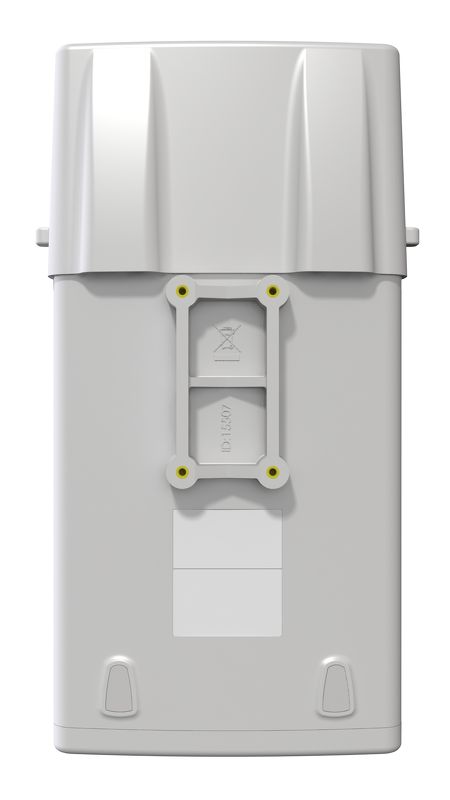

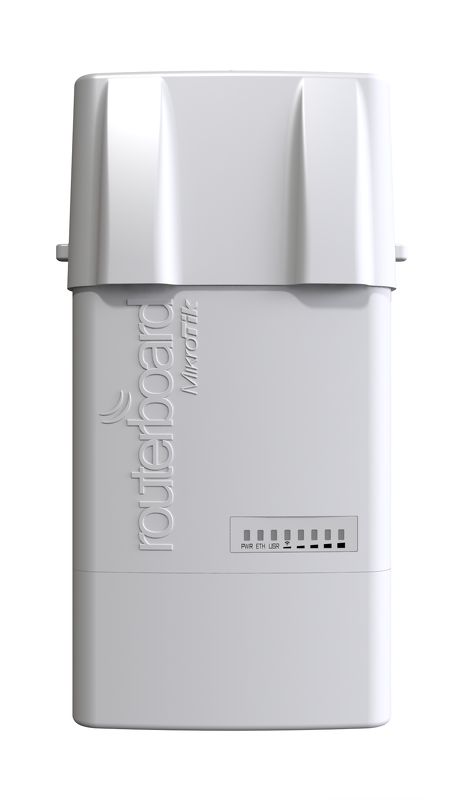

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.

Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount

Product specifications

Wireless specifications

wireless parameters may be limited in software, depending on your local regulatory limitations

Included parts

Gigabit PoE injector

DIN mount (K-27)

24V 0.8A power adapter

Metal ring (one)

Plastic zip tie

Performance test results

1.All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)

2.Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes

3.Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out

4.Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Σχετικά Αρχεία:

Datasheet of BaseBox 5
