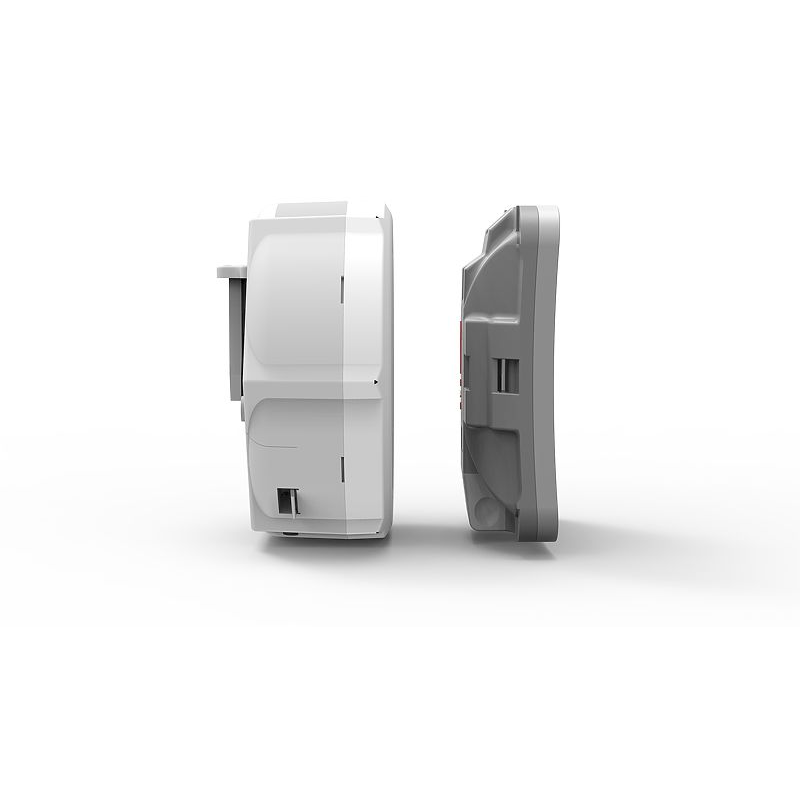

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
- SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
Details | |
---|---|
Product code | RBSXTsqG-5acD |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Dimensions | 129 x 129 x 34 mm |
License level | 3 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40 to 70° C |
Powering
Details | |
---|---|
Max Power consumption | 7W |
PoE in | Passive PoE |
PoE in input Voltage | 10-30 V |
Number of DC inputs | 1 (PoE-IN) |
Wireless
Details | |
---|---|
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 16 |
Wireless 5 GHz chip model | IPQ-4018 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 25 | -96 |
54MBit/s | 21 | -80 |
MCS0 | 25 | -96 |
MCS7 | 20 | -75 |
MCS9 | 18 | -70 |

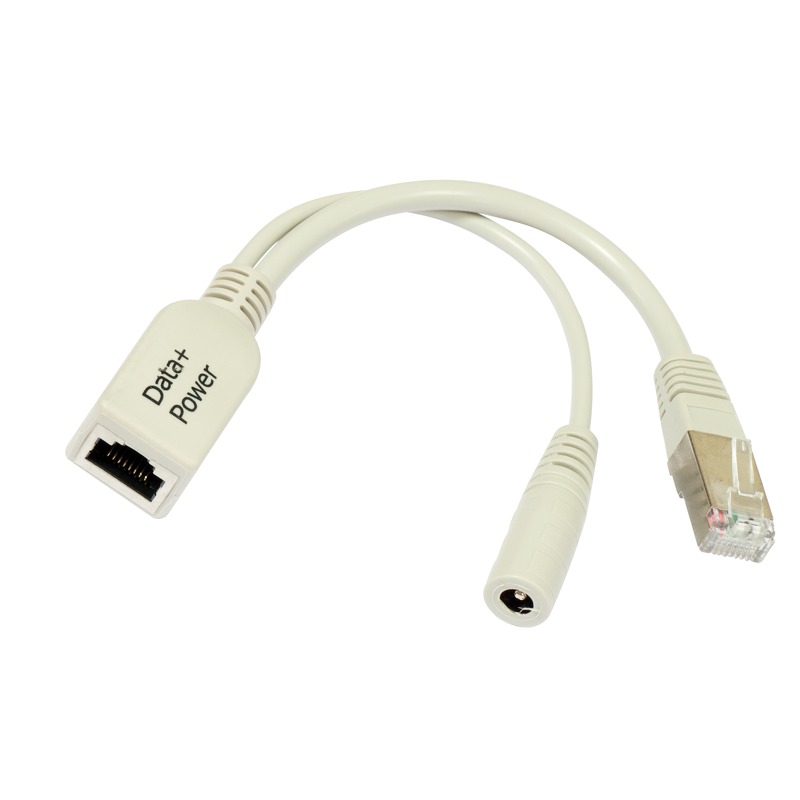

Included parts
Ethernet test results
RBSXTsqG-5acD | IPQ-4018 1G one port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 82.2 | 998.2 | 243.9 | 999.0 | 1483.0 | 759.3 |
Bridging | 25 bridge filter rules | 82.2 | 998.2 | 215 | 880.6 | 217.5 | 111.4 |
Routing | none (fast path) | 82.2 | 998.2 | 243.9 | 999.0 | 1489.5 | 762.6 |
Routing | 25 simple queues | 82.2 | 998.2 | 243.9 | 999.0 | 364.9 | 186.8 |
Routing | 25 ip filter rules | 82.2 | 998.2 | 155.1 | 635.3 | 151.3 | 77.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
