RF elements TPA-SMA, TwistPort adaptor with 2x RSMA connectors

Product description

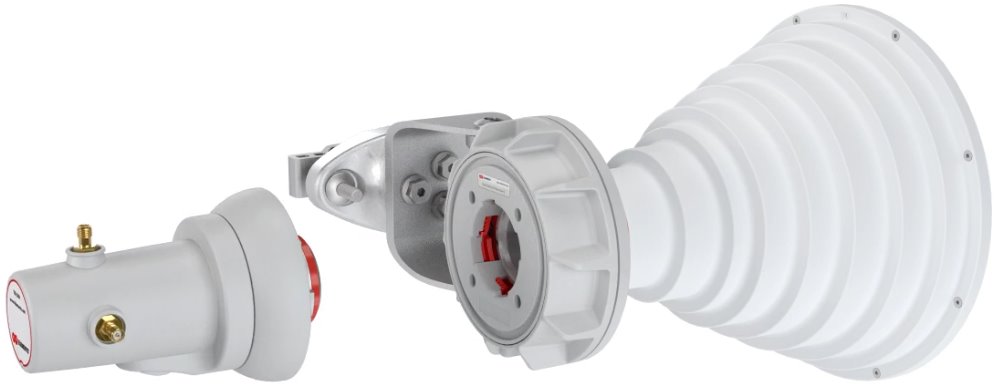

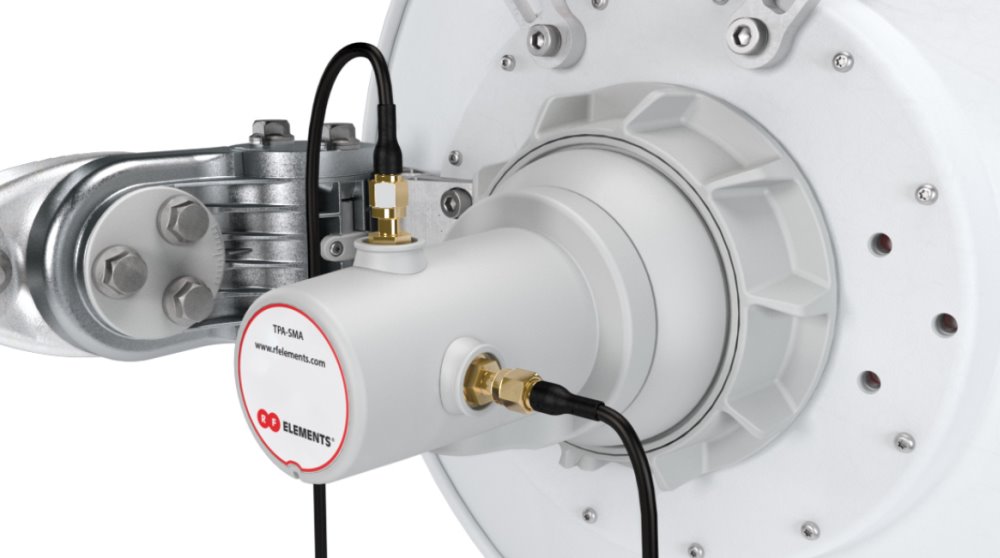

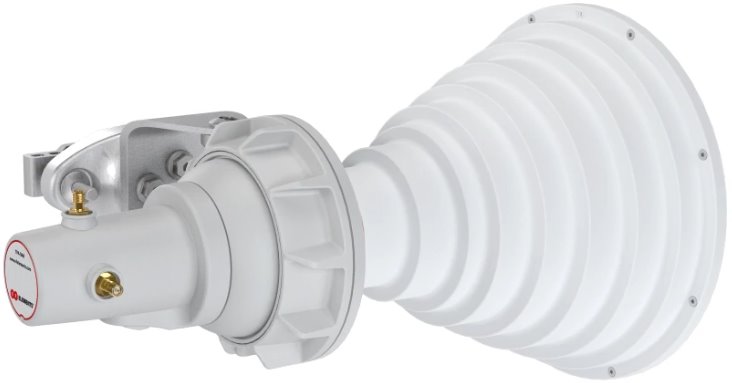

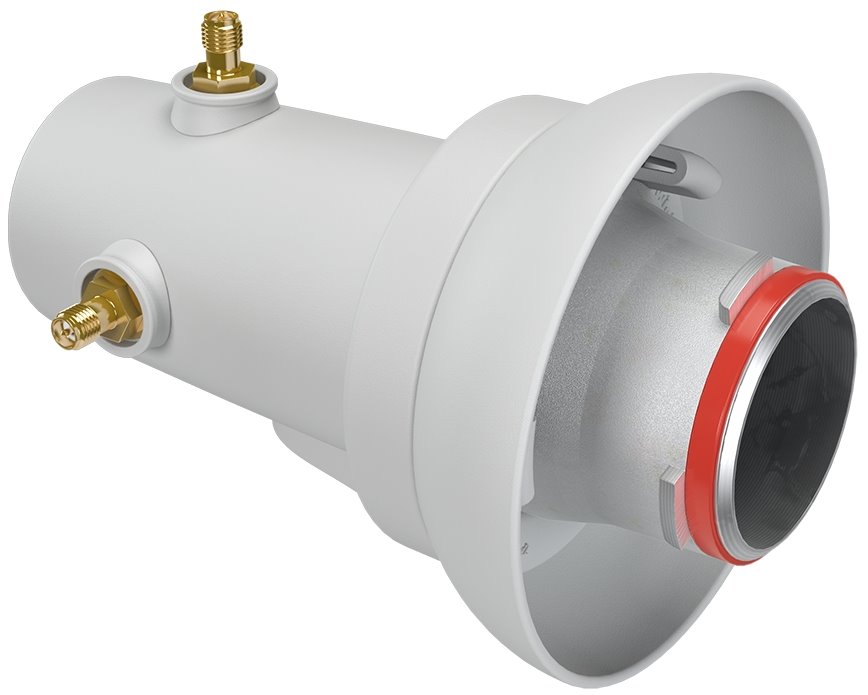

TPA-SMA is a TwistPort converter adapter from TwistPort to (2) RSMA-female connectors. The adapter allows connect any two-polarized radio to be connected by RF cables. The adapter is capable of operating in the 5180 to 6400MHz band.

RSMA female connectors

TPA-SMA provides industry most used RP-SMA male coaxial interface in dual linear H+V polarization.

Minimized Loss

RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.

Technical parameters

Wireless features

MIMO, SISO:2 x 2
Polarization:VH
VSWR:< 1,8
Wireless frequency:5 GHz

Connectors and Interfaces

RF connectors:TwistPort, (2) RSMA female

Physical characteristics

Shielding:Yes
Mounting:On the antenna
Purpose:Outdoor
Material:Aluminum, UV stabilized ABS plastic
Operating temperature [°C]:-40 up to 60
Weight [g]:210
Width [mm]:90
Height [mm]:90
Depth [mm]:134
