Ubiquiti LBE-5AC-Gen2, LiteBeam, 23dBi, 560MHz, 64MB, 25dBm, 1xGigabit, 450+Mbps
Εγγύηση:
- 2 χρόνια

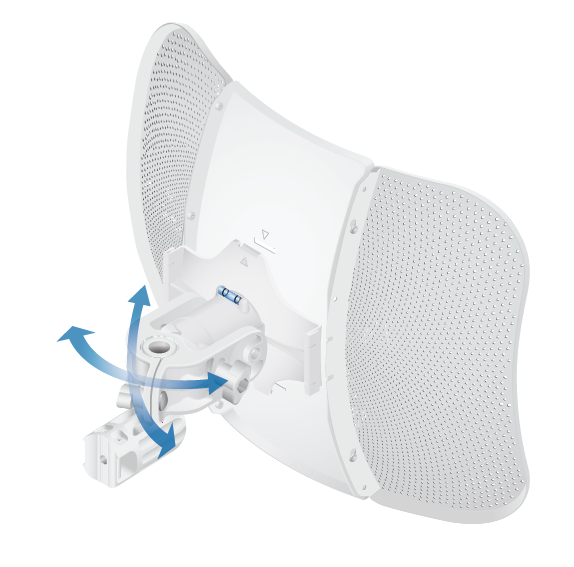

Ubiquiti LiteBeam AC GEN2
Ubiquiti Networks launches the second generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.
The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

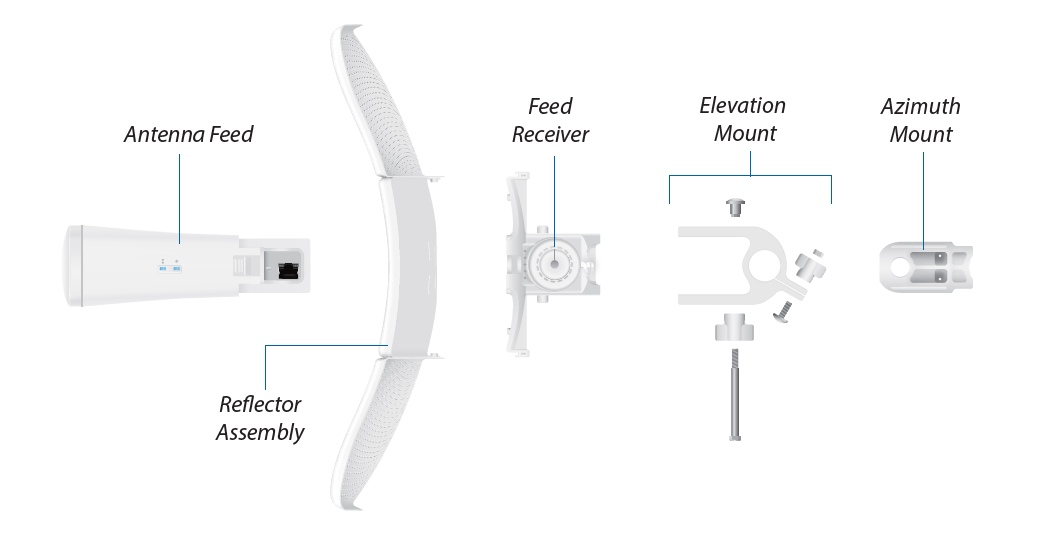

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.
The second generation devices work under airOS® v8 software - the revolutionary operating system for Ubiquiti® airMAX ac products.
Technical specification
| Dimensions | 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73") |
| Weight without Mount | 800 g (1.76 lb) |
| Weight with Mount | 980 g (2.16 lb) |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% |
| Operating Frequency: | |
| Worldwide | 2412 - 2462 MHz 5150 - 5875 MHz |
| USA: U-NII-1 | 5150 - 5250 MHz |
| USA: U-NII-2A | 5250 - 5350 MHz |
| USA: U-NII-2C | 5470 - 5725 MHz |
| USA: U-NII-3 | 5725 - 5850 MHz |
| Gain | 23 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Enclosure Characteristics | Reflector (SGCC 0.6T) / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
