Ubiquiti R5AC-Lite, Rocket AC Lite, 720MHz, 128MB, 27dBm, 1xGigabit, 500+ Mbps

127,42
(158,00 με ΦΠΑ)
034.0344
Άμεση
+
Προσθήκη στα αγαπημένα

Εγγύηση:

  • 2 χρόνια

Rocket AC - Powerful airMAX ac BaseStation


Ubiquiti Networks® has designed the first airMAX® ac radio with high quality, high performance, and ease of installation in mind.

The Rocket5ac Lite is ideal for deployment in Point-to-Point (PtP) applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.

You have the freedom to locate, deploy, and operate the Rocket5ac Lite anywhere in the world. It allows for a high degree of flexibility in configuring channel bandwidths: 20, 40, 50, 60, and/or 80 MHz, depending on local country regulations.

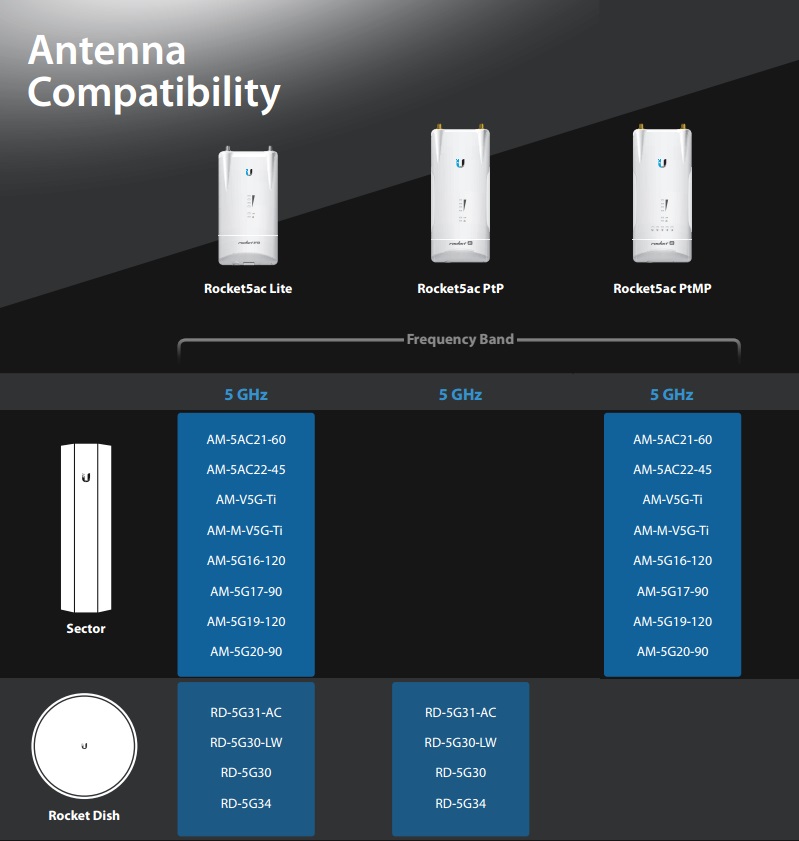

The Rocket5ac Lite radio can be paired with a RocketDish antenna to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.

Operating Frequency

Worldwide: 5150 - 5875 MHz
USA: 5725 - 5850 MHz

Output Power

27 dBm

Dimensions

162 x 84 x 37 mm (6.38 x 3.31 x 1.46")

Weight

250 g (8.81 oz)

Enclosure

Characteristics Outdoor UV Stabilized Plastic

Processor

MIPS 74Kc 720MHz

Memory

128 MB DDR2 SDRAM, 16 MB NOR FLASH

Networking Interface

(1) 10/100/1000 Mbps

RF Connections

(2) RP-SMA (Waterproof)

LEDs

Power, Ethernet, (4) Signal Strength

Max. Power Consumption

8.5W

Power Supply

24V, 0.5A Gigabit PoE Adapter

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection

± 24KV Air / Contact

Operating Temperature

-40 to 80° C (-40 to 176° F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4

Modes

Access Point, Station

Services

Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities

Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment

Dynamic Ack and Ackless Mode

Power Adjustment

Software Adjustable UI or CLI

Security

WPA2 AES Only

QoS

Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low

Statistical

Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM,
20/40/50/60/80 MHz Channel Width Support

Ubiquiti Specific

Features 50 MHz Channels, airMAX Mode, Traffic Shaping with Burst Support,
Discovery Protocol, Frequency Band Offset, Ackless Mode


Σχετικά Αρχεία:


MPN
:
R5AC-Lite
EAN
:
810354022708
