Ubiquiti RP-5AC-Gen2, RocketPRISM 5AC Gen2, 720MHz, 128MB, 28dBm, 1xGigabit, 500+ Mbps
Εγγύηση:
- 2 χρόνια

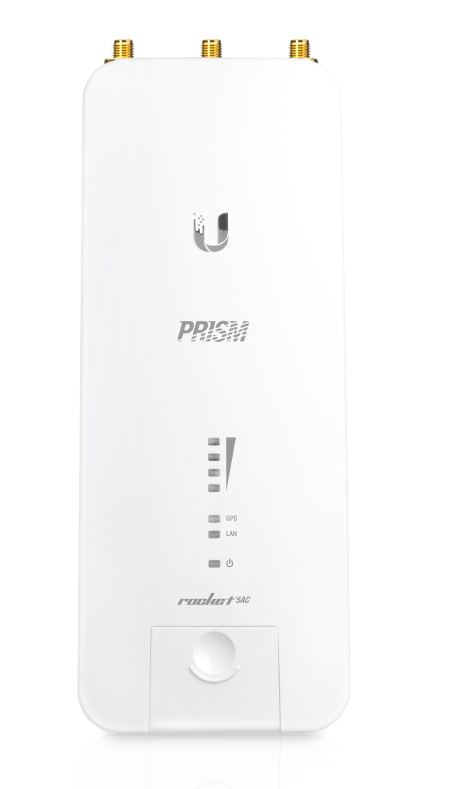

Ubiquiti Rocket PRISM AC GEN2
Ubiquiti Networks
has designed
airMAX ac radios with high performance and ease of installation in mind. The Rocket®Prism 5AC
Gen 2

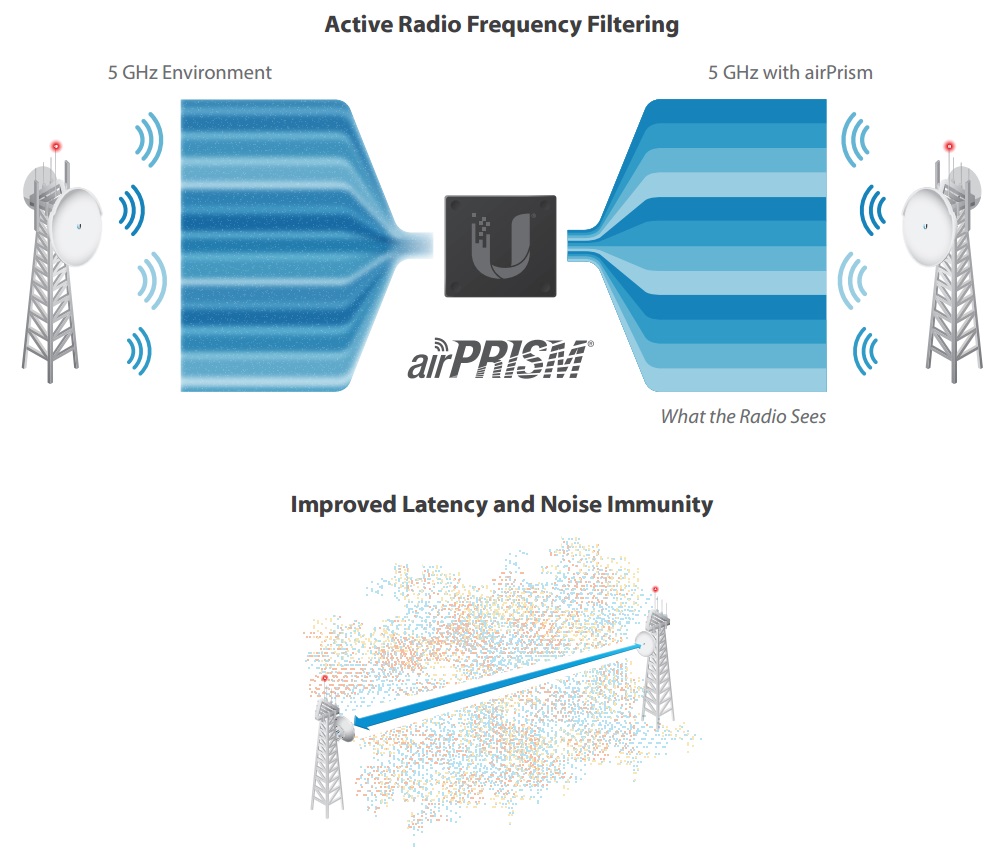

features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas.

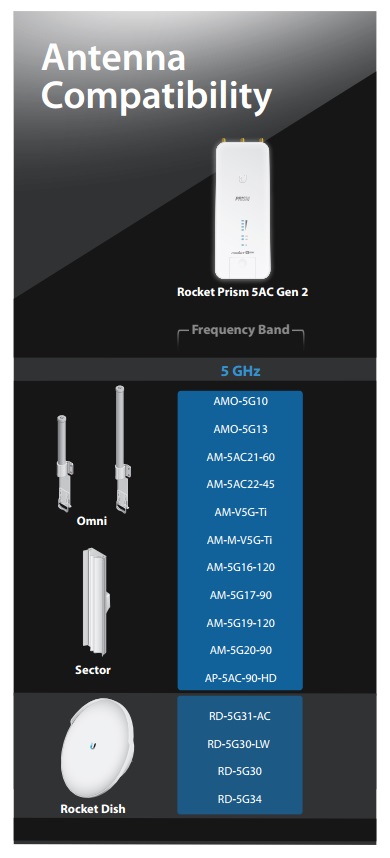

Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance:
- PtP backhaul RocketDish™ ac Antenna

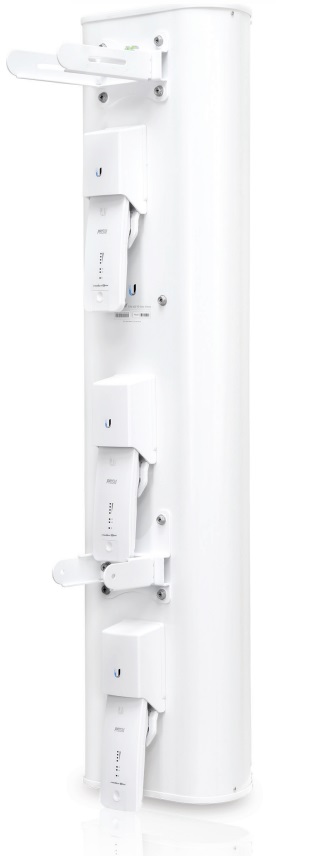

- PtMP links airMAX ac Sector
Deploy the Rocket Prism 5AC Gen 2 anywhere in the world. It delivers complete coverage
of the
5 GHz spectrum with a single radio. The Rocket Prism 5AC Gen 2 allows for
flexibility in configuring channel bandwidths (subject to local country
regulations).

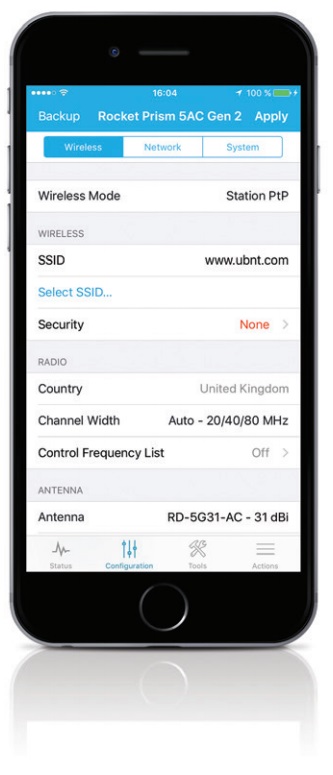

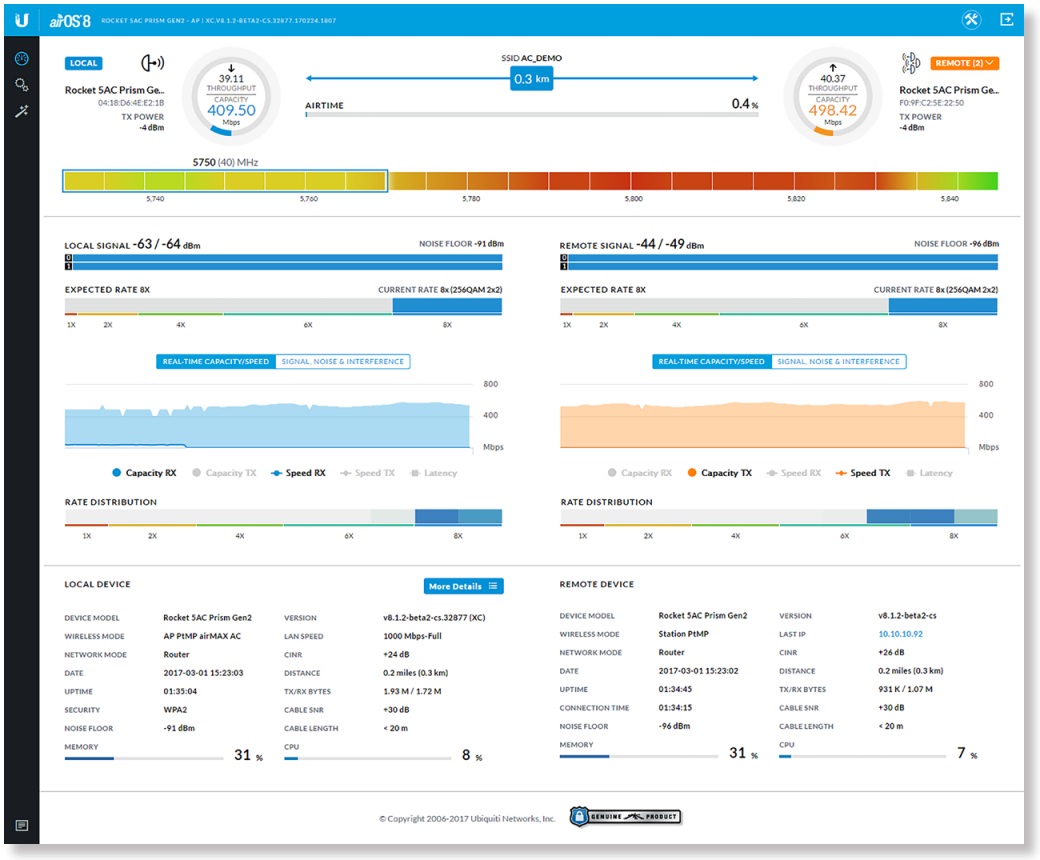

The second generation devices work under airOS® v8 software - the
revolutionary operating system for
Ubiquiti® airMAX ac products.
Technical specification
|
Dimensions |
88 x 40 x 230 mm (3.47 x 1.58 x
9.06")
|
|
Weight |
400 g (14.11 oz) |
|
Operating Frequency: |
|
|
Worldwide |
2412 - 2462 MHz |
|
USA: U-NII-1 |
5150 - 5250 MHz |
|
USA: U-NII-2A |
5250 - 5350 MHz |
|
USA: U-NII-2C |
5470 - 5725 MHz |
|
USA: U-NII-3 |
5725 - 5850 MHz |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
RF Connectors |
(2) RP-SMA
(Waterproof ), (1) GPS* (Waterproof )
|
|
LEDs |
(4) Signal
Strength, GPS*, Power, LAN
|
|
Enclosure |
Die-Cast
Aluminum with White Powder Coating
|
|
Max. Power Consumption |
9.5W |
|
Power Supply |
24V, 0.5A
Gigabit PoE Adapter (Included)
|
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Processor Specs |
Atheros MIPS 74Kc |
|
Memory |
128 MB DDR2 SDRAM |
|
Supported Voltage Range |
18-26VDC |
|
Signal Strength LEDs |
Software-Adjustable
to Correspond to Custom RSSI Levels
|
|
Channel Sizes |
PtP Mode:
10/20/30/40/50/60/80 MHz
|
|
ESD/EMP Protection |
± 24 kV Contact
/ Air for Ethernet
|
|
Operating Temperature |
-40 to 80° C (-40 to 176° F) |
|
Operating Humidity |
5% to 95% Noncondensing |
|
RoHS Compliance |
Yes |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
Modes |
Access Point, Station |
|
Services |
Web Server,
SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
|
|
Utilities |
Antenna
Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
|
|
Distance Adjustment |
Dynamic Ack and
Ackless Mode
|
|
Power Adjustment |
Software
Adjustable UI or CLI
|
|
Security |
WPA2 AES Only |
|
QoS |
Supports Packet
Level Classification WMM and User Customer Level: High/Medium/Low
|
|
Statistical Reporting |
Up Time, Packet
Errors, Data Rates, Wireless Distance, Ethernet Link Rate
|
|
Other |
Remote Reset
Support, Software Enabled/Disabled,
|
|
Ubiquiti Specific Features |
30/50/60 MHz
Channels, airMAX ac Mode, Traffic Shaping with Burst Support,
|
|
Certifications |
CE, FCC, IC |
* Reserved for future use
