Ubiquiti UAP-AC-M-PRO-E, UniFi Outdoor Pro, 3x8dBi, 22dBm, 450Mbps, 3x3 @ 2.4GHz & 3x8dBi, 22dBm, 1300Mbps, 3x3 @ 5GHz, 2xGigabit (bulk - without poe injector)
Εγγύηση:
- 2 χρόνια

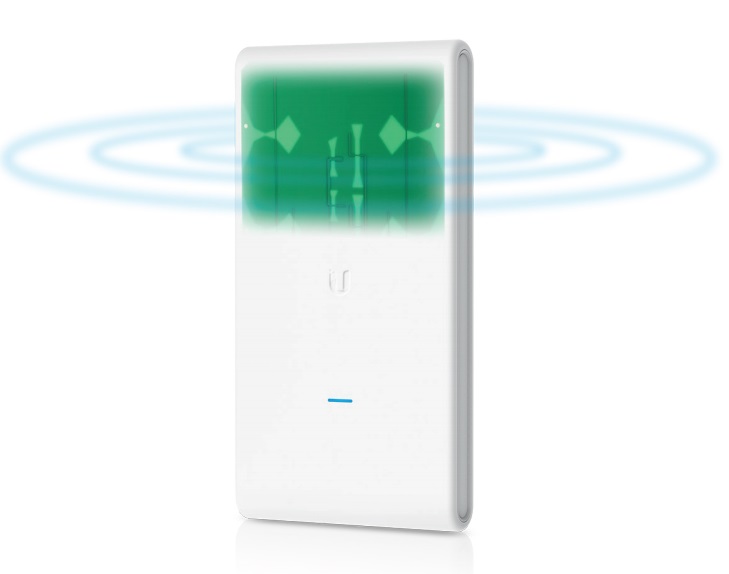

Ubiquiti UniFi AP AC Mesh Pro
UniFi is the
revolutionary Wi-Fi system that combines enterprise performance, unlimited
scalability, and a central management controller. The UniFi AC Mesh APs have a
refined industrial design and can be easily installed using the included
mounting hardware.
The UniFi Enterprise WiFi System is a scalable enterprise access point solution
designed to be easily deployed and managed.
The UniFi Enterprise WiFi System includes the UniFi Controller software which
can be easily accessed through any standard web browser. The software installs
on any Windows, Mac, or Linux PC and can be run on-premise, in your private
cloud or in a public cloud service. Using the UniFi Controller software, an
Enterprise WiFi network can be quickly configured and administered without any
special training. Real-time status, automatic UAP device detection, map
loading, guest/hot-spot management, mobile roaming and advanced security
options are all seamlessly integrated.
The UniFi controller software is included with each access point. There are no
additional software license or subscription costs required to use the UniFi
controller.
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal
for outdoor deployment. Unique provisioning LED provides administrator location
tracking and alerts for each device. Built-in dual-band omnidirectional
antennas deliver expanded range coverage outdoors. The
UniFi AC Mesh Pro
AP
has two Gigabit Ethernet ports; the primary port is for data and PoE; the
secondary port is for bridging.
The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are
included.) You can power the UniFi AC Mesh Pro AP with an 802.3af compatible
switch, UniFi PoE Switch, or Gigabit PoE adapter. We recommend
powering your UniFi devices with a UniFi PoE Switch (sold separately).
Model comparison:
|
|
UAP-AC-M |
UAP-AC-M-PRO |
|
Environment |
Indoor/Outdoor |
Outdoor |
|
Simultaneous Dual-Band |
Yes |
Yes |
|
2.4 GHz Speed |
300 Mbps |
450 Mbps |
|
2.4 GHz MIMO |
2x2 |
3x3 |
|
5 GHz Speed |
867 Mbps |
1300 Mbps |
|
5 GHz MIMO |
2x2 |
3x3 |
|
Range |
183 m (600 ft) |
183 m (600 ft) |
|
Secondary Ethernet Port |
No |
Yes |
|
PoE Mode |
24V Passive PoE |
802.3af PoE |
|
Wall Mount |
Yes |
Yes |
|
Pole Mount |
Yes |
Yes |
|
Fast Mount |
Yes |
No |
Specification
|
Dimensions |
343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x
2.37")
|
|
Weight |
633 g (1.40 lb) |
|
Networking Interface |
(2) 10/100/1000 Ethernet Ports |
|
Buttons |
Reset |
|
Power Method |
802.3af PoE |
|
Power Supply |
48V, 0.5A PoE
Gigabit Adapter (Not-Included)
|
|
Power Save |
Supported |
|
Maximum Power Consumption |
9W |
|
Maximum TX Power |
22 dBm |
|
Antennas |
(3) Internal
Dual-Band Antennas, 8 dBi
|
|
Wi-Fi Standards |
802.11 a/b/g/n/ac |
|
Wireless Security |
WEP, WPA-PSK,
WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
|
BSSID |
Up to Four per
Radio
|
|
Mounting |
Wall/Pole (Pole
Kit Included)
|
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
Advanced Traffic Management |
|
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-User Rate Limiting |
|
Guest Traffic Isolation |
Supported |
|
WMM |
Voice, Video,
Best Effort, and Background
|
|
Concurrent Clients |
250+ |
|
Supported Data Rates (Mbps) |
|
|
Standard |
Data Rates |
|
802.11ac |
6.5 Mbps to 867
Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
|
|
802.11n |
6.5 Mbps to 300
Mbps (MCS0 - MCS15, HT 20/40)
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
