MikroTik RB912UAG-2HPnD, 600MHz, 64MB, 1xGigabit, onboard 30dBm 2.4Ghz wireless, miniPCI-e, USB, SIM slot, L4
Εγγύηση:
- 1 έτος

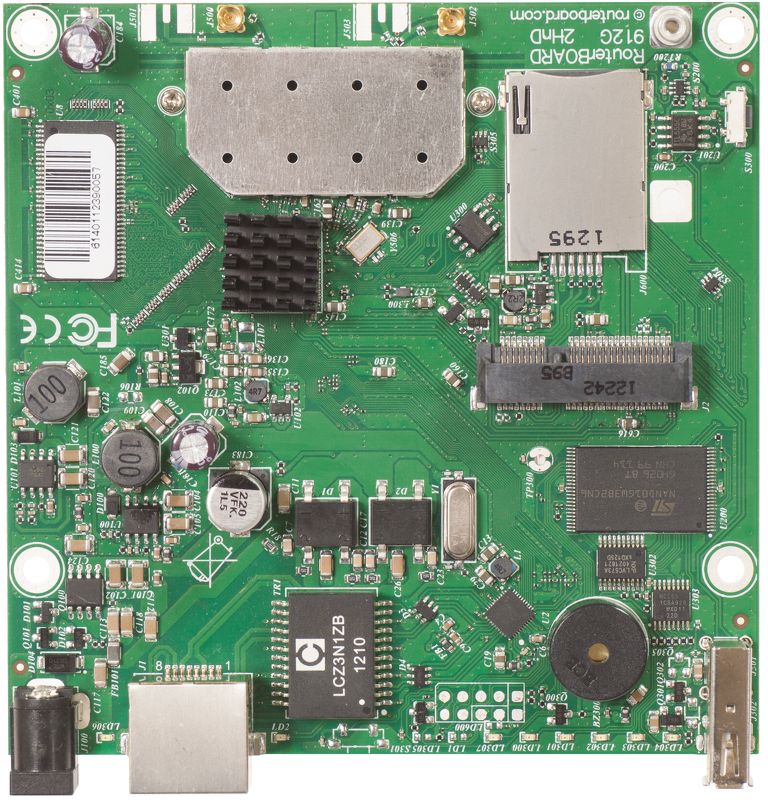

RB912UAG-2HPnD
The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
Product specifications
| Details | |
| Product code | RB912UAG-2HPnD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 64 MB |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI-e slots | 1 |
| Wireless chip model | AR9342-BL1A |
| Wireless standards | 802.11b/g/n |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 8 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 105x105mm |
| Operating System | RouterOS |
| Operating temperature range | -40°C .. +70°C tested |
| License level | 4 |
| CPU | AR9342-BL1A |
| USB slot type | USB type A |
| Number of chains | 2 |
| Suggested price | $79.00 |
Wireless specifications
| 2.4 GHz | ||
| TX | RX | |
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -73 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Performance test results
| RB912UAG-2HPnD | AR9342 1G 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
1.All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2.Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3.Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
4.Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
