Product description

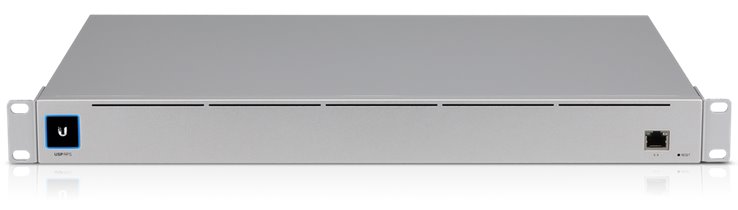

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.

Table of max. Consumption of back-up devices

Features

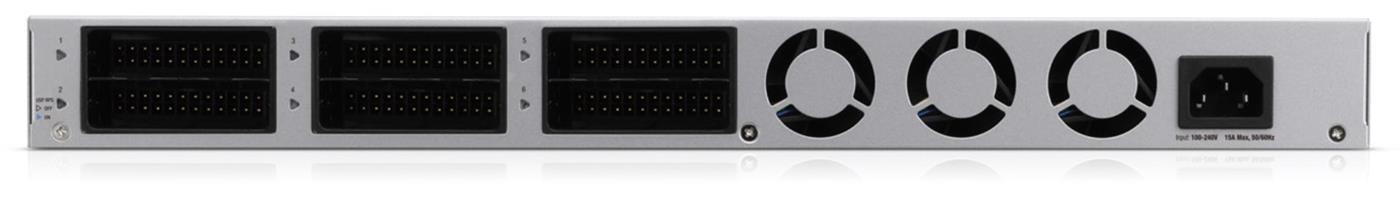

• (6) USP DC output ports
• (1) Ethernet port
• 1U Rackmountable (kit included)
• 1.3" Touchscreen display with status information
• Managed by UniFi Network Controller version: 5.12.11 or later

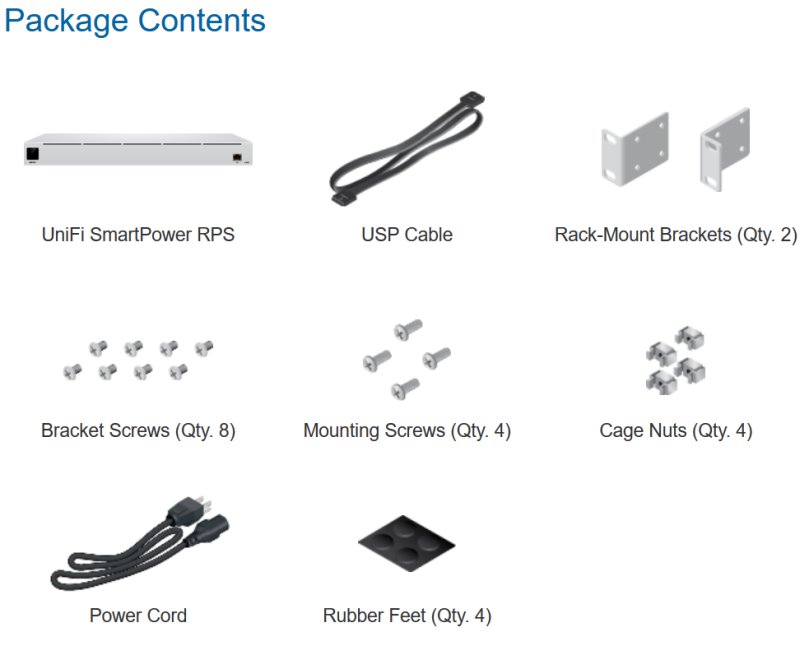

Package contains

• UniFi SmartPower device
• USP cable
• Power cord
• Rackmount ears + screws

Technical parameters

Connectors and Interfaces

LAN speed:(1) 10/100/1000Mbps
Other features:Touchscreen

Power

The input voltage: [V]:230V AC
Max. power consumption [W]:995

Physical characteristics

Size:19"
Design:Rackmount
Operating temperature [°C]:-5 up to 45
Weight [g]:5590
Width [mm]:442
Height [mm]:44
Depth [mm]:326
