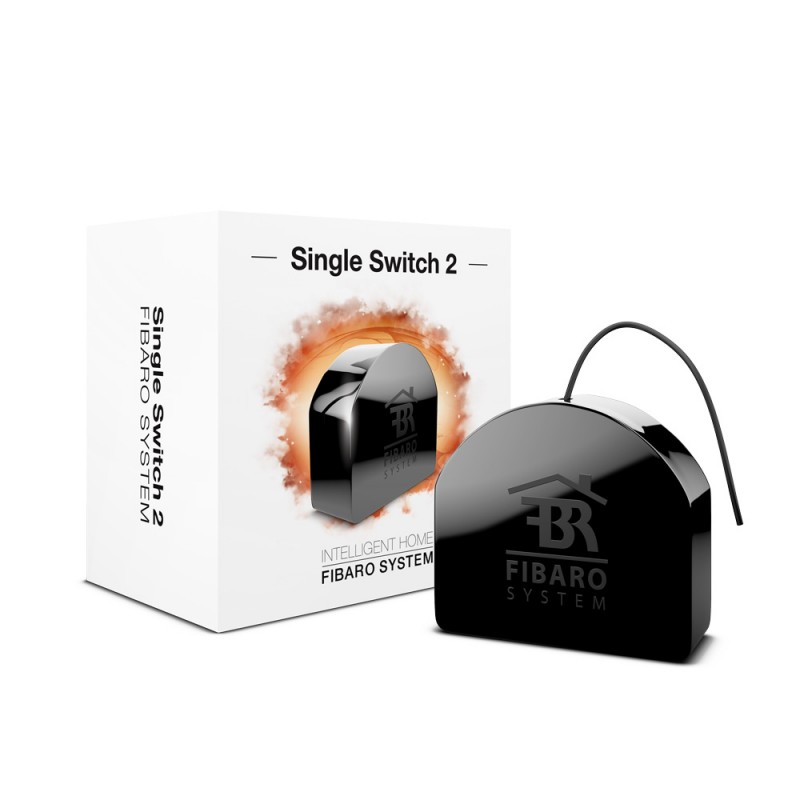

FIBARO Single Switch 2 (FGS-213 ZW5)

Product Overview:

The remotely operated FIBARO Single Switch 2 is designed to turn electrical devices on and off and to measure their power and energy consumption. The compact size of the device makes it the world's smallest of its type and allows for the product to be installed in wall switch boxes or housings. FIBARO Single Switch 2 can be controlled either via Z-Wave network or with a wall switch through a direct connection.

Product Highlights:

• Compatible with any Z-Wave or Z-Wave+ Controller,

• Supports protected mode (Z-Wave network security mode) with AES-128 encryption,

• Advanced microprocessor control,

• Active power and energy metering functionality,

• Works with various types of switches: momentary, toggle, three-way, etc.

Technical Data:

• Power Source 100-240V~ 50/60 Hz

• Rated load current (resistive loads only): 8A for 240V~; 6.5A for 120V~

• Ambient temperature: 0 - 35oC,

• To be mounted in standard wall switch boxes Ø ≥ 50mm, depth ≥ 60mm,

• Radio protocol: Z-Wave Plus,

• Radio Frequency: 868.4 or 869.8 MHz EU; 908.4 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU;

• Antenna range: up to ca. 50 meters outdoors, or up to 40 meters indoors (depends on building structure),

• Outside dimmensions (L x W x H) 42.5 x 38.25 x 20.3 mm.
