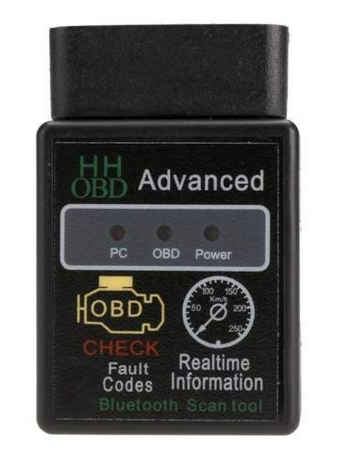

Bluetooth ELM327 Interface -OBD2 Diagnostic Car Scanner Tool

Η συσκευή δεν είναι συμβατή με συσκευές iOS λόγω της πολιτικής της Apple σχετικά με τις συσκευές Bluetooth Χαμηλής Ενέργειας. Οι συσκευές Android είναι συμβατές κανονικά.

• Housing Material: Plastic
• Color: Black
• Size: 4.4*2.5*7cm/1.7*1.0*2.7inch()

Specifications:

• Product Type: Code Readers and Scan Tools
• Sub-Type: Code Reader
• Compatibility: OBD2
• Vehicle Interface: 16 Pin
• Voltage:12V
• Model: ELM327
• External Testing Certification: CE
• Feature: Read diagnostic trouble codes
• Used to read and diagnose trouble code, clear trouble
• LED Indicator
• OBD2 protocols covered:
• SAE J1850PWM (41.6kbaud)
• SAE J1850VPW (10.4 kbaud)
• ISO9141-2(5 baud init, 10.4kbaud)
• ISO 14230-4 KWP (5baud init, 10.4kbaud)
• ISO 14230-4 KWP (fast init, 10.4kbaud)
• ISO15756-4 CAN (11 bit ID , 500kbaud)
• ISO15756-4 CAN (29 bit ID , 500kbaud)
• ISO15756-4 CAN (11 bit ID , 250kbaud)
• ISO15756-4 CAN (29 bit ID , 250kbaud)
• Analyze data in real time
• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Display current sensor data, including:
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• Support PC / Plam / Window phone / Android phone
• For Android user: Please download apps "Torque" from Android market.
• Install and pair between the bluetooth device and phone.
• It's Fashion, Creative, is a very useful accessory, also as a gift.
• Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you!
• Package Content: 1x HH OBD ELM327 Scanner Device; 1x CD driver
